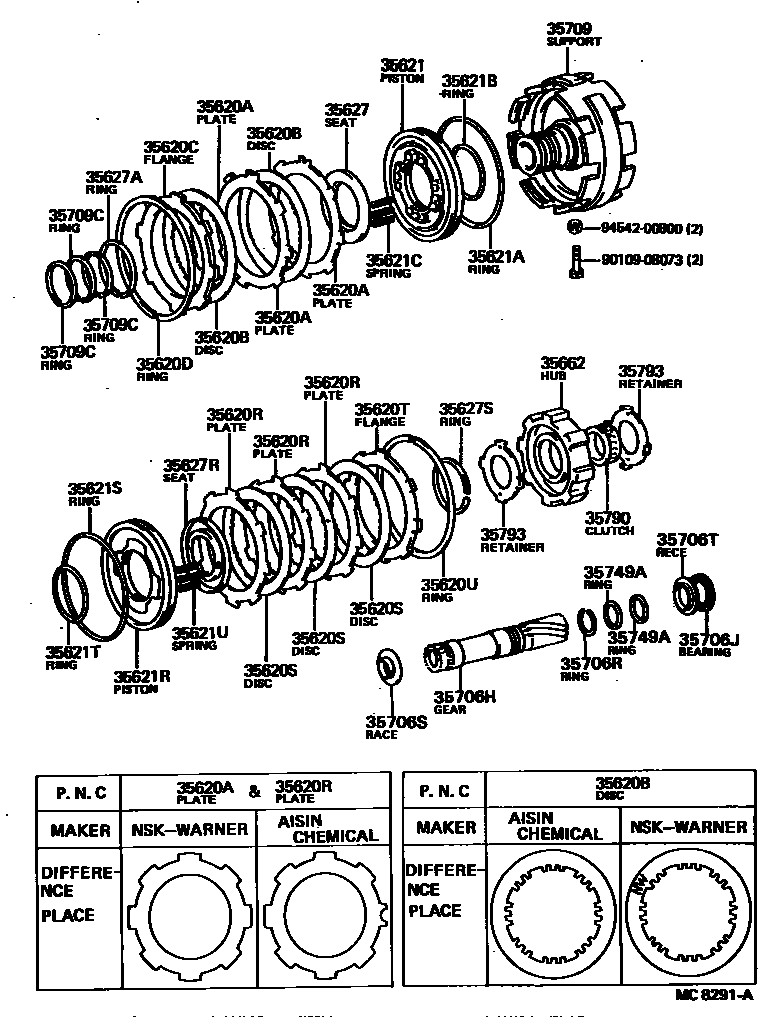

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

0001 1 0002 1

35620APLATE, CLUTCH (FOR BRAKE)

main35634-22060iGZ10,MZ1#..4FC198102-198203

NSK-WARNER

main35634-22090×3iGZ10,MZ11..4FC..GT198203-198307

35620BDISC, CLUTCH (FOR BRAKE)

main35677-22020iGZ10,MZ1#..4FC198102-198203

NSK-WARNER

main35677-22030iGZ10..4FC..(V1,V2,VR,VX)198102-198307

AISIN CHEMICAL

main35677-30030iGZ10,MZ10,11..4FC198307-198512

35620CFLANGE, CLUTCH (FOR BRAKE)

main35675-22010iGZ10,MZ10,11..4FC198102-198512

T=4.0

35620DRING (FOR BRAKE)

main90521-99139iGZ10,MZ10,11..4FC198102-198512

35620RPLATE, CLUTCH (FOR REAR BRAKE)

main35634-22060×3iGZ10..4FC..(V1,V2,VR,VX)198102-198512

NSK-WARNER

main35634-22090×3iGZ10..4FC..(V1,V2,VR,VX)198102-198307

AISIN CHEMICAL

main35648-22010×3iGZ10..4FC..GT198501-198512

T=3.0

main35648-30020×3iMZ10198501-198512

35620SDISC, CLUTCH (FOR REAR BRAKE)

main35677-22040×3iGZ10,MZ1#..4FC198102-198307

main35677-22060×3iGZ10..4FC..GT198501-198512

main35677-30020×3iGZ10,MZ11..4FC198401-198501

main35677-30050×3iMZ10198401-198512

35620TFLANGE, CLUTCH (FOR REAR BRAKE)

main34625-22010iMZ10,11..4FC;GZ10..4FC..GT198102-198512

main35675-22010iGZ10..4FC..(V1,V2,VR,VX)198102-198512

35620URING (FOR REAR BRAKE)

main90521-99139iGZ10,MZ10,11..4FC198102-198512

35621PISTON, BRAKE, NO.1

main35624-22010iGZ10,MZ10,11..4FC198102-198512

35621ARING, O (FOR BRAKE PISTON OUTER)

main90301-99192iGZ10,MZ10,11..4FC198102-198512

35621BRING, O (FOR BRAKE PISTON INNER)

main90301-57188iGZ10,MZ10,11..4FC198102-198512

35621CSPRING (FOR BRAKE PISTON RETURN)

main90501-10671×12iGZ10,MZ10,11..4FC198102-198512

35621RPISTON, BRAKE (FOR REAR BRAKE)

main35621-30010iGZ10,MZ10,11..4FC198102-198512

35621SRING (FOR REAR BRAKE PISTON OUTER)

main90301-99007iGZ10,MZ10,11..4FC198102-198512

35621TRING (FOR REAR BRAKE PISTON INNER)

main90301-57188iGZ10,MZ10,11..4FC198102-198512

35621USPRING (FOR REAR BRAKE PISTON RETURN)

main90501-10671×20iGZ10,MZ10,11..4FC198102-198512

35627SEAT, BRAKE RETURN SPRING

main35627-22010iGZ10,MZ10,11..4FC198102-198512

35627ARING, SHAFT SNAP (FOR BRAKE RETURN SPRING SEAT)

main90520-52262iGZ10,MZ10,11..4FC198102-198512

35627RSEAT, BRAKE RETURN SPPING (FOR REAR BRAKE)

main35627-22010iGZ10,MZ10,11..4FC198102-198512

35627SRING, SHAFT SNAP (FOR REAR BRAKE RETURN SPRING SEAT)

main90520-52262iGZ10,MZ10,11..4FC198102-198512

35662HUB, BRAKE

main35662-22011iGZ10..4FC198102-198512

main35662-30010iMZ10,11..4FC198102-198512

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-22011iGZ10..4FC198102-198512

main35706-30040iMZ1#..4FC198102-198401

main35706-30050iMZ10198401-198512

main35706-30060iMZ12..4FC198501-198512

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-21001iMZ10198401-198512

main90374-23012iGZ10,MZ1#..4FC198102-198401

main90374-30006iMZ12..4FC198501-198512

35706RRING, SHAFT SNAP (FOR PLANETARY SUN GEAR)

main90520-34001iMZ10,11..4FC198102-198512

main90520-34260iGZ10..4FC198102-198512

35706SRACE, THRUST BEARING (FOR PLANETARY SUN GEAR FRONT)

main35789-22030iGZ10,MZ10,11..4FC198102-198512

35706TRACE, THRUST BEARING (FOR PLANETARY SUN GEAR REAR)

main35789-22010iGZ10,MZ10,11..4FC198102-198512

35709SUPPORT SUB-ASSY, CENTER

main35709-12010iGZ10..4FC198102-198108

main35709-12011iGZ10..4FC..(V1,V2,VR,VX)198108-198512

main35709-30040iMZ1#..4FC198102-198108

main35709-30041iMZ1#..4FC198108-198203

main35709-30051iGZ10,MZ11..4FC..GT198203-198401

35709CRING, OIL SEAL (FOR CENTER SUPPORT)

main35617-16010×3iGZ10,MZ10,11..4FC198108-198512

main35617-22020×3iGZ10,MZ1#..4FC198102-198108

35749ARING, SUN GEAR SHAFT OIL SEAL

main35749-22010×2iGZ10..4FC198102-198401

main35749-30010×2iMZ1#..4FC198102-198401

35790CLUTCH ASSY, 1 WAY

main35790-30030iMZ12..4FC198501-198512

main35791-30020iGZ10,MZ10,11..4FC198102-198512

35793RETAINER, 1 WAY CLUTCH

main35793-22011×2iGZ10,MZ10,11..4FC198102-198512

9010908073

main90109-08073

9454200800

main94542-00800

33 parts on this diagram · 2 diagrams in section
