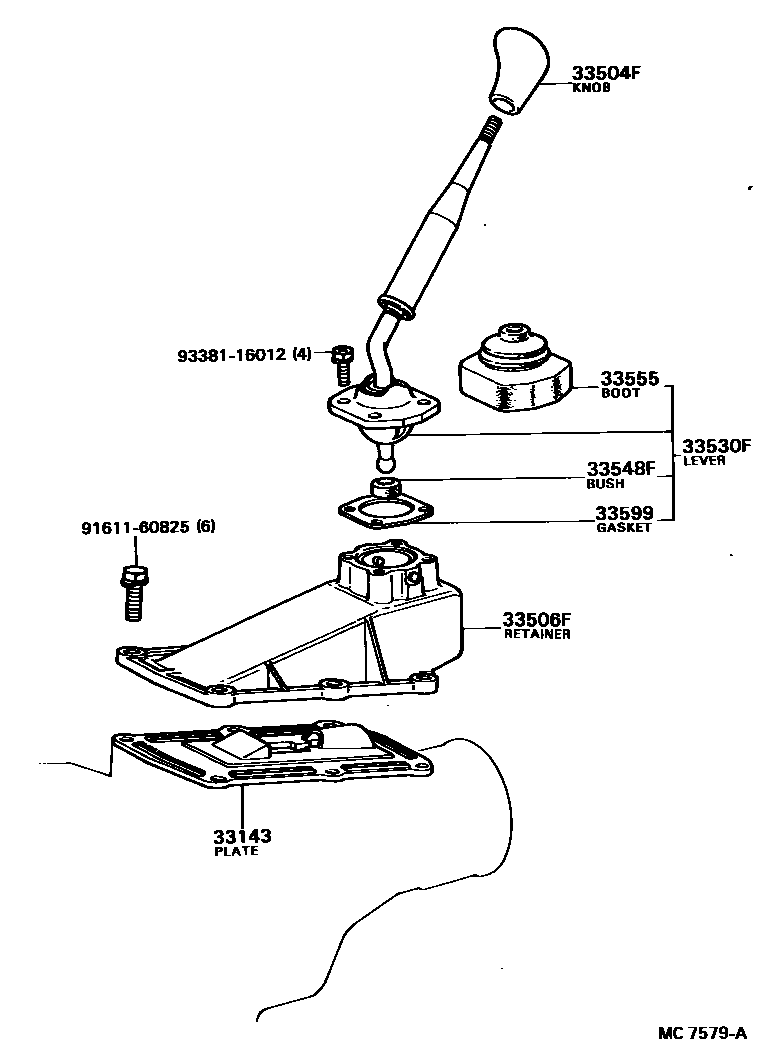

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33143PLATE, EXTENSION HOUSING OIL BAFFLE

main33143-22020iGZ10,MZ11,12..5F198102-198512

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-01iGZ10..5F..(V1,V2,VX)198102-198203

BLACK,BLACK,TRIM2#

main33504-24010-02iGZ10..5F..(V1,V2,VX)198102-198302

TERRACOTTA,RED/MAROON,TRIM3#

main33504-24010-03iGZ10..5F..(V2,VX)198203-198302

GRAY,GRAY,TRIM1#

main33504-24010-04iGZ10..5F..(V1,V2,VX)198102-198302

BLUE,BLUE,TRIM8#

main33504-24010-22iGZ10..5F..V2198302-198512

DEEP MAROON,RED/MAROON,TRIM3#

main33504-24020-01iGZ10,MZ11..5F..(GT,VR)198102-198203

LEATHER,BLACK,BLACK,TRIM2#

main33504-24020-02iGZ10,MZ11..5F..(GT,VR)198102-198302

LEATHER,TERRACOTTA,RED/MAROON,TRIM3#

main33504-24020-03iGZ10,MZ11..5F..(GT,VR)198203-198302

LEATHER,GRAY,GRAY,TRIM1#

main33504-24020-04iGZ10,MZ11..5F..(GT,VR)198102-198302

LEATHER,BLUE,BLUE,TRIM8#

main33504-24020-05iGZ10,MZ11,12..5F..(GT,GTL,VR,VX)198302-198512

LEATHER,BEIGE,BEIGE,TRIM4#

main33504-24020-12iGZ10,MZ11,12..5F..(GT,GTL,VR,VX)198302-198512

LEATHER,DEEP MAROON,RED/MAROON,TRIM3#

main33542-24030-01iGZ10,MZ1#..4FC198102-198203

BLACK,BLACK,TRIM2#

main33542-24030-02iGZ10,MZ1#..4FC198102-198302

TERRACOTTA,RED/MAROON,TRIM3#

main33542-24030-03iGZ10,MZ1#..4FC198203-198302

GRAY,GRAY,TRIM1#

main33542-24030-04iGZ10,MZ1#..4FC198102-198401

BLUE,BLUE,TRIM8#

main33542-24030-15iGZ10,MZ1#..4FC198302-198401

BEIGE,BEIGE,TRIM4#

main33542-24030-22iGZ10,MZ1#..4FC198302-198401

DEEP MAROON,RED/MAROON,TRIM3#

main33542-30130-02iGZ10,MZ1#..4FC198401-198512

DEEP MAROON,RED/MAROON,TRIM3#

main33542-30130-04iGZ10,MZ1#..4FC198401-198512

BLUE,BLUE,TRIM8#

main33542-30130-05iGZ10,MZ1#..4FC198401-198512

BEIGE,BEIGE,TRIM4#

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33570-22070iGZ10,MZ11,12..5F198102-198512

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33503-24010iGZ10,MZ1#..4FC198102-198401

main33503-24020iGZ10,MZ1#..4FC198401-198512

main33530-24012iGZ10,MZ11,12..5F198102-198512

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-31010iGZ10,MZ11,12..5F198102-198512

33555BOOT, SHIFT LEVER

main33555-22050iGZ10,MZ11,12..5F198102-198512

main33555-24010iGZ10,MZ1#..4FC198102-198401

main33555-24030iGZ10,MZ1#..4FC198401-198512

33599GASKET, CONTROL SHIFT LEVER RETAINER, NO.2

main33584-22020iGZ10,MZ11,12..5F198102-198512

9161160825

main91611-60825

9338116012

main93381-16012

9 parts on this diagram · 3 diagrams in section
