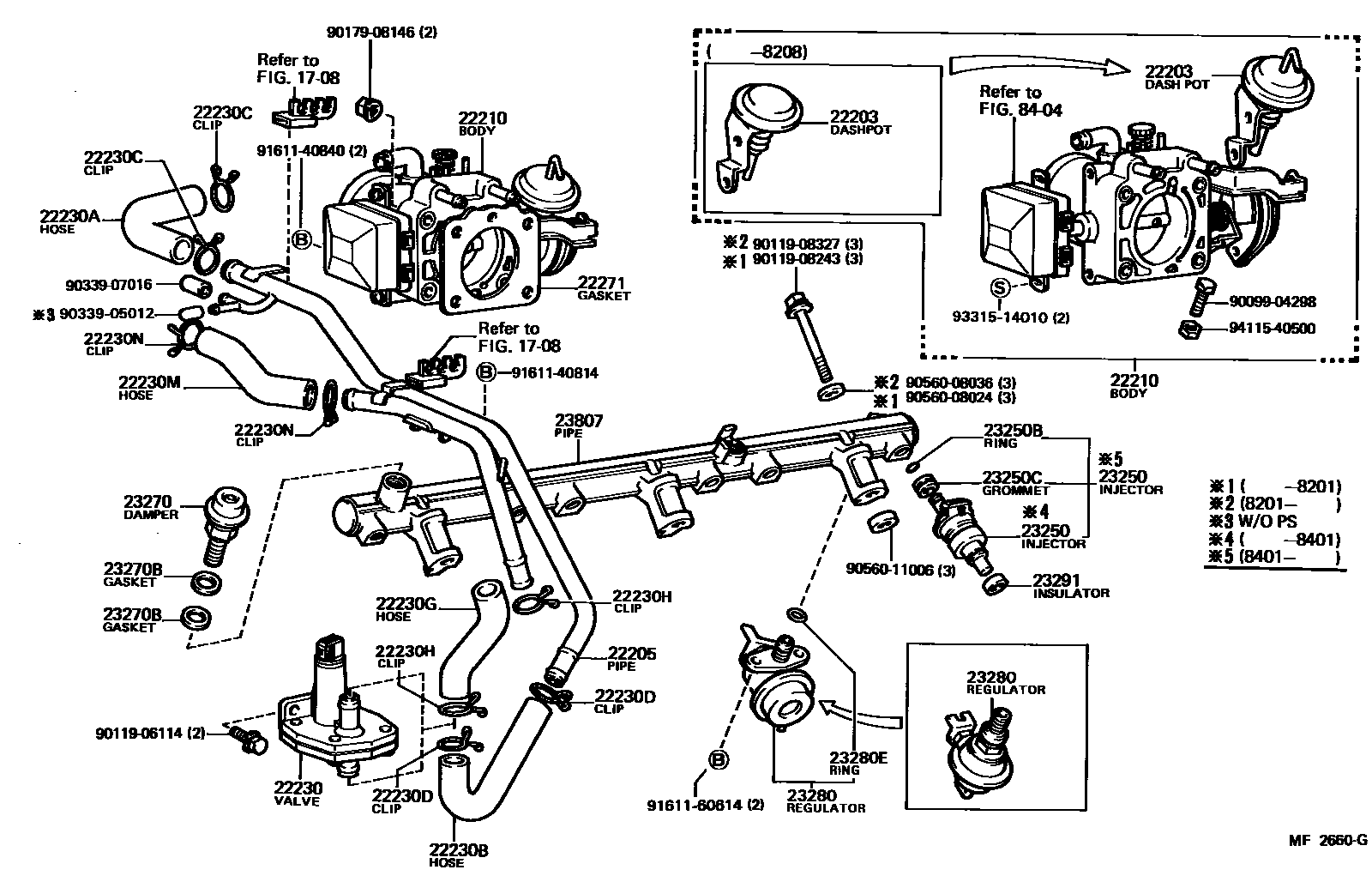

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1 0014 1 0016 1 0017 1 0018 1 0019 1 0020 1 0021 1

1708

22203DASH POT SUB-ASSY(FOR THROTTLE BODY)

main22203-41020iMTEU..MZ10198107-198108

sub22203-70010

main22203-41040iMTEU..MZ10198108-198302

main22203-43010i5MGEU,6MGEU..MZ11,12..4FC198102-198512

main22203-43020i5MGEU,6MGEU..MZ11,12..5F198302-198512

main22203-70010i1GEU..GZ10198102-198208

main22203-70011i1GEU..GZ10198208-198312

main22203-70020i1GGEU..GZ10198501-198512

main22203-70030i1GEU..GZ10198312-198512

22205PIPE SUB-ASSY, AUXILIARY AIR

main22205-70020i1GEU..GZ10198102-198501

22210BODY ASSY, THROTTLE

main22210-41221iMTEU..MZ10198107-198108

main22210-41222iMTEU..MZ10198108-198302

main22210-41230iMTEU..MZ10198302-198512

main22210-42010i6MGEU..MZ12..5F198501-198512

main22210-42020i6MGEU..MZ12..4FC198501-198512

main22210-43070i5MGEU..MZ11198102-198107

sub22210-43130

sub90339-03005

sub90464-00270

sub95411-19960

main22210-43120i5MGEU..MZ11..4FC198203-198401

main22210-43130i5MGEU..MZ11198107-198111

sub22210-43131

sub88689-24021

main22210-43131i5MGEU..MZ11..5F198111-198302

main22210-43180i5MGEU..MZ11..5F198302-198501

main22210-43190i5MGEU..MZ11..4FC198401-198501

main22210-70010i1GEU..GZ10198102-198208

main22210-70011i1GEU..GZ10198208-198402

sub22210-70012

main22210-70012i1GEU..GZ10198402-198501

main22210-70040i1GGEU..GZ10..5F198302-198306

main22210-70051i1GGEU..GZ10..4FC198302-198501

main22210-70080i1GEU..GZ10198501-198512

main22210-70110i1GGEU..GZ10..5F198501-198512

main22210-70130i1GGEU..GZ10..4FC198501-198512

22230VALVE ASSY, AUXILIARY AIR

main22230-41050iMTEU..MZ10198107-198302

main22230-41060iMTEU..MZ10198302-198512

main22230-43010i5MGEU..MZ11198102-198302

main22230-70010i1GEU..GZ10198102-198207

sub22230-70011

main22230-70011i1GEU..GZ10198207-198302

main22230-70021i1GEU..GZ10198302-198501

main22230-70040i1GEU..GZ10198501-198512

22230AHOSE, AUXILIARY AIR VALVE, NO.1

main17341-43030i5MGEU..MZ11198102-198302

main17343-41030iMTEU..MZ10198107-198512

main22233-70020i1GEU..GZ10198102-198501

22230BHOSE, AUXILIARY AIR VALVE, NO.2

main17342-43020i5MGEU..MZ11..5F198102-198302

main17344-41010iMTEU..MZ10198107-198512

main22234-70010i1GEU..GZ10198102-198501

22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1

main90467-20002i1GEU..GZ10198108-198501

main90467-21001i5MGEU..MZ11198104-198302

OD=20.8

sub90467-21006

main90467-21152iMTEU..MZ10198102-198512

main90467-23003i5MGEU..MZ11198102-198104

sub96134-42300

main90467-23003i5MGEU..MZ11198104-198302

OD=23.0

sub96134-42300

22230DCLIP, AUXILIARY AIR VALVE HOSE, NO.2

main90467-20002i1GEU..GZ10198108-198501

main90467-21152iMTEU..MZ10198102-198512

main90467-23003i5MGEU..MZ11..5F198102-198302

sub96134-42300

22230GHOSE, AUXILIARY AIR VALVE, NO.3

main17342-41030iMTEU..MZ10198302-198512

main22237-70010i1GEU..GZ10198102-198501

22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3

main90467-16035iMTEU..MZ10198302-198512

main90467-20002i1GEU..GZ10198108-198501

main90467-21152i1GEU..GZ10198102-198108

22230MHOSE, AUXILIARY AIR VALVE, NO.4

main22237-70010i1GEU..GZ10198102-198501

22230NCLIP, AUXILIARY AIR VALVE, NO.4

main90467-20002i1GEU..GZ10198108-198501

main90467-21152i1GEU..GZ10198102-198108

22271GASKET, THROTTLE BODY

main22271-41030iMTEU..MZ10198107-198512

main22271-43010i5MGEU,6MGEU..MZ11,12198102-198512

sub22271-43030

main22271-70010i1GEU..GZ10198102-198512

main22271-88300i1GGEU..GZ10198302-198501

main22271-88301i1GGEU..GZ10198501-198512

23250INJECTOR ASSY, FUEL

main23209-45011i1GGEU..GZ10198401-198512

sub23209-43010

main23209-70010i1GEU..GZ10198401-198512

sub23209-13010

main23209-70020i1GGEU..GZ10198501-198512

main23250-45011i5MGEU,MTEU..MZ1#198102-198401

main23250-70010i1GEU..GZ10198102-198401

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001i1G#..GZ10198102-198512

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005i1G#..GZ10198102-198512

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-43010i5MGEU,6MGEU..MZ11,12198302-198512

main23270-52011i1GGEU..GZ10198302-198512

sub23207-16020

main23270-70010i1GEU..GZ10198102-198512

23270BGASKET(FOR PULSATION DAMPER HOSE)

main23232-28010i1GGEU..GZ10198302-198512

DAMPER SIDE

sub23232-41081

main90430-12005i1GGEU..GZ10198302-198512

DELIVERY PIPE SIDE

main90430-14002i1GEU..GZ10198102-198512

DELIVERY PIPE SIDE

main90430-17002i5MGEU,6MGEU,MTEU..MZ1#198102-198512

ID=17.3

23280REGULATOR ASSY, FUEL PRESSURE

main23280-41030iMTEU..MZ10198107-198512

main23280-43010i5MGEU..MZ11198102-198302

main23280-43020i5MGEU,6MGEU..MZ11,12198302-198512

main23280-70010i1GEU..GZ10198102-198108

main23280-70020i1GEU..GZ10198108-198512

main23280-70030i1GGEU..GZ10198302-198512

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i1GEU..GZ10198108-198512

23291INSULATOR, INJECTOR VIBRATION

main23291-41010i1G#..GZ10198102-198512

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-45020iMTEU..MZ10198107-198512

main23807-70010i1GEU..GZ10198102-198108

main23807-70020i1GEU..GZ10198108-198512

main23807-88300i1GGEU..GZ10198302-198512

main23814-43010i5MGEU..MZ11198102-198302

main23814-43020i5MGEU,6MGEU..MZ11,12198302-198512

8404

9009904298

main90099-04298

9011906114

main90119-06114

9011908243

main90119-08243

9011908327

main90119-08327

9017908146

main90179-08146

9033905012

main90339-05012

9033907016

main90339-07016

9056008024

main90560-08024

9056008036

main90560-08036

9056011006

main90560-11006

9161140814

main91611-40814

9161140840

main91611-40840

9161160614

main91611-60614

9331514010

main93315-14010

9411540500

main94115-40500

39 parts on this diagram · 20 diagrams in section
