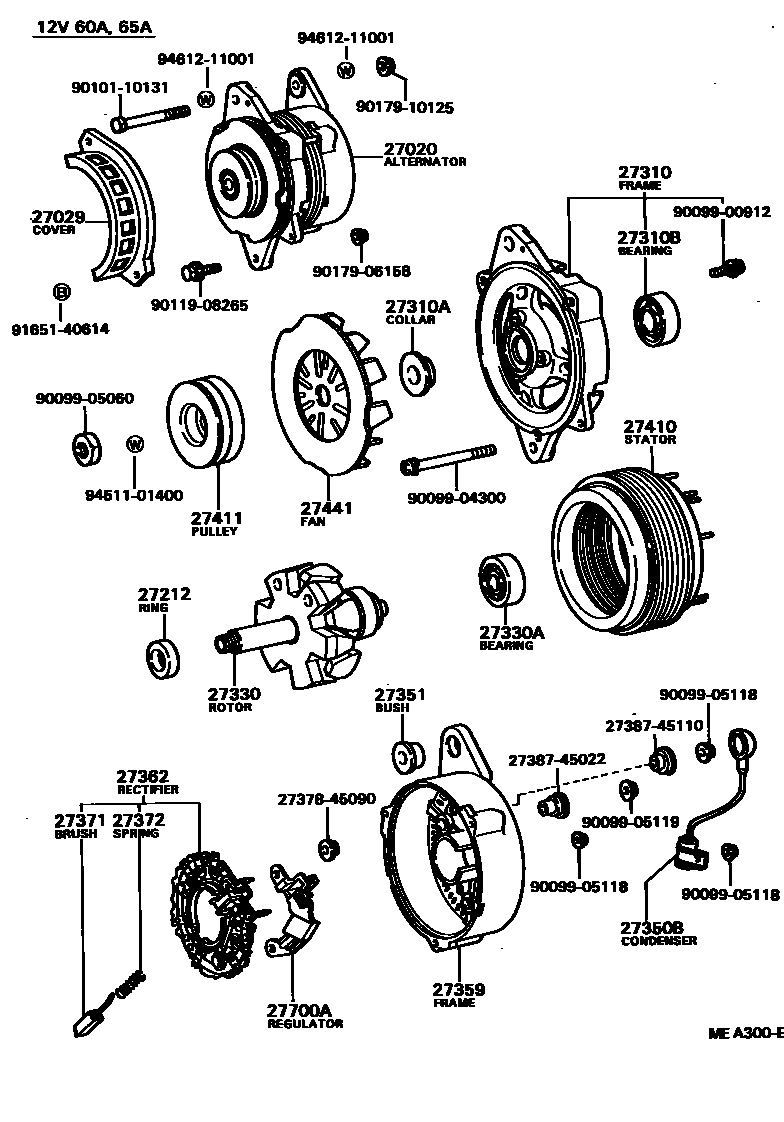

ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0006 1

27020ALTERNATOR ASSY

main27060-43020i5MGEU..MZ11198102-198104

main27060-43030iMTEU..MZ10198302-198308

main27060-43050i6MGEU..MZ12..GT;6MGEU..MZ12..5F..GTL198501-198512

12V 70A

main27060-43060iMTEU..MZ10198308-198512

main27060-43100i6MGEU..MZ12..4FC..GTL198501-198512

12V 80A

main27060-70030i1GEU..GZ10198102-198106

12V 60A

main27060-70040i1GEU..GZ10198106-198308

main27060-70070i1GGEU..GZ10198302-198512

main27060-70080i1GEU..GZ10198308-198512

27029COVER, ALTERNATOR

main27029-70010i1GEU..GZ10198102-198308

12V 60A,65A

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27412-45070i1GEU,5MGEU,MTEU..GZ10,MZ1#198102-198302

12V 60A,65A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-43040iMTEU..MZ10198302-198308

12V 65A

main27310-43050i5MGEU..MZ11..4FC198401-198501

12V 70A

main27310-43051i6MGEU..MZ12..GT;6MGEU..MZ12..5F..GTL198502-198512

12V 70A

main27310-43100iMTEU..MZ10198502-198512

12V 60A

main27310-43110i6MGEU..MZ12..4FC..GTL198501-198512

12V 80A

main27310-61070i5MGEU..MZ11198102-198104

12V 60A

main27310-70030i1GEU..GZ10198102-198308

12V 60A,65A

main27310-70070i1GGEU..GZ10198302-198502

12V 60A

main27310-70071i1GGEU..GZ10198502-198512

12V 60A

main27310-70080i1GEU..GZ10198308-198502

12V 60A

main27310-70081i1GEU..GZ10198502-198512

12V 60A

main27310-72010iMTEU..MZ10198308-198309

12V 60A

main27310-72050iMTEU..MZ10198309-198408

12V 60A

main27310-72090iMTEU..MZ10198408-198502

12V 60A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-31040i1GEU,5MGEU,MTEU..GZ10,MZ1#198102-198302

12V 60A,65A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10125i1GEU,5MGEU,MTEU..GZ10,MZ1#198102-198302

12V 60A,65A

main90099-10141i1GGEU,5MGEU..GZ10,MZ11198302-198308

12V 60A,70A

main90099-10152i1G#,5MGEU,MTEU..GZ10,MZ1#198309-198408

12V 60A,70A

main90099-10156i6MGEU..MZ12..5F..GTL;1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#..GT,TBO,V2,VR,VX198408-198502

12V 60A,70A

main90099-10159i6MGEU..MZ12..5F..GTL;1G#,6MGEU,MTEU..GZ10,MZ1#..GT,TBO,V2,VR,VX198502-198512

12V 60A,70A

main90099-10160i6MGEU..MZ12..4FC..GTL198501-198512

12V 80A

27330ROTOR ASSY, ALTERNATOR

main27330-15070i1GEU,5MGEU..GZ10,MZ11198102-198104

12V 60A

main27330-43040i1GEU..GZ10198106-198308

12V 65A

main27330-43110i6MGEU..MZ12..4FC..GTL198501-198512

12V 80A

main27330-63020i1GGEU,5MGEU..GZ10,MZ11198302-198303

12V 60A,70A

main27330-63021i6MGEU..MZ12..5F..GTL;1GGEU,5MGEU,6MGEU..GZ10,MZ11,12..GT198303-198502

12V 60A,70A

main27330-72100i6MGEU..MZ12..5F..GTL;1G#,6MGEU,MTEU..GZ10,MZ1#..GT,TBO,V2,VR,VX198502-198512

12V 60A,70A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10116i1GEU,MTEU..GZ10,MZ10198302-198308

12V 65A

main90099-10140i1GGEU,5MGEU..GZ10,MZ11198302-198308

12V 60A,70A

27350BCONDENSER, ALTERNATOR

main90099-52065i1GEU,5MGEU,MTEU..GZ10,MZ1#198102-198302

12V 60A,65A

main90099-52085i6MGEU..MZ12..4FC..GTL198501-198512

12V 80A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-38051i5MGEU,MTEU..MZ1#198102-198302

12V 60A,65A

main27351-70010i1GEU..GZ10198102-198512

12V 60A,65A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16010i5MGEU..MZ11198302-198404

12V 70A

main27359-43020i5MGEU,MTEU..MZ1#198102-198302

12V 60A,65A

main27359-43050i6MGEU..MZ12..5F..GTL;5MGEU,6MGEU,MTEU..MZ1#..GT,TBO198404-198512

12V 60A,70A

main27359-43110i6MGEU..MZ12..4FC..GTL198501-198512

12V 80A

main27359-63020i1GGEU..GZ10198302-198404

12V 60A

main27359-63021i1GGEU..GZ10198404-198512

12V 60A

main27359-70030i1GEU..GZ10198102-198308

12V 60A,65A

main27359-70080i1GEU..GZ10198308-198404

12V 60A

main27359-70081i1GEU..GZ10198404-198512

12V 60A

27362RECTIFIER ASSY, W/BRUSH

main27362-43040i1GEU,5MGEU,MTEU..GZ10,MZ1#198102-198302

12V 60A,65A

27371BRUSH, ALTERNATOR

main27371-31011×2i1GEU,5MGEU,MTEU..GZ10,MZ1#198102-198302

12V 60A,65A

main27371-63020×2i1GGEU,5MGEU..GZ10,MZ11198302-198308

12V 60A,70A

27372SPRING, ALTERNATOR BRUSH

main27372-31011×2i1GEU,5MGEU,MTEU..GZ10,MZ1#198102-198302

12V 60A,65A

main27372-63020×2i1GGEU,5MGEU..GZ10,MZ11198302-198308

12V 60A,70A

main27372-72100×2i1G#,6MGEU,MTEU..GZ10,MZ1#198502-198512

12V 60A,70A,80A

27410STATOR ASSY, ALTERNATOR

main27410-43040i5MGEU,MTEU..MZ1#198104-198302

12V 65A

main27410-45120i1GEU,5MGEU..GZ10,MZ11198102-198104

12V 60A

27411PULLEY, ALTERNATOR

main27411-41071i5MGEU,MTEU..MZ1#198102-198302

12V 60A,65A

main27411-43050i6MGEU..MZ12..5F..GTL;5MGEU,6MGEU..MZ11,12..GT198302-198502

12V 60A,70A

main27411-43110i6MGEU..MZ12..4FC..GTL198501-198512

12V 80A

main27411-43120i6MGEU..MZ12..5F..GTL;6MGEU,MTEU..MZ1#..GT,TBO198502-198512

12V 60A,70A

main27411-45010i1GEU..GZ10198102-198308

12V 60A,65A

main27411-70051i1GGEU..GZ10198302-198502

12V 60A

main27411-70052i1GGEU..GZ10198502-198512

12V 60A

main27411-70090i1GEU..GZ10198308-198502

12V 60A

main27411-70091i1GEU..GZ10198502-198512

12V 60A

27441FAN, ALTERNATOR

main27441-44050i5MGEU,MTEU..MZ1#198104-198302

12V 65A

main27441-45110i1GEU,5MGEU..GZ10,MZ11198102-198104

12V 60A

main27441-70040i1GEU..GZ10198106-198308

12V 65A

27700AREGULATOR ASSY, GENERATOR

main27700-43010i1GEU,MTEU..GZ10,MZ10198302-198308

12V 65A

main27700-63020i1GGEU,5MGEU..GZ10,MZ11198302-198304

12V 60A,70A

main27700-63021i1GGEU,5MGEU..GZ10,MZ11198304-198308

12V 60A,70A

2737845090INSULATOR, ALTERNATOR, NO.1

main27378-45090

2738745022INSULATOR, TERMINAL

main27387-45022

2738745110INSULATOR, TERMINAL

main27387-45110

9009900912

main90099-00912

9009904300

main90099-04300

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010110131

main90101-10131

9011908265

main90119-08265

9017906158

main90179-06158

9017910125

main90179-10125

9165140614

main91651-40614

9451101400

main94511-01400

9461211001

main94612-11001

33 parts on this diagram · 5 diagrams in section
