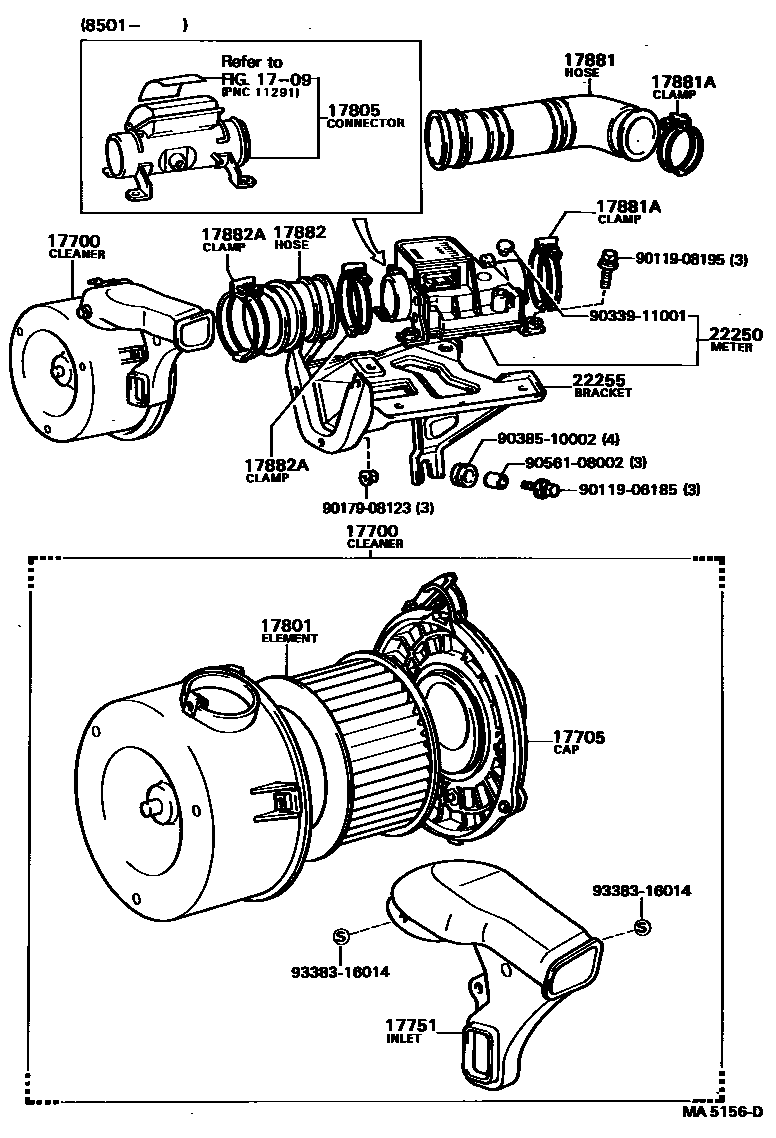

AIR CLEANER
1709
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17751INLET, AIR CLEANER, NO.1
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17805CONNECTOR SUB-ASSY, INTAKE AIR
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
TURBO SIDE
INTER COOLER SIDE
ID=75
CONNECTOR SIDE
THROTTLE BODY SIDE
AIR FLOW METER SIDE
PIPE SIDE
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
COMPRESSOR INNER SIDE,ID=71
AIR FLOW METER SIDE,ID=80
PIPE SIDE
AIR CLEANER SIDE
AIR FLOW METER SIDE
22250METER ASSY, INTAKE AIR FLOW
22255BRACKET, AIR FLOW METER
NO.1
NO.2
9011906185
main90119-06185
9011908195
main90119-08195
9017908123
main90179-08123
9033911001
main90339-11001
9038510002
main90385-10002
9056108002
main90561-08002
9338316014
main93383-16014
19 parts on this diagram · 5 diagrams in section
