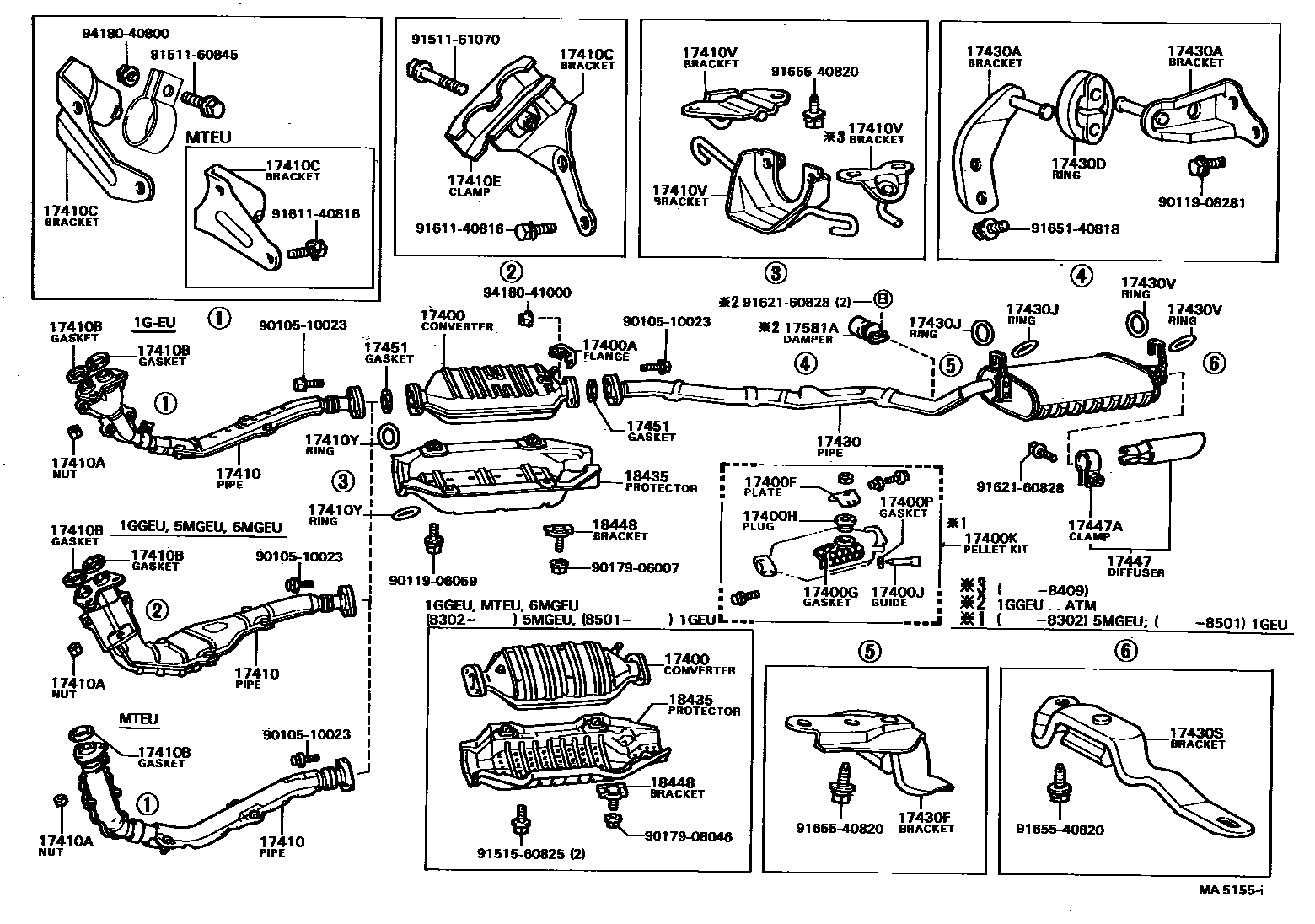

EXHAUST PIPE

17400CONVERTER ASSY, W/CATALYST

main17400-41040i1GEU,5MGEU..GZ10,MZ11198102-198302

main18450-41010iMTEU..MZ10198107-198110

main18450-41011iMTEU..MZ10198110-198302

main18450-41020iMTEU..MZ10198302-198512

main18450-42010i6MGEU..MZ12198501-198512

main18450-43020i5MGEU..MZ11198302-198501

main18450-70011i1GGEU..GZ10198302-198512

main18450-70040i1GEU..GZ10198501-198512

17400AFLANGE, THERMOSENSER INLET

main18491-41010iMTEU..MZ10198107-198302

main18491-63010i1GGEU,5MGEU,6MGEU,MTEU..GZ10,MZ1#198302-198512

main18491-70010i1GEU..GZ10198302-198501

17400FPLATE, CATALYZER INLET PLUG LOCK

main18493-38011i1GEU..GZ10198302-198501

17400GGASKET, CATALYZER INLET

main18494-38010i1GEU,5MGEU..GZ10,MZ11198102-198302

17400HPLUG, W/HEAD STRAIGHT SCREW(FOR CATALYZER INLET)

main90341-24093i1GEU,5MGEU..GZ10,MZ11198102-198302

17400JGUIDE, CATALYTIC CONVERTER SENSOR

main18492-38031i1GEU,5MGEU..GZ10,MZ11198102-198212

main18492-45010i1GEU,5MGEU..GZ10,MZ11198212-198302

17400KPELLET KIT

main04181-41030i1GEU,5MGEU..GZ10,MZ11198102-198302

17400PGASKET(FOR CATALYTIC CONVERTER SENSOR GUIDE)

main90430-08252i1GEU..GZ10198302-198501

17410PIPE ASSY, EXHAUST, FRONT

main17410-41300iMTEU..MZ10198107-198302

main17410-41340iMTEU..MZ10198302-198512

main17410-43070i5MGEU..MZ11198102-198302

main17410-43180i1GGEU..GZ10..4FC; 6MGEU..MZ12198501-198512

main17410-70020i1GEU..GZ10198102-198501

main17410-70060i5MGEU..MZ11;1GGEU..GZ10..5F198302-198512

main17410-70100i1GGEU..GZ10..4FC198302-198501

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90170-10070×3i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198402-198512

main90179-10028×3i1G#,5MGEU,MTEU..GZ10,MZ1#198102-198402

17410BGASKET, EXHAUST PIPE

main90917-06004×2i1G#,5MGEU,6MGEU..GZ10,MZ11,12198102-198512

main90917-06005iMTEU..MZ10198107-198512

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-41080i5MGEU..MZ11198102-198501

main17571-41090iMTEU..MZ10198107-198302

main17571-41100iMTEU..MZ10198302-198401

main17571-70020i1GEU..GZ10198102-198501

main17571-70030i1GGEU..GZ10198302-198512

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main90917-04030i1GGEU,5MGEU,6MGEU..GZ10,MZ11,12198108-198512

main90917-04037i5MGEU..MZ11198102-198108

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17503-41050iMTEU..MZ10198107-198302

CCO SUPPORT

main17503-70020i1GEU,5MGEU..GZ10,MZ11198102-198302

CCO SUPPORT

main17503-70050i1GGEU,5MGEU,6MGEU,MTEU..GZ10,MZ1#198302-198512

CCO SUPPORT

main17504-70010i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

SIDE MEMBER

main17505-70020i1G#,5MGEU,MTEU..GZ10,MZ1#198102-198409

ENGINE REAR SUPPORT MEMBER

17410YBOLT OR RING, EXHAUST PIPE FRONT (FOR REAR)

main90301-36001×2i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

17430PIPE ASSY, EXHAUST, TAIL

main17430-42040i6MGEU..MZ12198501-198512

main17430-70030i1GEU,5MGEU,MTEU..GZ10,MZ1#198102-198302

main17430-70150i1GGEU,5MGEU,MTEU..GZ10,MZ1#198302-198501

main17430-70151i1G#,MTEU..GZ10,MZ10198501-198512

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17506-28010i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

UPR

main17509-28010i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

LWR

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main17565-15010i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

17430FBRACKET, EXHAUST TAILPIPE(FOR CENTER)

main17507-28010i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

17430JBOLT OR RING, EXHAUST TAILPIPE(FOR CENTER)

main90301-36001×2i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17508-70020i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-36001×2i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

17447DIFFUSER, EXHAUST GAS

main17406-70010i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

17447ACLAMP(FOR EXHAUST GAS DIFFUSER SETTING)

main90461-20006i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

17451GASKET, EXHAUST PIPE

main90917-06012i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

RR

main90917-06023i1G#,5MGEU,6MGEU,MTEU..GZ10,MZ1#198102-198512

FR

17581ADAMPER, EXHAUST PIPE

main17581-70010i1GGEU..GZ10..4FC198302-198512

18435PROTECTOR, CATALYTIC CONVERTER

main18407-28011i1GGEU,5MGEU,6MGEU,MTEU..GZ10,MZ1#198302-198512

main18407-41020i1GEU,5MGEU..GZ10,MZ11198102-198302

main18407-43010iMTEU..MZ10198107-198302

18448BRACKET, CONVERTER PROTECTOR, CENTER

main18448-26020×2i1GEU,5MGEU..GZ10,MZ11198102-198302

main18448-43010×2i1GEU..GZ10198501-198512

9010510023

main90105-10023

9011906059

main90119-06059

9011908281

main90119-08281

9017906007

main90179-06007

9017908046

main90179-08046

9151160845

main91511-60845

9151161070

main91511-61070

9151560825

main91515-60825

9161140816

main91611-40816

9162160828

main91621-60828

9165140818

main91651-40818

9165540820

main91655-40820

9418040800

main94180-40800

9418041000

main94180-41000

42 parts on this diagram · 1 diagram in section
