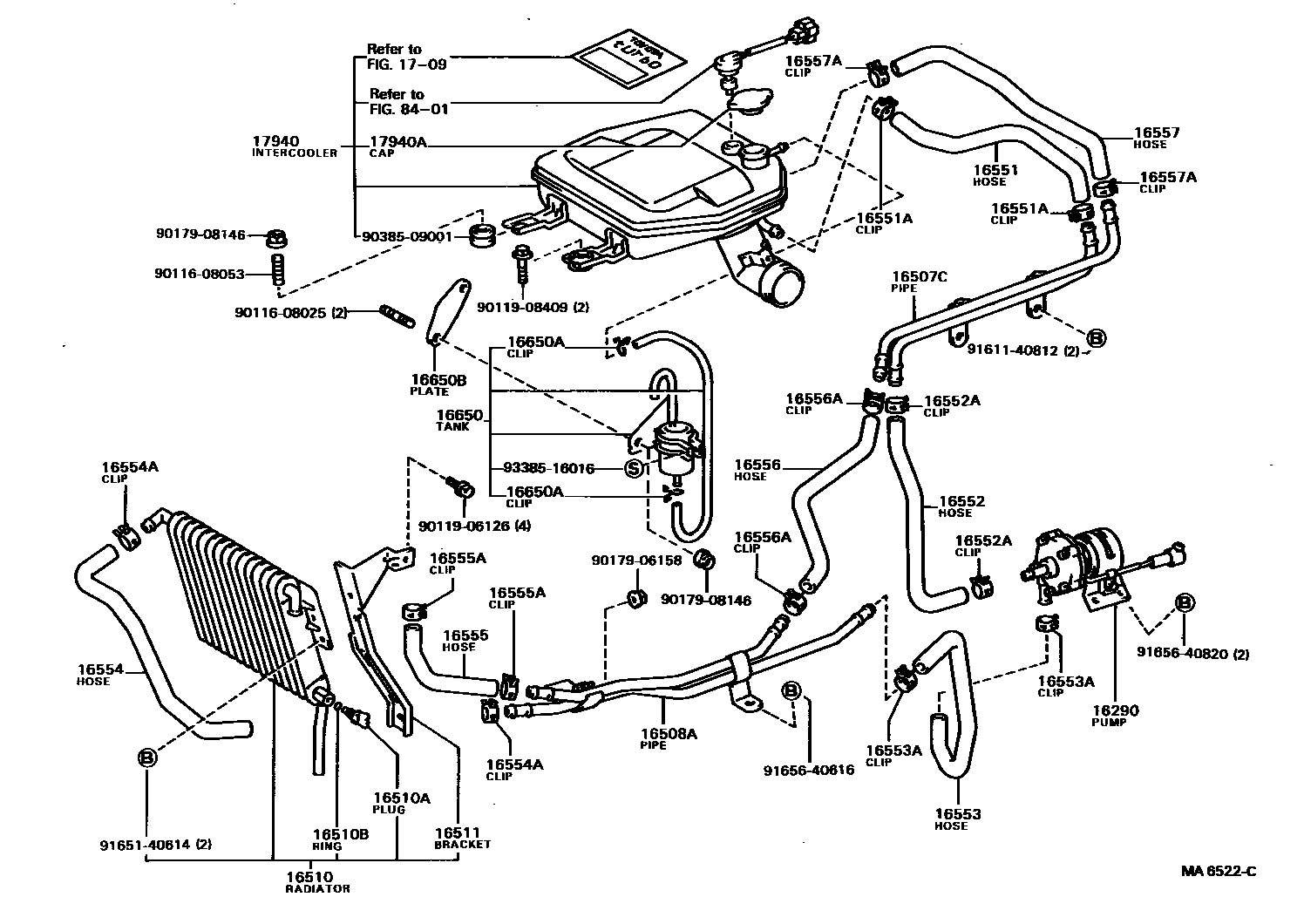

INTERCOOLER & SUB RADIATOR
16290PUMP ASSY, WATER W/MOTOR & BRACKET
16507CPIPE SUB-ASSY, SUB-RADIATOR, NO.1
16508APIPE SUB-ASSY, SUB-RADIATOR, NO.2
16510SUB-RADIATOR ASSY
16510APLUG, DRAIN COCK(FOR SUB-RADIATOR)
16510BRING, O(FOR SUB-RADIATOR DRAIN COCK PLUG)
16511BRACKET, SUB-RADIATOR
16551HOSE, SUB-RADIATOR, NO.1
16551ACLIP, SUB-RADIATOR HOSE, NO.1
16552HOSE, SUB-RADIATOR, NO.2
16552ACLIP, SUB-RADIATOR HOSE, NO.2
16553HOSE, SUB-RADIATOR, NO.3
16553ACLIP, SUB-RADIATOR HOSE, NO.3
16554HOSE, SUB-RADIATOR, NO.4
16554ACLIP, SUB-RADIATOR HOSE, NO.4
16555HOSE, SUB-RADIATOR, NO.5
16555ACLIP, SUB-RADIATOR HOSE, NO.5
16556HOSE, SUB-RADIATOR, NO.6
16556ACLIP, SUB-RADIATOR HOSE, NO.6
16557HOSE, SUB-RADIATOR, NO.7
16557ACLIP, SUB-RADIATOR HOSE, NO.7
16650TANK ASSY, RESERVE(FOR INTERCOOLER)
16650ACLIP(FOR INTERCOOLER RESERVE TANK)
16650BPLATE, RESERVE TANK BRACKET
1709CAUTION PLATE & NAME PLATE (ENGINE)
17940INTERCOOLER ASSY
17940ACAP SUB-ASSY, INTERCOOLER
8401SWITCH & RELAY & COMPUTER
9011608025
main90116-08025
9011608053
main90116-08053
9011906126
main90119-06126
9011908409
main90119-08409
9017906158
main90179-06158
9017908146
main90179-08146
9038509001
main90385-09001
9161140812
main91611-40812
9165140614
main91651-40614
9165640616
main91656-40616
9165640820
main91656-40820
9338516016
main93385-16016
40 parts on this diagram · 1 diagram in section
