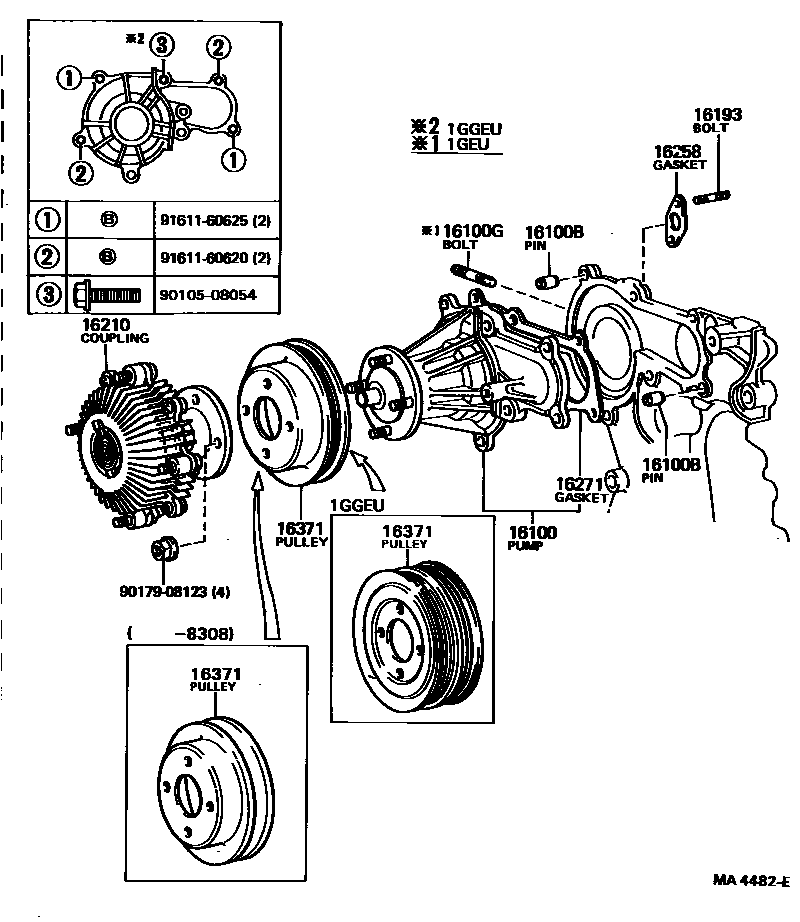

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-49615iMTEU..MZ10198107-198302

main16100-49655i5MGEU,6MGEU..MZ11,12198102-198512

main16100-49675iMTEU..MZ10198302-198308

main16100-49695iMTEU..MZ10198308-198512

main16100-79015i1GEU..GZ10198102-198512

main16100-79025i1GGEU..GZ10198302-198512

16100BPIN, RING(FOR WATER PUMP SET)

main16185-70010×2i1G#..GZ10; 5MGEU,6MGEU..MZ11,12198102-198512

16100GBOLT, STUD(FOR WATER PUMP SET)

main16194-70010×2i1GEU..GZ10198102-198512

main90116-08111iMTEU..MZ10198107-198512

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010×2i1G#..GZ10198102-198512

main16193-33030×5iMTEU..MZ10198107-198302

L=20.5,S=7&9

main16193-41031iMTEU..MZ10198107-198512

L=42.0,S=16&20

main16193-45100×5iMTEU..MZ10198302-198512

16210COUPLING ASSY, FLUID

main16210-41170iMTEU..MZ10198302-198512

main16210-45100i5MGEU..MZ11198102-198501

main16210-45110i1GGEU..GZ10; 6MGEU..MZ12198302-198512

main16210-70020i1GEU..GZ10198102-198408

main16210-70021i1GEU..GZ10198408-198506

main16210-70022i1GEU..GZ10198506-198512

16258GASKET(FOR HEATER RETURN)

main16258-15010i1GEU..GZ10198102-198112

main16258-15011i1G#..GZ10198112-198512

16271GASKET, WATER PUMP

main16124-70010i1GEU..GZ10198102-198512

main16124-88300i1GGEU..GZ10198302-198512

main16271-41011iMTEU..MZ10198107-198512

16371PULLEY, FAN

main16173-43030i5MGEU..MZ11198302-198308

NO.1

main16173-43040i5MGEU,6MGEU..MZ11,12; MTEU..MZ10198308-198512

NO.1

main16173-45101i5MGEU,MTEU..MZ1#198102-198302

main16174-43030i5MGEU..MZ11198302-198308

NO.2

main16371-70010i1GEU..GZ10198102-198308

main16371-70020i1GEU..GZ10198308-198512

main16371-88301i1GGEU..GZ10198302-198512

9010508054

main90105-08054

9017908123

main90179-08123

9161160620

main91611-60620

9161160625

main91611-60625

12 parts on this diagram · 3 diagrams in section
