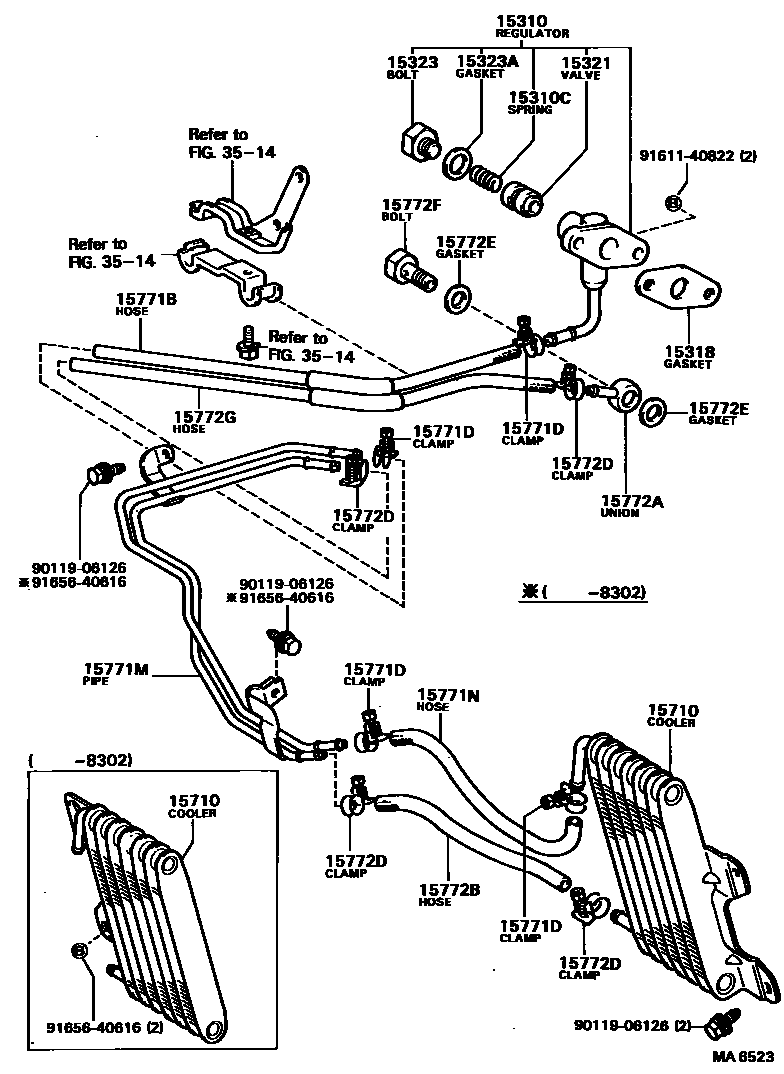

ENGINE OIL COOLER
15310REGULATOR ASSY, OIL PRESSURE
15310CSPRING, OIL PRESSURE REGULATOR
15318GASKET, OIL PRESSURE REGULATOR BODY
15321VALVE, OIL ADJUSTING
15323BOLT, OIL PRESSURE ADJUSTING
15323AGASKET, OIL PRESSURE REGULATOR ADJUSTING BOLT
15771BHOSE, OIL, NO.1(FOR OIL PIPE)
15771DCLAMP, OIL COOLER HOSE
COOLER SIDE
15771NHOSE, OIL, NO.2(FOR OIL PIPE)
15772AUNION(FOR OIL PIPE)
15772BHOSE, OIL, NO.1(FOR OIL PIPE)
15772DCLAMP OR CLIP, OIL COOLER HOSE
PIPE SIDE
COOLER SIDE
UNION SIDE
15772EGASKET(FOR OIL PIPE)
15772FBOLT, UNION(FOR OIL PIPE)
15772GHOSE, OIL, NO.2 (FOR OIL PIPE)
3514OIL COOLER & TUBE (ATM)
9011906126
main90119-06126
9161140822
main91611-40822
9165640616
main91656-40616
21 parts on this diagram · 1 diagram in section
