ENGINE OVERHAUL GASKET KIT

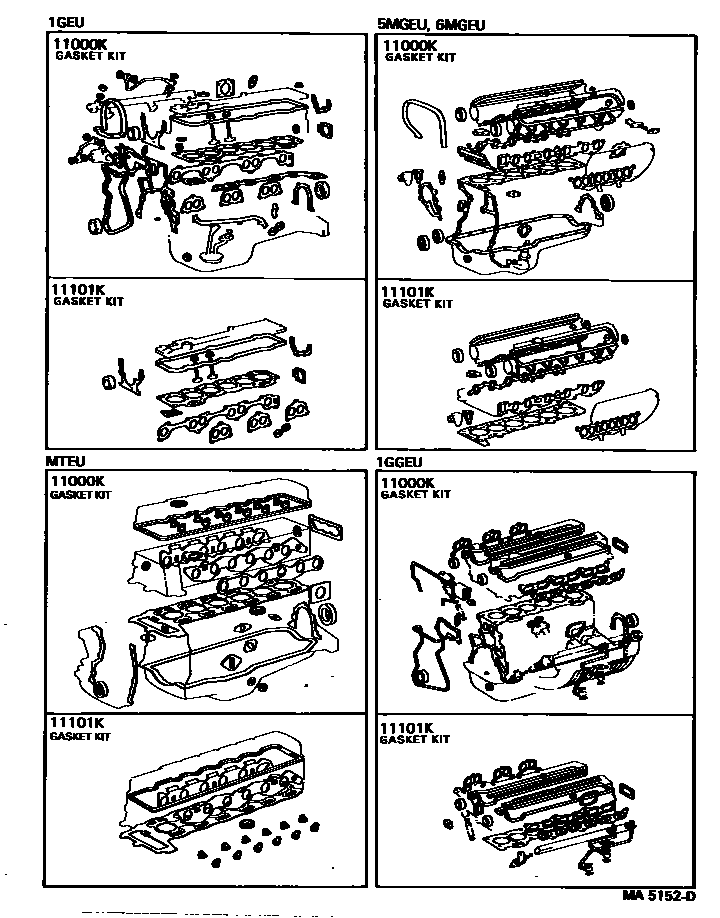

Parts diagram

11000KGASKET KIT, ENGINE OVERHAUL

main04111-41090i198107-198302

main04111-41100i198302-198512

main04111-43030i198102-198308

main04111-43040i198308-198501

main04111-43080i198501-198512

main04111-70011i198102-198208

main04111-70012i198208-198408

main04111-70013i198408-198512

main04111-70020i198302-198408

main04111-70021i198408-198512

11101KGASKET KIT, ENGINE VALVE GRIND

main04112-41090i198107-198302

main04112-41100i198302-198512

main04112-43030i198102-198308

main04112-43041i198308-198512

main04112-70010i198102-198408

main04112-70011i198408-198512

main04112-70020i198302-198512

2 parts on this diagram · 1 diagram in section
