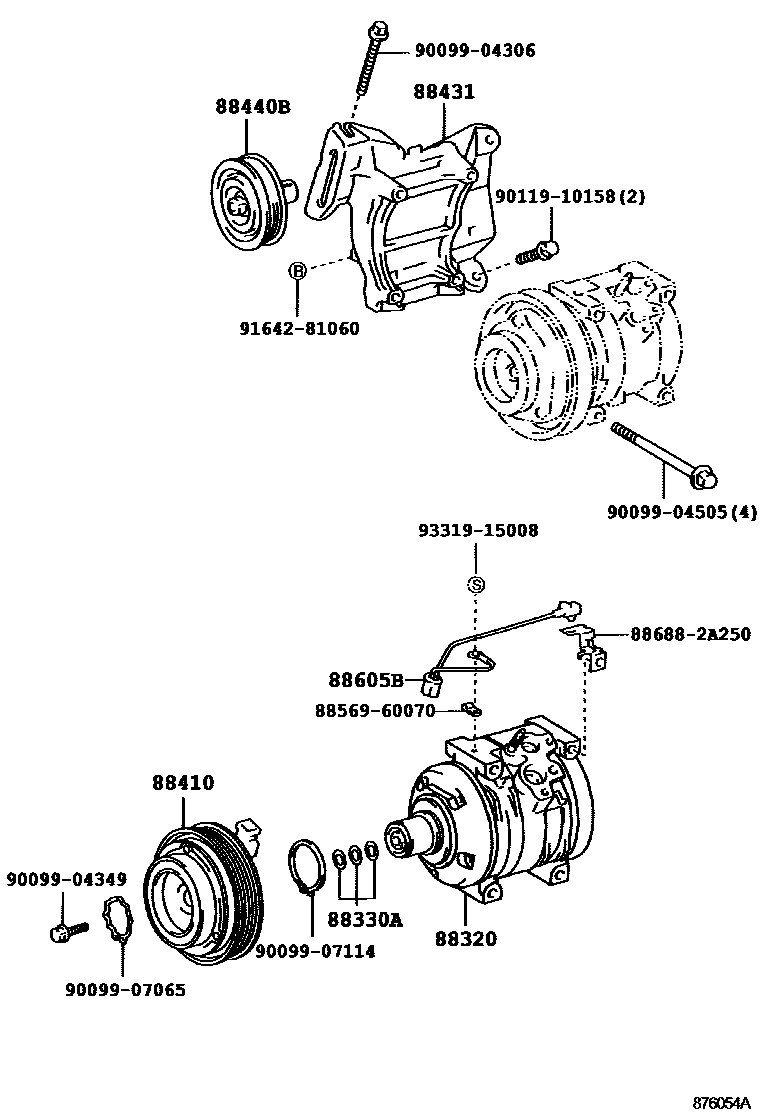

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88320COMPRESSOR ASSY, COOLER

main88320-2A100iJZX110200106-200404

main88320-2A110iGX11#200106-200404

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iGX11#,JZX110200106-200404

88410CLUTCH ASSY, MAGNET

main88410-2A090iGX11#200106-200404

main88410-2A110iJZX110200106-200404

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-22350iGX11#200106-200404

88440BPULLEY ASSY, IDLE

main88440-20170iGX11#200106-200404

88605BHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-53010iGX11#200106-200404

8856960070CLAMP (FOR COOLER RELAY)

main88569-60070

886882A250BRACKET, COOLER DIAPHRAGM

main88688-2A250

9009904306

main90099-04306

9009904349

main90099-04349

9009904505

main90099-04505

9009907065

main90099-07065

9009907114

main90099-07114

9011910158

main90119-10158

9164281060

main91642-81060

9331915008

main93319-15008

16 parts on this diagram · 2 diagrams in section
