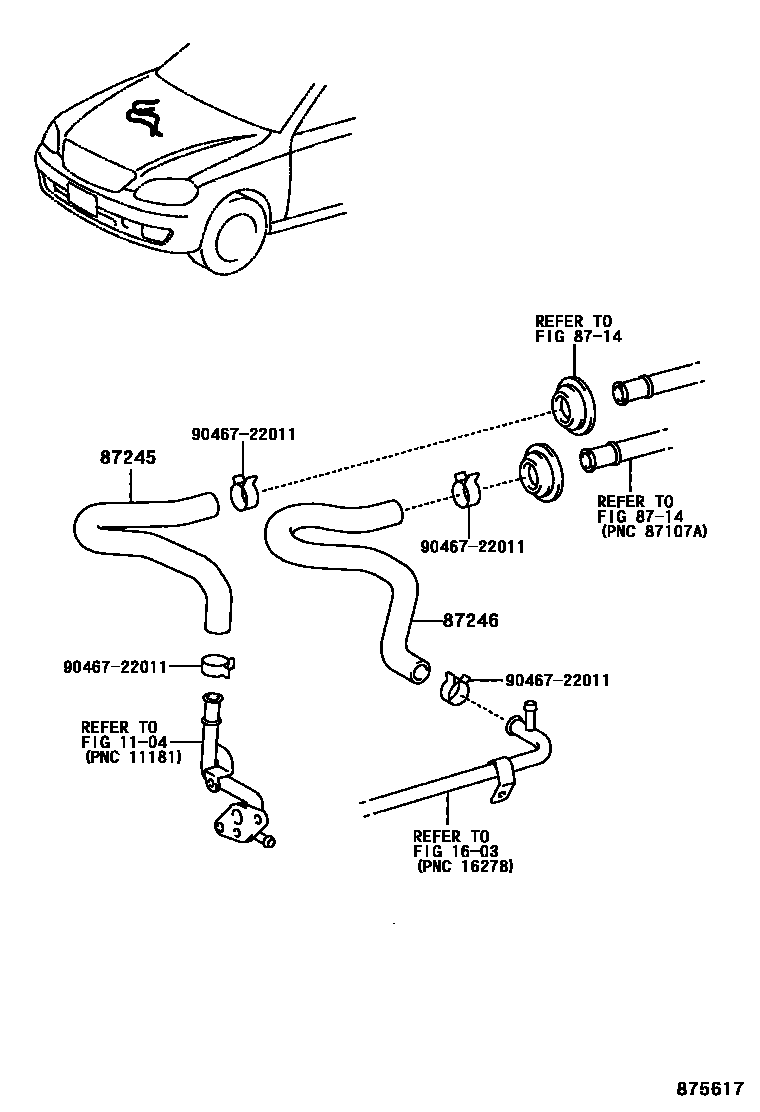

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-2A730iJZX110..5FC200106-200404

main87245-2A770iJZX110..5F200106-200210

main87245-2A771iJZX110..5F200210-200404

main87245-3F520iJZX110..4FC200106-200210

main87245-3F521iJZX110..4FC200210-200404

main87245-53030iGX11#200106-200404

87246HOSE, HEATER WATER, OUTLET

main87245-2A710iJZX110..5F200106-200404

main87245-2A740iJZX110..5FC200106-200404

main87245-3F530iJZX110..4FC200106-200404

main87245-53040iGX11#200106-200404

9046722011

main90467-22011

6 parts on this diagram · 3 diagrams in section
