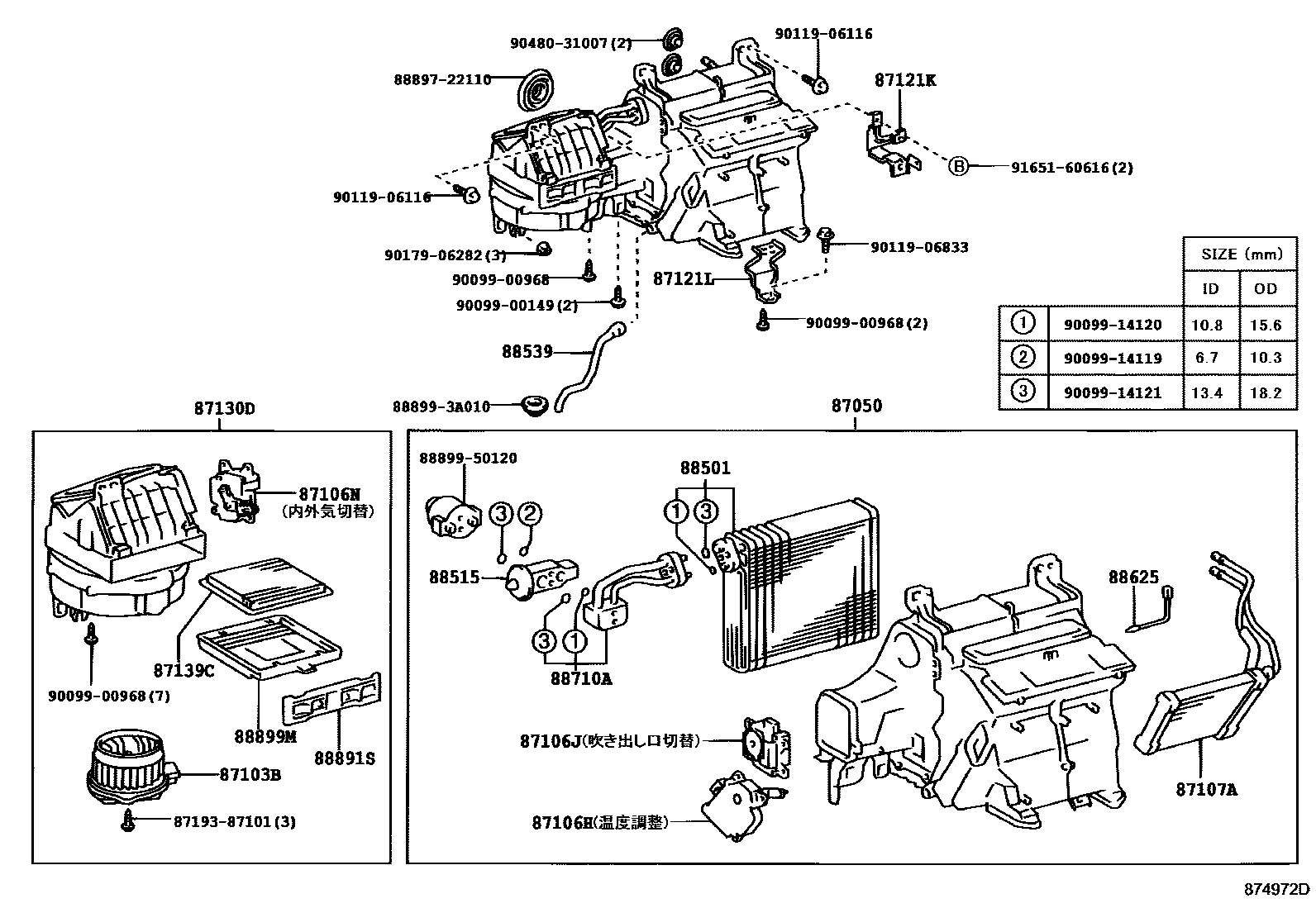

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106JSERVO SUB-ASSY, DAMPER(FOR MODE)
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87121KBRACKET, HEATER
87121LBRACKET, HEATER
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88539HOSE, COOLER UNIT DRAIN, NO.1
88625THERMISTOR, COOLER, NO.1
88710ATUBE ASSY, AIR CONDITIONER
88891SCOVER, COOLER, NO.1
88899MPLATE, COVER(FOR AIR FILTER)
8719387101
main87193-87101
8889722110VALVE, COOLER MAGNET
main88897-22110
888993A010COVER, EVAPORATOR
main88899-3A010
8889950120COVER, EVAPORATOR
main88899-50120
9009900149
main90099-00149
9009900968
main90099-00968
9009914119
main90099-14119
9009914120
main90099-14120
9009914121
main90099-14121
9011906116
main90119-06116
9011906833
main90119-06833
9017906282
main90179-06282
9048031007
main90480-31007
9165160616
main91651-60616
31 parts on this diagram · 1 diagram in section
