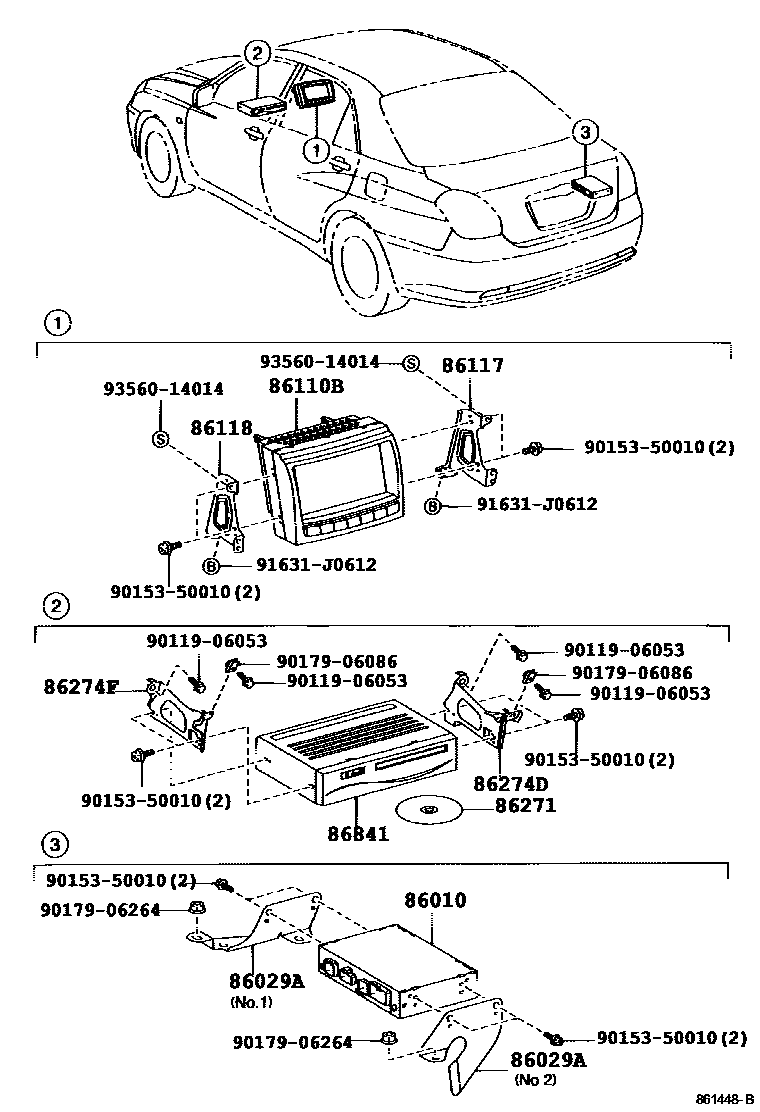

NAVIGATION & FRONT MONITOR DISPLAY

86010TUNER ASSY, TELEVISION

main86010-53040iGX11#,JZX110200106-200209

main86016-53010iGX11#,JZX110200209-200404

86029ABRACKET SET, TELEVISION, NO.1

main86029-30020iGX11#,JZX110200106-200404

main86029-30030iGX11#,JZX110200106-200404

86110BMULTI-DISPLAY ASSY

main86110-22070iGX11#,JZX110200106-200404

main86110-22090iGX11#,JZX110..20,25200301-200404

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-22040iGX11#,JZX110200106-200404

86118BRACKET, MULTI-DISPLAY CONTROLER, B

main86118-22040iGX11#,JZX110200106-200404

86271DISC, DISC PLAYER

main86271-13030iGX11#,JZX110200106-200312

main86271-13031iGX11#,JZX110200312-200404

86274DBRACKET, DISC PLAYER

main86274-22050iGX11#,JZX110200106-200404

86274FBRACKET, DISC PLAYER, NO.2

main86274-22060iGX11#,JZX110200106-200404

86841COMPUTER, NAVIGATION

main86841-13010iGX11#,JZX110200106-200404

9011906053

main90119-06053

9015350010

main90153-50010

9017906086

main90179-06086

9017906264

main90179-06264

91631J0612

main91631-J0612

9356014014

main93560-14014

15 parts on this diagram · 1 diagram in section
