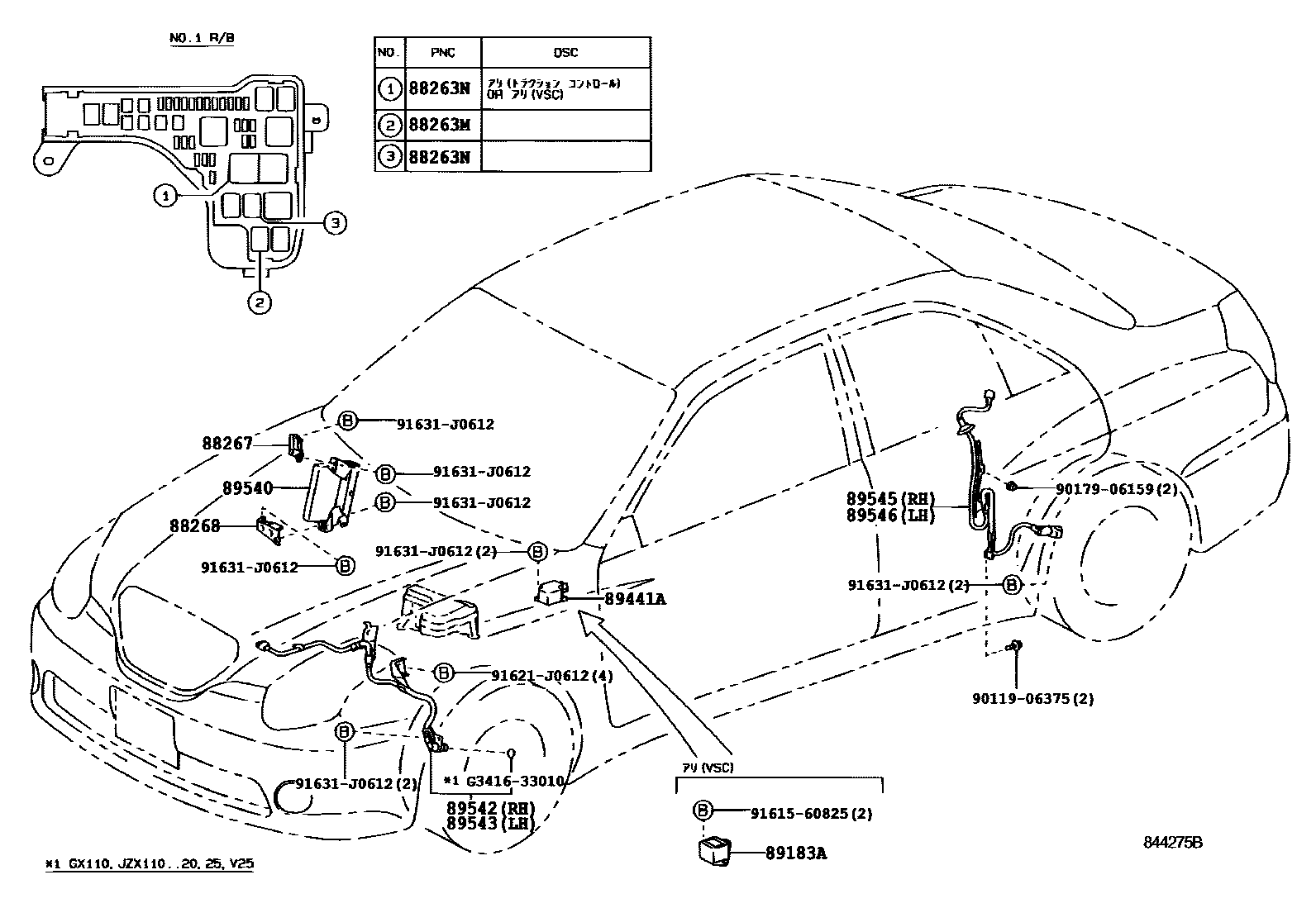

ABS & VSC

88263MRELAY, ABS SOLENOID

main88263-32070iGX11#,JZX110200106-200404

88263NRELAY, ABS MOTOR

main88263-30150iJZX110200106-200404

main88263-32070iGX11#,JZX110..20,25,V25200106-200404

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-22220iGX11#,JZX110200106-200404

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-22180iGX11#,JZX110200106-200404

89183ASENSOR, YAWRATE

main89183-22020iJZX110..ATM..(V25,VR25)200106-200404

89441ASENSOR, DECELERATION

main89441-30040iGX115200106-200404

89540COMPUTER ASSY, SKID CONTROL

main89540-22390iGX110200106-200404

main89540-22400iJZX110..5FC200106-200404

main89540-22430iGX115200106-200404

main89540-22440iJZX110..25,VR25200106-200210

main89540-22450iJZX110..ATM..(V25,VR25)200106-200210

main89540-22530iJZX110..25,VR25200210-200404

main89540-22540iJZX110..ATM..(V25,VR25)200210-200404

89542SENSOR, SPEED, FRONT RH

main89542-30230iGX110,JZX110..20,25,V25200106-200306

main89542-30241iGX115200106-200404

main89542-51010iJZX110..VR25200106-200404

89543SENSOR, SPEED, FRONT LH

main89543-30230iGX110,JZX110..20,25,V25200106-200308

main89543-30241iGX115200106-200404

main89543-53010iJZX110..VR25200106-200404

89545SENSOR, SPEED, REAR RH

main89545-30060iGX115,JZX110200106-200404

89546SENSOR, SPEED, REAR LH

main89546-30060iGX115,JZX110200106-200404

9011906375

main90119-06375

9017906159

main90179-06159

9161560825

main91615-60825

91621J0612

main91621-J0612

91631J0612

main91631-J0612

G341633010

mainG3416-33010

17 parts on this diagram · 1 diagram in section
