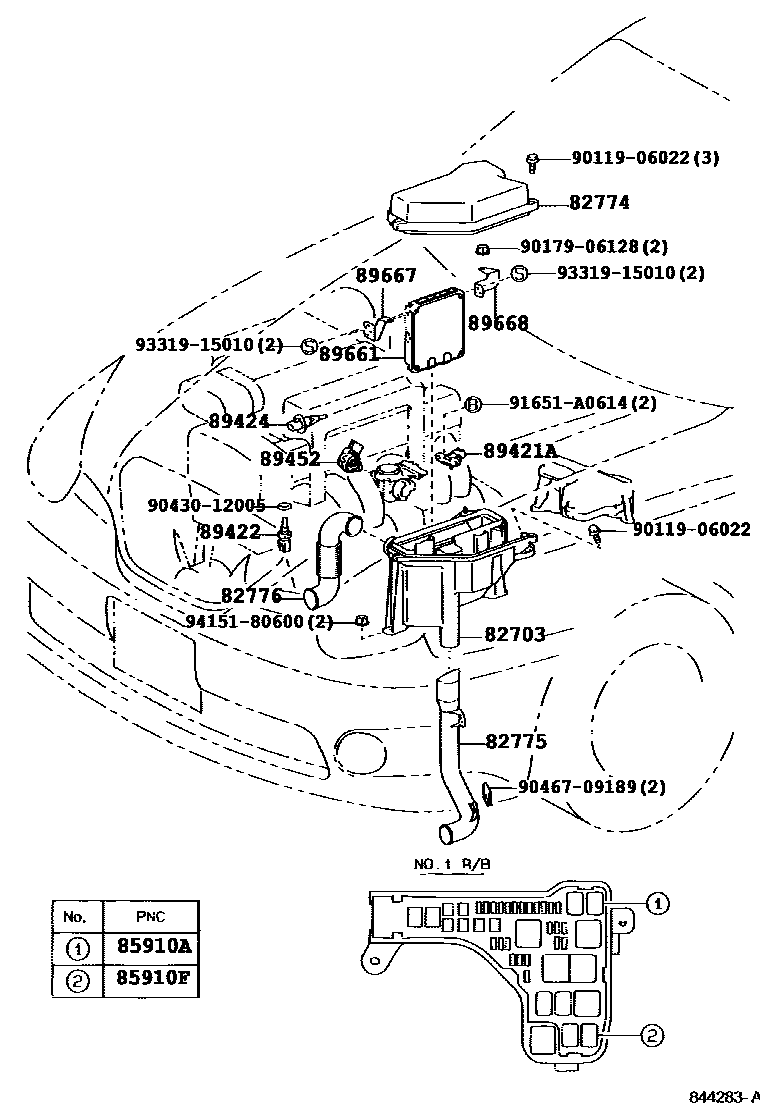

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

82703BOX SUB-ASSY, ENGINE ROOM ECU

main82703-30020iJZX110..VR25200106-200404

main82703-30030iGX11#,JZX110..20,25,V25200106-200404

82774COVER, ENGINE ROOM ECU

main82774-30020iGX11#,JZX110..20,VR25200106-200404

main82774-30030iJZX110..5FC200106-200404

82775DUCT, ENGINE ROOM ECU INLET

main82775-30020iGX11#,JZX110200106-200404

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-22011iGX11#,JZX110..20,25,V25200106-200404

main82776-22020iJZX110..VR25200106-200404

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iGX11#,JZX110200106-200404

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iGX11#,JZX110200106-200404

89421ASENSOR, TURBO PRESSURE

main89421-20190iGX11#,JZX110..20,25,V25200106-200404

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30030iJZX110200106-200404

main89422-35010iGX11#200106-200404

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iGX11#,JZX110..20,25,V25200106-200404

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22070iGX11#200106-200404

main89452-22100iJZX110..5FC200106-200404

main89452-30140iJZX110..VR25200106-200404

89661COMPUTER, ENGINE CONTROL

main89661-2A060iJZX110..4FC200106-200404

main89661-2A070iJZX110..5F200106-200404

main89661-2A100iJZX110..5FC200106-200111

main89661-2A101iJZX110..5FC200107-200404

main89661-2A110iJZX110..5FC200106-200111

main89661-2A111iJZX110..5FC200107-200404

main89661-2A130iGX115200106-200404

main89661-2A140iGX110200106-200404

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-30250iJZX110..VR25200106-200404

main89667-30270iJZX110..5FC200106-200404

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30210iGX11#200106-200404

9011906022

main90119-06022

9017906128

main90179-06128

9043012005

main90430-12005

9046709189

main90467-09189

91651A0614

main91651-A0614

9331915010

main93319-15010

9415180600

main94151-80600

20 parts on this diagram · 3 diagrams in section
