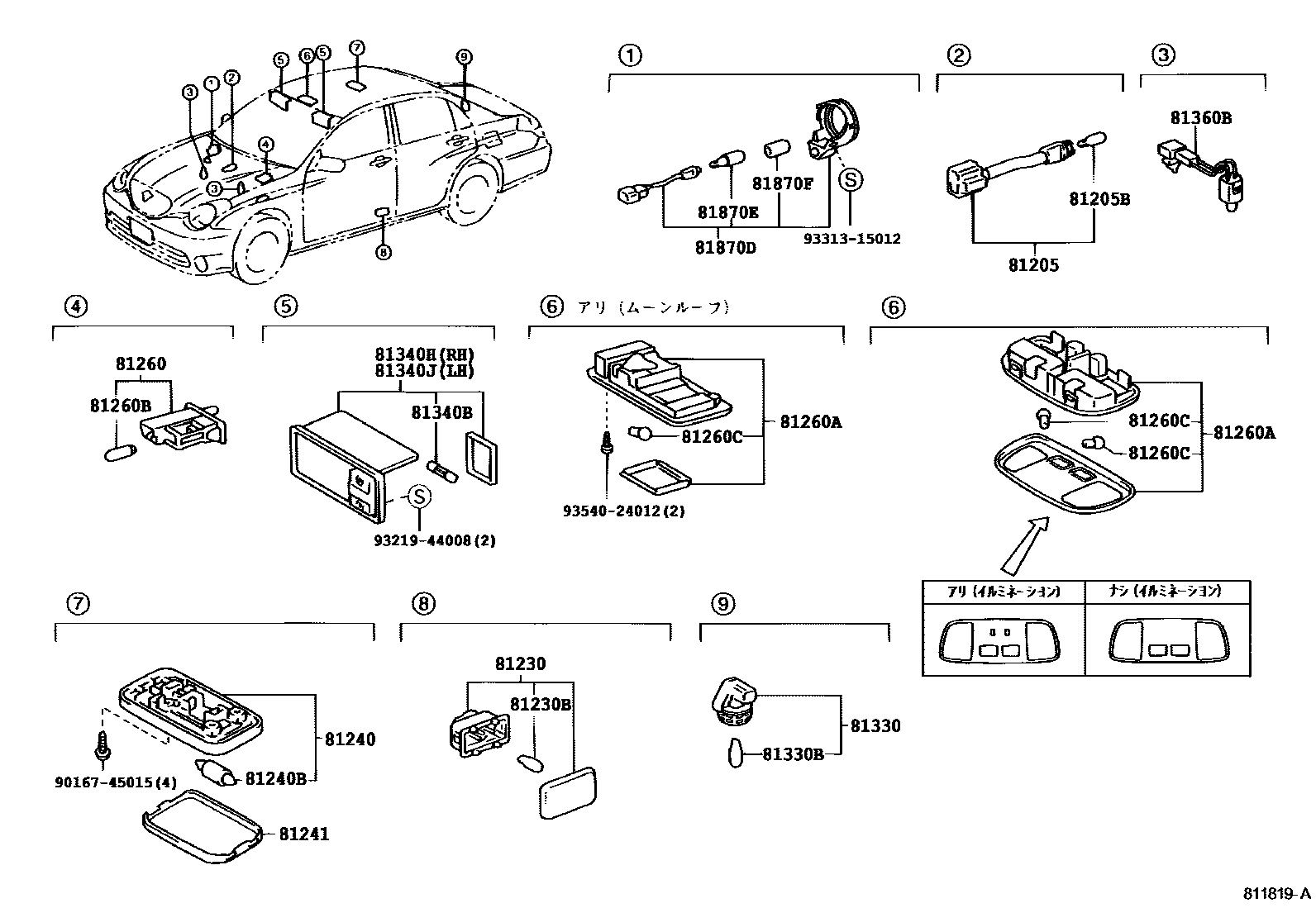

INTERIOR LAMP

81205LAMP SUB-ASSY, ASH RECEPTACLE

main81850-53011iGX11#,JZX110200106-200404

81205BBULB, ASH RECEPTACLE LAMP

main90981-11014iGX11#,JZX110200106-200404

81230LAMP ASSY, COURTESY

main81230-30140×2iGX11#,JZX110..20,25200301-200404

main81230-50040×2iGX11#,JZX110200106-200404

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iGX11#,JZX110200106-200404

81240LAMP ASSY, ROOM, NO.1

main81023-22010-B0iGX11#,JZX110200106-200404

MD.CHARCOAL,TRIM1#,2#

81240BBULB, ROOM LAMP, NO.1

main90981-14004iGX11#,JZX110200106-200404

81241LENS, ROOM LAMP, NO.1

main81241-51010iGX11#,JZX110200106-200404

81260LAMP ASSY, GLOVE BOX

main81260-22160iGX11#,JZX110200106-200206

main81260-33030iGX11#,JZX110200206-200404

81260ALAMP ASSY, MAP

main81260-22180-B1iGX11#,JZX110..20,25200106-200404

MD.CHARCOAL,TRIM1#,2#

main81260-22190-B0iGX115,JZX110..20,V25,VR25200106-200404

main81260-32090-B2iGX11#,JZX110200106-200404

81260BBULB(FOR GLOVE BOX)

main90981-11018iGX11#,JZX110200206-200404

81260CBULB(FOR MAP LAMP)

main90981-12014iGX11#,JZX110200106-200404

main90981-12020×2iGX11#,JZX110200106-200404

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iGX11#,JZX110200106-200404

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iGX11#,JZX110200106-200404

81340BBULB (FOR VANITY LAMP)

main90981-14007iGX11#,JZX110; GX11#,JZX110..20,25200106-200404

81340HLAMP ASSY, VANITY, RH

main81350-30050-B0iGX11#,JZX110200106-200404

MD.CHARCOAL,TRIM1#,2#

81340JLAMP ASSY, VANITY, LH

main81340-30090-B0iGX11#,JZX110200106-200404

MD.CHARCOAL,TRIM1#,2#

81360BBULB, STEP OR SPOT LAMP

main81090-50010×2iGX115,JZX110..20,V25,VR25200106-200404

81870DLAMP ASSY, KEY CYLINDER

main81870-22080iGX11#,JZX110200106-200404

main81870-22110iJZX110..VR25200106-200404

81870EBULB, KEY CYLINDER LAMP

main90010-01069iGX11#,JZX110200106-200404

main90981-11014iGX11#,JZX110..20,25200301-200404

81870FCAP, KEY CYLINDER LAMP BULB

main84998-10080iGX11#,JZX110..20,25200301-200404

9016745015

main90167-45015

9321944008

main93219-44008

9331315012

main93313-15012

9354024012

main93540-24012

24 parts on this diagram · 1 diagram in section
