REAR LICENSE PLATE LAMP

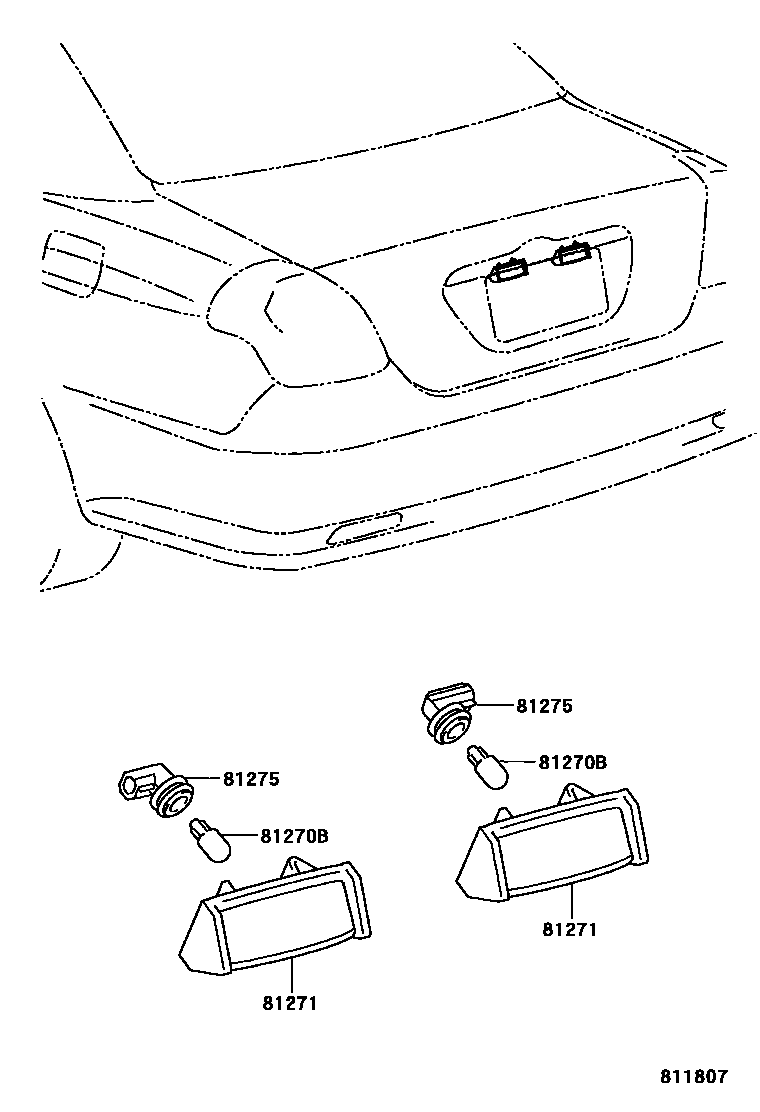

Parts diagram

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2i200106-200404

81271LENS, LICENSE PLATE LAMP

main81271-30290×2i200106-200404

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main90075-99005×2i200106-200404

3 parts on this diagram · 1 diagram in section
