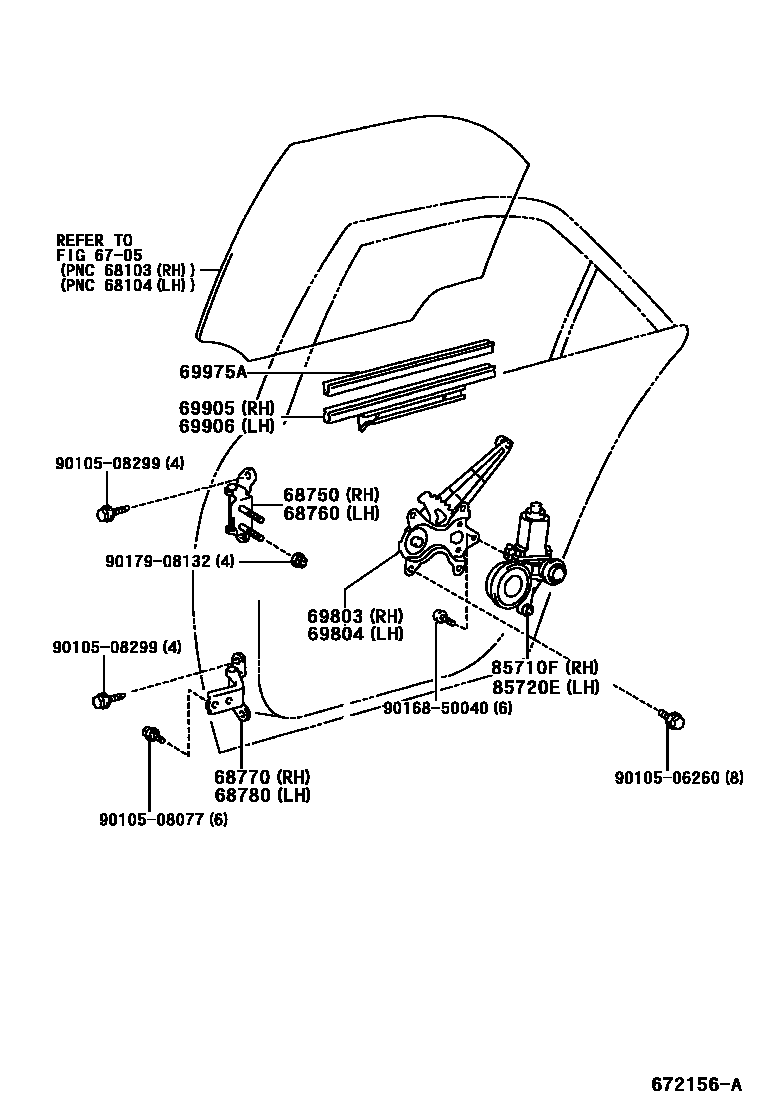

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-22050iGX11#,JZX110200106-200404

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-22040iGX11#,JZX110200106-200404

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-60030iGX11#,JZX110200106-200404

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-60030iGX11#,JZX110200106-200404

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-22200iGX11#,JZX110200106-200404

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-22200iGX11#,JZX110200106-200404

69905BRACKET SUB-ASSY, REAR DOOR GLASS, RH

main69905-22060iGX11#,JZX110200106-200404

69906BRACKET SUB-ASSY, REAR DOOR GLASS, LH

main69906-22050iGX11#,JZX110200106-200404

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-60040×2iGX11#,JZX110200106-200404

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-20410iGX11#,JZX110200301-200404

main85720-30270iGX11#,JZX110200106-200301

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-20390iGX11#,JZX110200301-200404

main85710-22410iGX11#,JZX110200106-200301

9010506260

main90105-06260

9010508077

main90105-08077

9010508299

main90105-08299

9016850040

main90168-50040

9017908132

main90179-08132

17 parts on this diagram · 1 diagram in section
