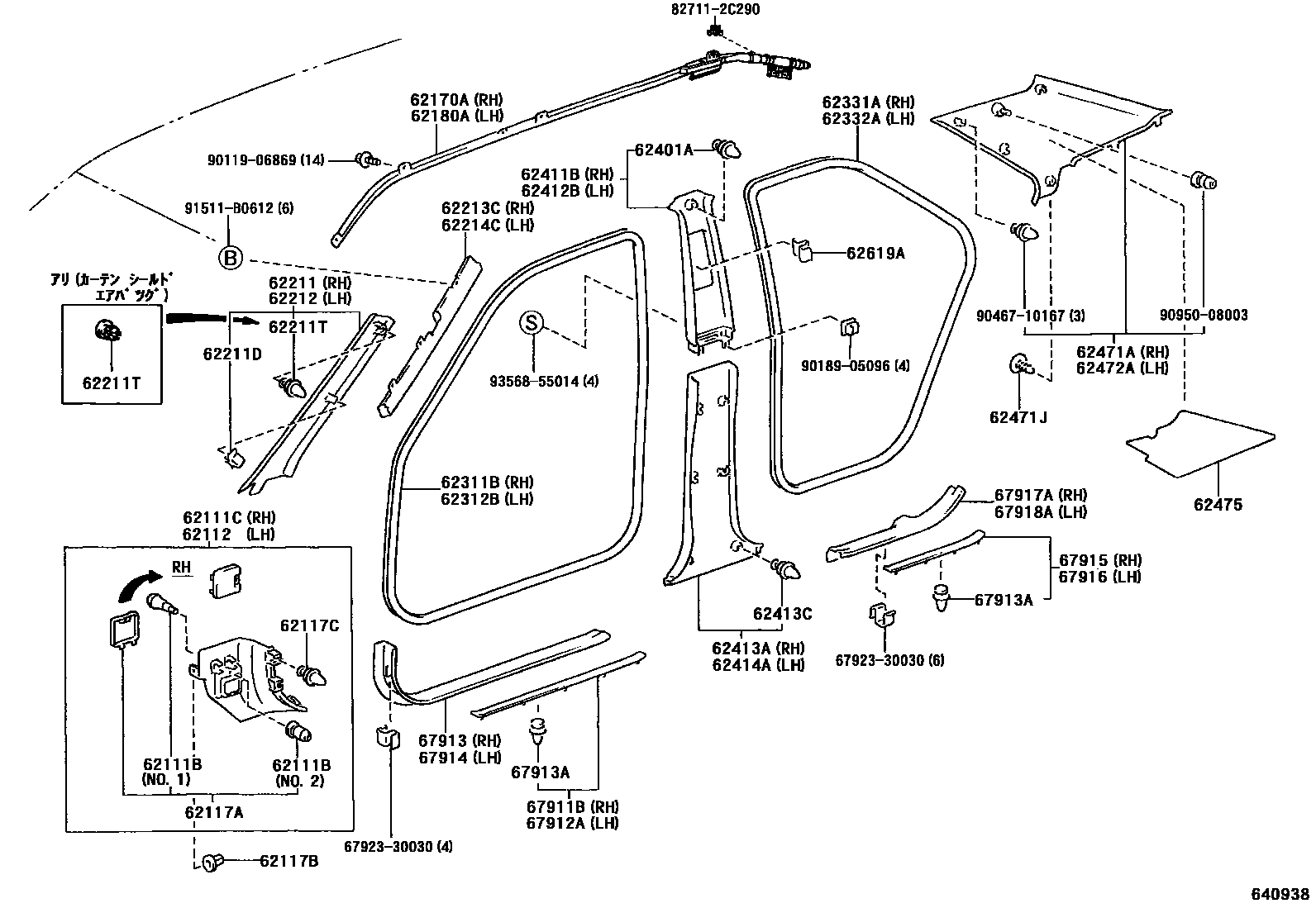

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
62112BOARD, COWL SIDE TRIM, LH
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
MD.CHARCOAL,TRIM1#
BLACK,TRIM2#
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62211GARNISH, FRONT PILLAR, RH
MEDIUM CHACOAL,TRIM1#,2#
62211DCLIP(FOR FRONT BODY PILLAR GARNISH)
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
MEDIUM CHACOAL,TRIM1#,2#
62213CPAD, FRONT PILLAR GARNISH, RH
62214CPAD, FRONT PILLAR GARNISH, LH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
MEDIUM CHACOAL,TRIM1#,2#
62412BGARNISH, CENTER PILLAR, UPPER LH
MEDIUM CHACOAL,TRIM1#,2#
62413AGARNISH, CENTER PILLAR, LOWER RH
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
62471AGARNISH, ROOF SIDE, INNER RH
MEDIUM CHACOAL,TRIM1#,2#
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
MEDIUM CHACOAL,TRIM1#,2#
62475PAD, ROOF SIDE INNER GARNISH
62619APLATE, SIDE TRIM SET
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
VEROSSA
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
VEROSSA
67913PLATE, FRONT DOOR SCUFF, RH
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
6792330030CUSHION, FRONT DOOR STIFFENER, NO.1
main67923-30030
827112C290WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-2C290
9011906869
main90119-06869
9018905096
main90189-05096
9046710167
main90467-10167
9095008003
main90950-08003
91511B0612
main91511-B0612
9356855014
main93568-55014
46 parts on this diagram · 1 diagram in section
