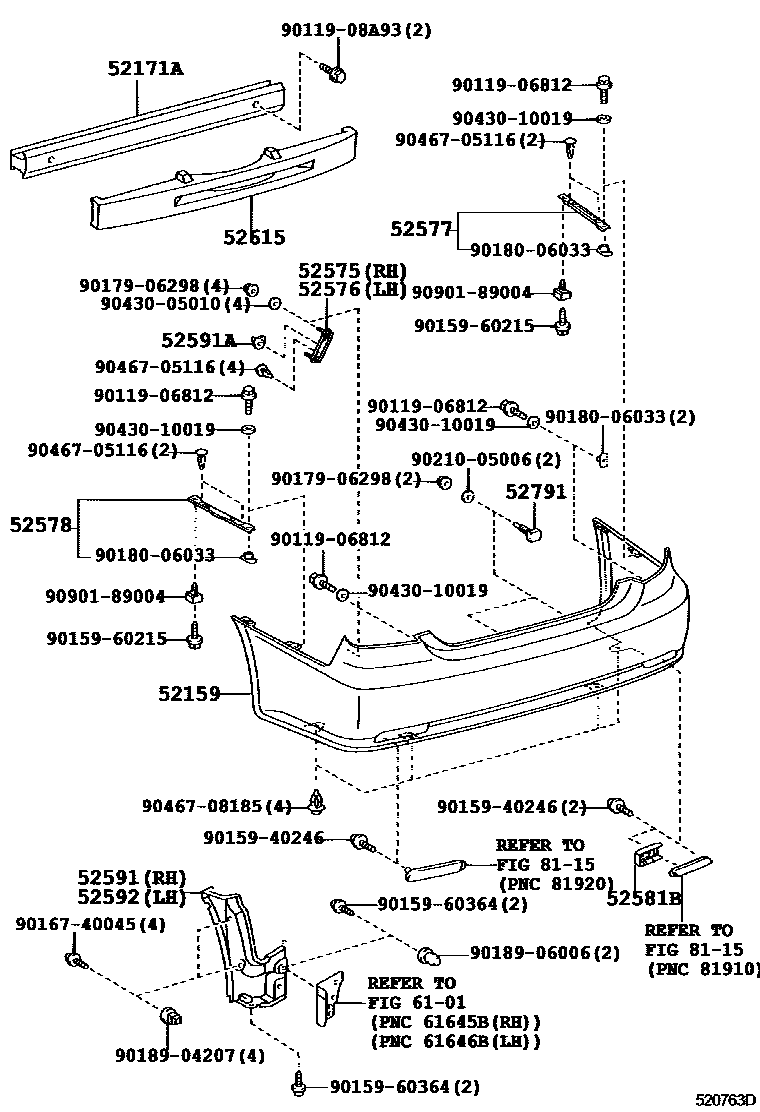

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
WHITE PEARL CS.,062
WHITE PEARL CS.,065
SILVER ME.,1C0
BLACK,202
BLACK CHERRY MC.,3P9
LT.ROSE M.M.,3Q1
DK.BLUE MC.,8N8
LT. BLUE M.M.,8P7
52171AREINFORCEMENT, REAR BUMPER, NO.1
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52581BPROTECTOR, REAR BUMPER
52591SEAL, REAR BUMPER SIDE, RH
52591ASEAL, REAR BUMPER
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
52791BOLT, BUMPER MOULDING SET, NO.1
6101SIDE MEMBER
8115REFLEX REFLECTOR
9011906812
main90119-06812
9011908A93
main90119-08A93
9015940246
main90159-40246
9015960215
main90159-60215
9015960364
main90159-60364
9016740045
main90167-40045
9017906298
main90179-06298
9018006033
main90180-06033
9018904207
main90189-04207
9018906006
main90189-06006
9021005006
main90210-05006
9043005010
main90430-05010
9043010019
main90430-10019
9046705116
main90467-05116
9046708185
main90467-08185
9090189004
main90901-89004
30 parts on this diagram · 1 diagram in section
