SPARE WHEEL CARRIER

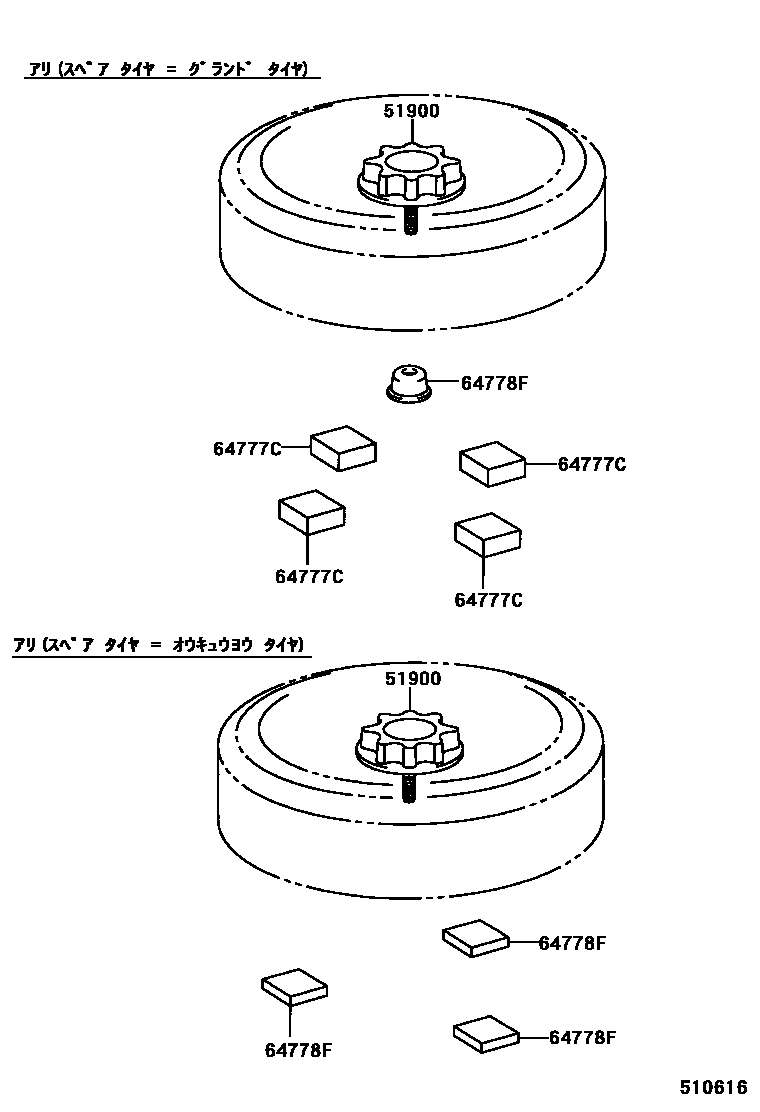

Parts diagram

51900CARRIER ASSY, SPARE WHEEL

main51931-30050i200106-200404

main51931-50010i200106-200404

64777CCUSHION, SPARE WHEEL

main64777-22060×4i200106-200404

64778FPROTECTOR, SPARE WHEEL

main64778-22030×3i200106-200404

main64778-30020i200106-200404

3 parts on this diagram · 1 diagram in section
