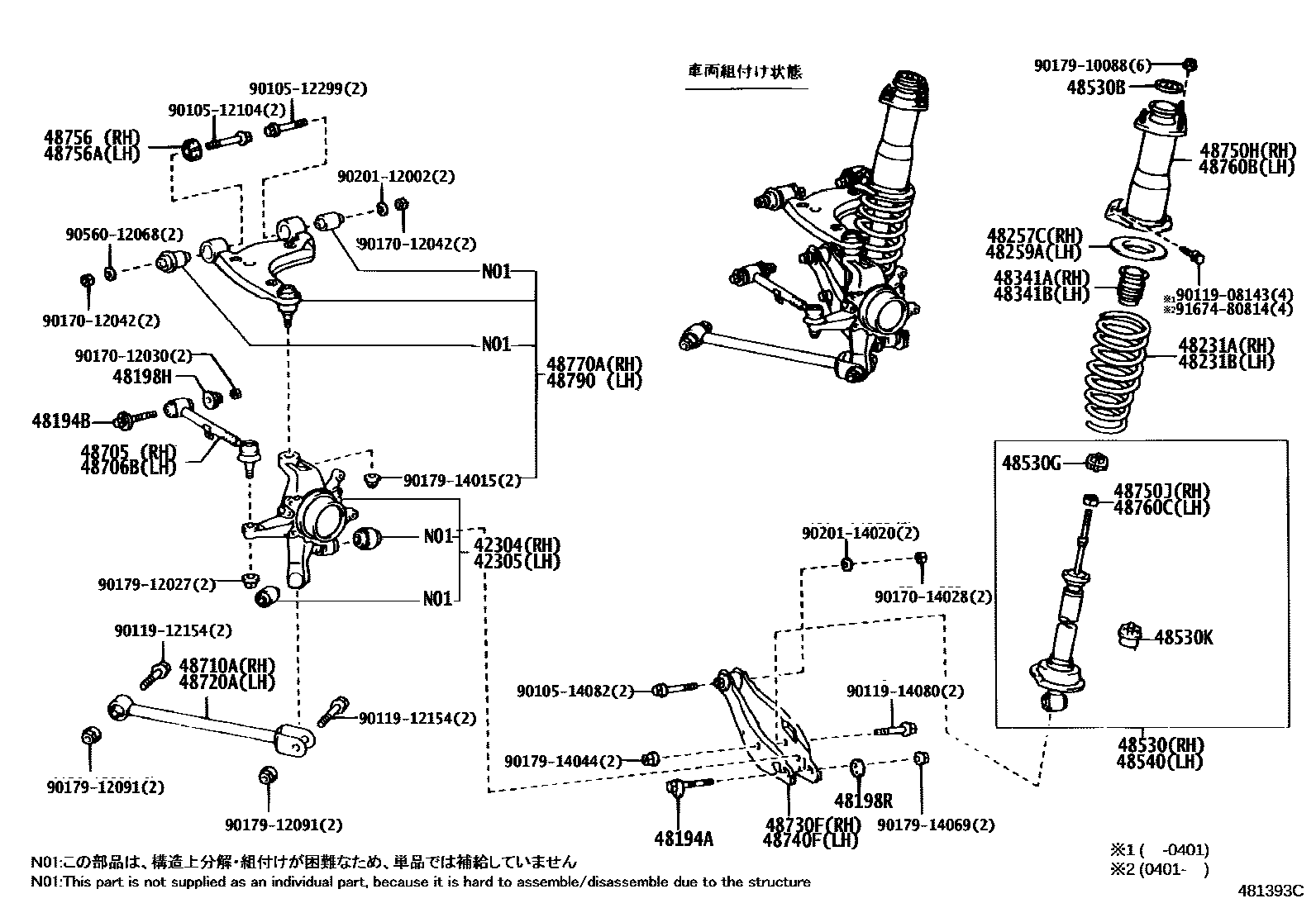

REAR SPRING & SHOCK ABSORBER
42304CARRIER SUB-ASSY, REAR AXLE, RH
42305CARRIER SUB-ASSY, REAR AXLE, LH
48194ACAM, REAR SUSPENSION CAMBER ADJUST, NO.1
48194BCAM, REAR SUSPENSION CAMBER ADJUST, NO.3
48198HCAM, CAMBER ADJUST, NO.2
48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48231ASPRING, COIL, REAR RH
48231BSPRING, COIL, REAR LH
48257CINSULATOR, REAR COIL SPRING, UPPER RH
48259AINSULATOR, REAR COIL SPRING, UPPER LH
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
48530KCUSHION, REAR SHOCK ABSORBER, NO.2
48540ABSORBER ASSY, SHOCK, REAR LH
48705LINK SUB-ASSY, TOE CONTROL, RH
48706BLINK SUB-ASSY, TOE CONTROL, LH
48710AARM ASSY, REAR SUSPENSION, NO.1 RH
48720AARM ASSY, REAR SUSPENSION, NO.1 LH
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750HSUPPORT ASSY, REAR SUSPENSION, RH
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48756PIECE, REAR SUSPENSION ARM, RH
48756APIECE, REAR SUSPENSION ARM, LH
48760BSUPPORT ASSY REAR SUSPENSION, LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48770AARM ASSY, UPPER CONTROL, REAR RH
48790ARM ASSY, UPPER CONTROL, REAR LH
9010512104
main90105-12104
9010512299
main90105-12299
9010514082
main90105-14082
9011908143
main90119-08143
9011912154
main90119-12154
9011914080
main90119-14080
9017012030
main90170-12030
9017012042
main90170-12042
9017014028
main90170-14028
9017910088
main90179-10088
9017912027
main90179-12027
9017912091
main90179-12091
9017914015
main90179-14015
9017914044
main90179-14044
9017914069
main90179-14069
9020112002
main90201-12002
9020114020
main90201-14020
9056012068
main90560-12068
9167480814
main91674-80814
50 parts on this diagram · 3 diagrams in section
