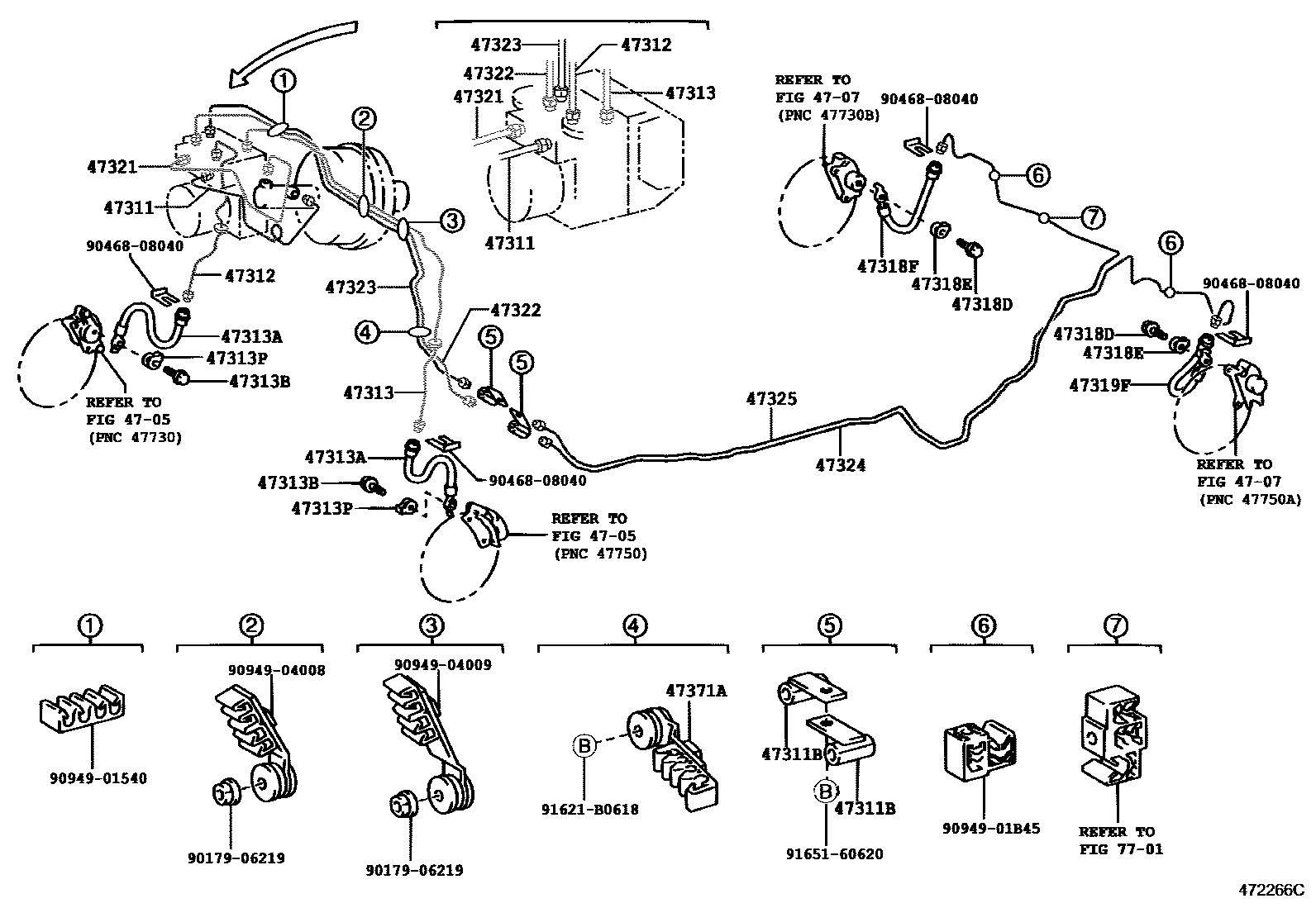

BRAKE TUBE & CLAMP

0001 1 0002 1��(������ ����-�) OR ��(VSC) 0003 1 0004 1��(������ ����-�) OR ��(VSC)

4705FRONT DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-05

4707REAR DISC BRAKE CALIPER & DUST COVER

→ Go to FIG 47-07

47311TUBE, FRONT BRAKE, NO.1

main47311-22610iGX115,JZX110..20,25,V25200106-200404

main47311-22620iGX110200106-200404

main47311-22630iJZX110200106-200404

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10144×2iGX11#,JZX110200106-200404

47312TUBE, FRONT BRAKE, NO.2

main47312-22390iGX110,JZX110..20,25,V25200106-200404

main47312-22400iGX115200106-200404

main47312-30491iJZX110200106-200404

47313TUBE, FRONT BRAKE, NO.3

main47313-22560iGX110,JZX110..20,25,V25200106-200404

main47313-22570iGX115200106-200404

main47313-22580iJZX110200106-200404

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02841×2iGX115200106-200404

main90947-02C28×2iGX110,JZX110200106-200404

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iGX11#,JZX110200106-200404

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020×2iGX11#,JZX110200106-200404

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iGX11#,JZX110200106-200404

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020×2iGX11#,JZX110200106-200404

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02C29iGX11#,JZX110200106-200404

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02C29iGX11#,JZX110200106-200404

47321TUBE, REAR BRAKE, NO.1

main47321-22380iGX115,JZX110..20,25,V25200106-200404

main47321-22390iGX110200106-200404

main47321-22400iJZX110200106-200404

47322TUBE, REAR BRAKE, NO.2

main47322-22380iGX11#,JZX110..20,25,V25200106-200404

main47322-22390iJZX110200106-200404

47323TUBE, REAR BRAKE, NO.3

main47323-22230iGX11#,JZX110..20,25,V25200106-200404

main47323-22240iJZX110200106-200404

47324TUBE, REAR BRAKE, NO.4

main47324-22310iGX11#,JZX110200106-200404

47325TUBE, REAR BRAKE, NO.5

main47325-22130iGX11#,JZX110200106-200404

47371ACLAMP, BRAKE TUBE, NO.1

main47371-53110iGX11#,JZX110200106-200404

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9017906219

main90179-06219

9046808040

main90468-08040

9094901540

main90949-01540

9094901B45

main90949-01B45

9094904008

main90949-04008

9094904009

main90949-04009

91621B0618

main91621-B0618

9165160620

main91651-60620

28 parts on this diagram · 4 diagrams in section
