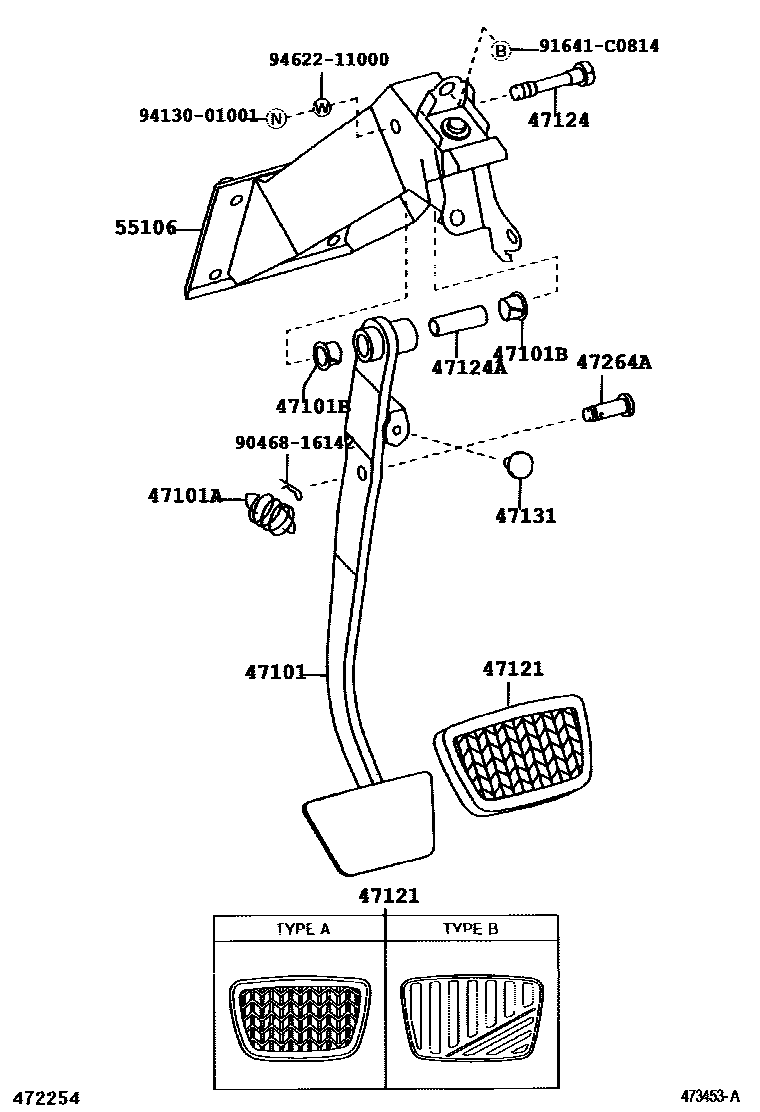

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-22450iGX110200106-200404

main47106-22010iGX115,JZX110..ATM200106-200404

main47106-22020iJZX110..5F200106-200404

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14048iGX11#,JZX110200106-200404

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iGX11#,JZX110200106-200404

47121PAD, BRAKE PEDAL

main31321-22010iJZX110..5F200106-200404

main47121-22030iGX11#,JZX110..ATM200106-200404

main47121-50020iGX11#; JZX110..25200301-200404

47124SHAFT, BRAKE PEDAL

main90101-10015iGX11#,JZX110200106-200404

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGX11#,JZX110200106-200404

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iGX11#,JZX110200106-200404

47264APIN(FOR PUSH ROD)

main90249-06180iGX115,JZX110200106-200404

main90249-10064iGX110200106-200404

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-30342iGX11#,JZX110200106-200404

9046816142

main90468-16142

91641C0814

main91641-C0814

9413001001

main94130-01001

9462211000

main94622-11000

13 parts on this diagram · 2 diagrams in section
