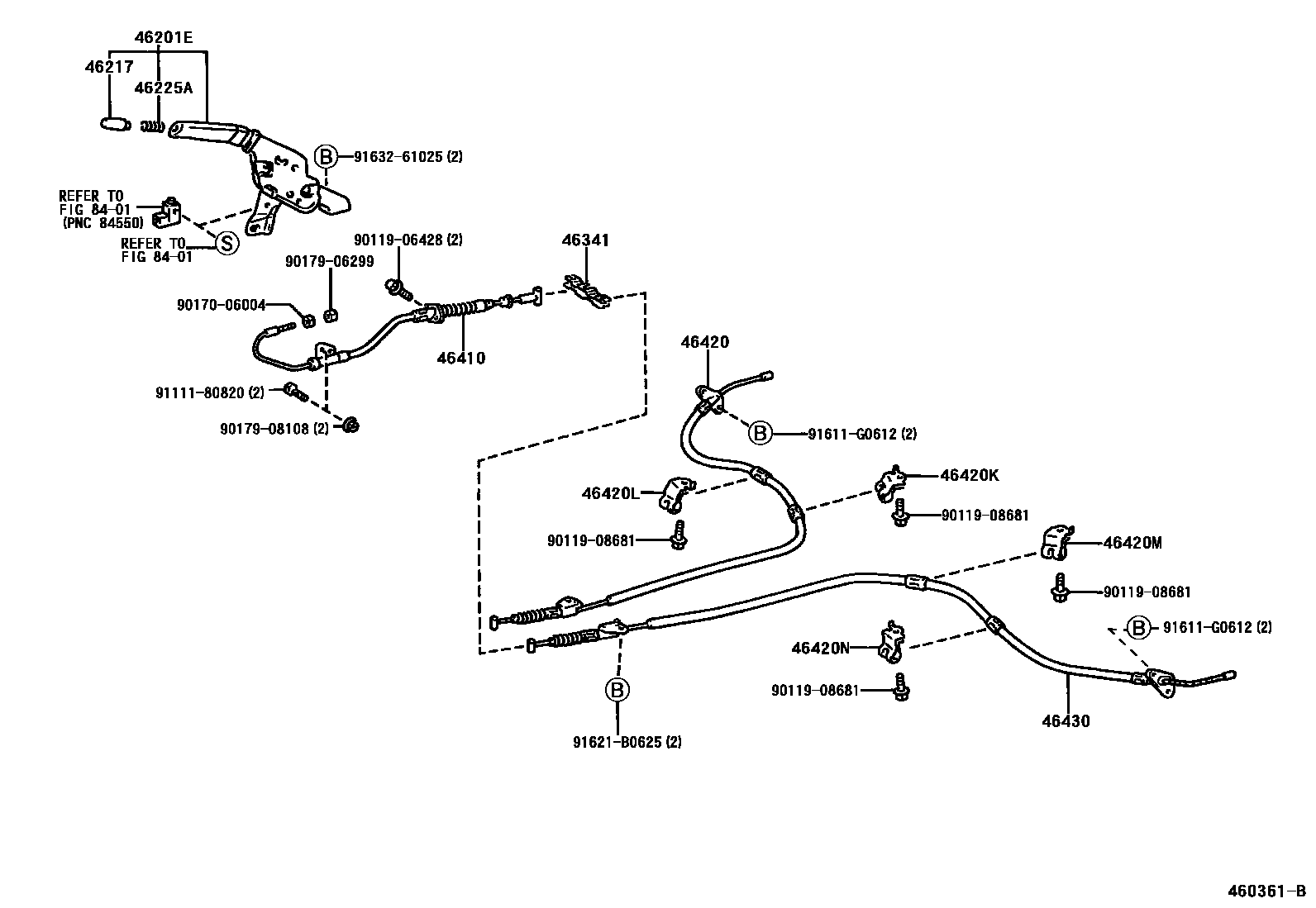

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-22310-C0iGX11#,JZX110200106-200404

BLACK,TRIM1#,2#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-53010iGX11#,JZX110200106-200404

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90504-12005iGX11#,JZX110200106-200404

46341EQUALIZER, PARKING BRAKE

main46341-24010iGX11#,JZX110200106-200404

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22280iGX11#,JZX110200106-200404

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-51011iGX11#,JZX110200106-200404

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46421-51010iGX11#,JZX110200106-200404

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46421-51020iGX11#,JZX110200106-200404

46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)

main46431-51010iGX11#,JZX110200106-200404

46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)

main46431-51020iGX11#,JZX110200106-200404

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-51011iGX11#,JZX110200106-200404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906428

main90119-06428

9011908681

main90119-08681

9017006004

main90170-06004

9017906299

main90179-06299

9017908108

main90179-08108

9111180820

main91111-80820

91611G0612

main91611-G0612

91621B0625

main91621-B0625

9163261025

main91632-61025

21 parts on this diagram · 2 diagrams in section
