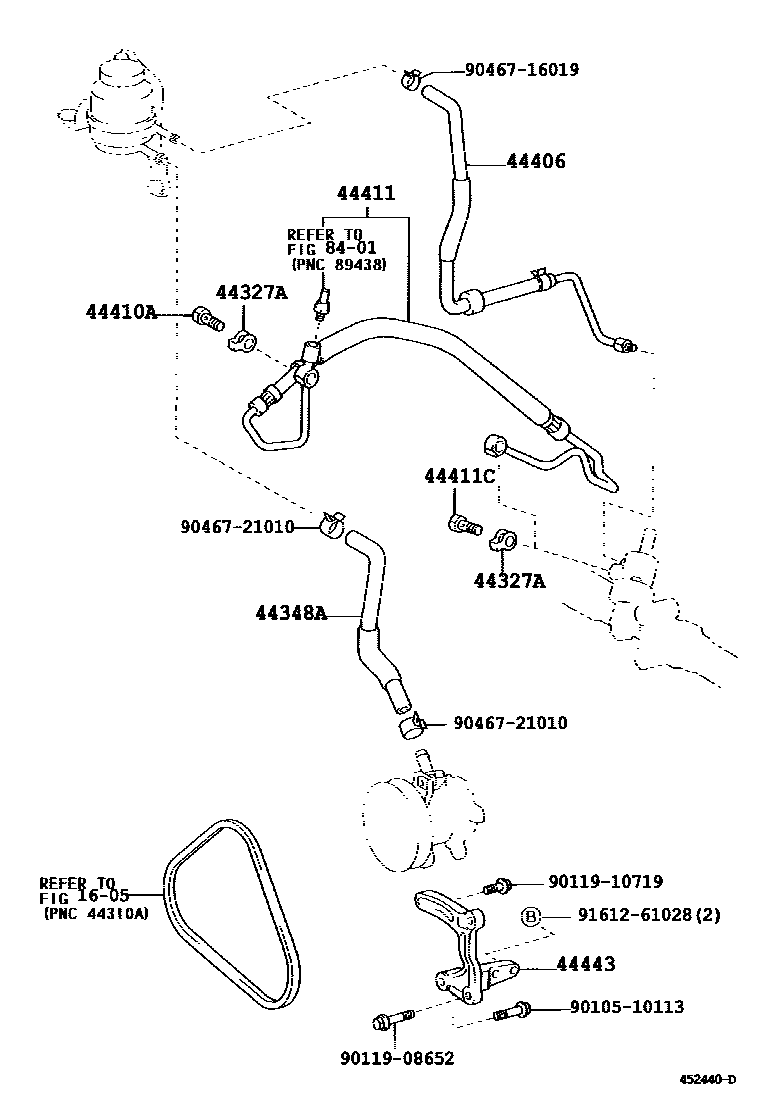

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605V-BELT

→ Go to FIG 16-05

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iJZX110200106-200404

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-22370iGX11#200106-200404

main44348-30230iJZX110..VR25200106-200404

44406TUBE SUB-ASSY, RETURN

main44406-22390iGX110200106-200404

44410TUBE ASSY, PRESSURE FEED

main44410-22640iJZX110..VR25200106-200404

main44410-22650iGX115200106-200404

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main90401-16024iGX11#200106-200404

main90401-16034iJZX110200106-200404

44411HOSE, PRESSURE FEED

main44411-22740iGX110200106-200404

main44411-22750iJZX110..5FC200106-200404

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iGX11#,JZX110200106-200404

44443BRACKET, PUMP

main44443-22150iGX11#200106-200404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010510113

main90105-10113

9011908652

main90119-08652

9011910719

main90119-10719

9046716019

main90467-16019

9046721010

main90467-21010

9161261028

main91612-61028

16 parts on this diagram · 4 diagrams in section
