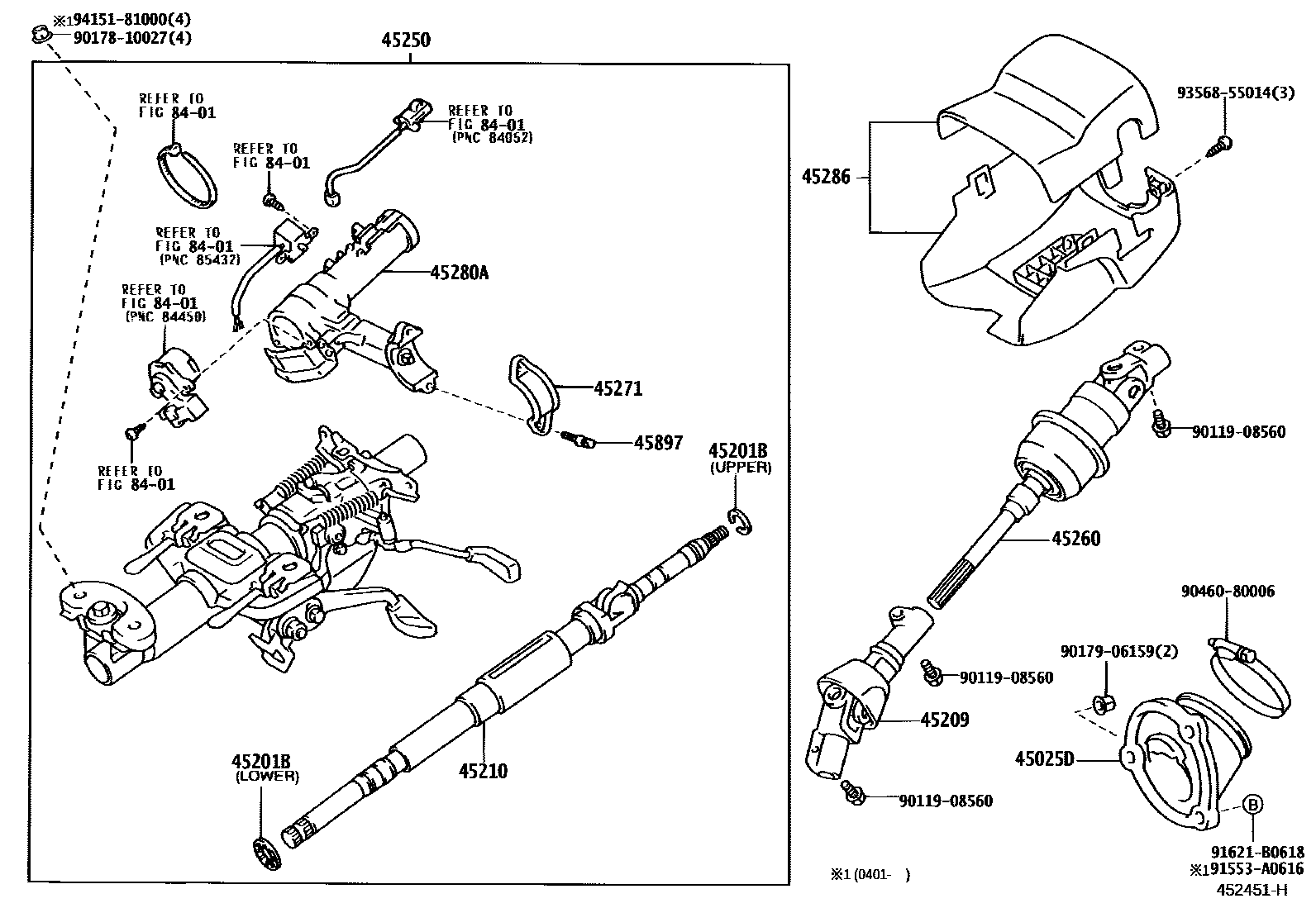

STEERING COLUMN & SHAFT

0001 1��(��� & �������� �������) 0003 1��(��� �������)

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-30330iGX115200106-200404

main45025-51010iGX110,JZX110200106-200404

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iGX110;JZX110..(5F,5FC)..(25,VR25); GX115,JZX110..ATM..(20,V25,VR25)200106-200404

main90905-20003iGX115,JZX110..20,V25,VR25200106-200404

45209YOKE SUB-ASSY, STEERING SLIDING

main45206-30070iGX115200106-200404

main45206-51010iGX110,JZX110200106-200404

45210SHAFT ASSY, STEERING MAIN

main45210-22270iGX11#,JZX110..20,25200106-200404

main45210-50050iGX115,JZX110..20,V25,VR25200106-200201

main45210-50051iGX115,JZX110..20,V25,VR25200201-200404

45250COLUMN ASSY, STEERING

main45250-2A810iGX110200204-200212

main45250-2A820iJZX110..5F200106-200404

main45250-2A830iGX11#,JZX110..20,25200106-200404

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-22340iJZX110..VR25200106-200404

main45260-22350iGX115200106-200404

main45260-22360iGX110,JZX110..20,25,V25200106-200404

45271CLAMP, STEERING COLUMN, UPPER

main45271-12060iGX11#,JZX110..20,25200106-200404

main45271-22010iGX110200204-200212

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-22530iGX11#,JZX110..20,25200106-200404

main45280-22550iGX115,JZX110..ATM..(20,V25,VR25)200106-200404

main45280-22560iJZX110..5F200106-200404

45286COVER, STEERING COLUMN

main45286-22951-B1iGX11#,JZX110..20,25; JZX110..V25,VR25200106-200404

SADDLE GRAY,TRIM0#,1#; SADDLE GRAY,TRIM1#

main45286-22951-C0iGX11#,JZX110..20,25; JZX110..V25,VR25200106-200404

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020×2iGX11#,JZX110200106-200404

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908560

main90119-08560

9017810027

main90178-10027

9017906159

main90179-06159

9046080006

main90460-80006

91553A0616

main91553-A0616

91621B0618

main91621-B0618

9356855014

main93568-55014

9415181000

main94151-81000

19 parts on this diagram · 2 diagrams in section
