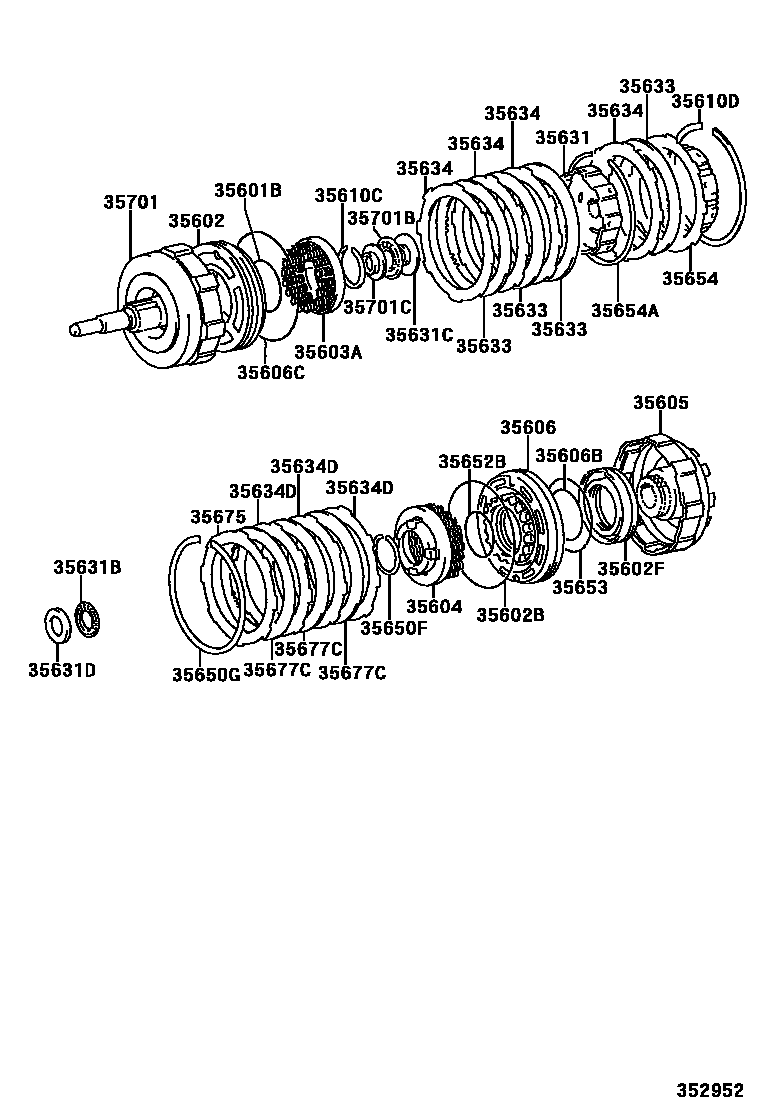

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35601BRING, O (FOR FRONT CLUTCH DRUM)
35602PISTON SUB-ASSY, FRONT CLUTCH
35602BRING, O (FOR FORWARD CLUTCH PISTON)
35602FPISTON SUB-ASSY, REAR CLUTCH, NO.2
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35604SPRING SUB-ASSY, DIRECT CLUTCH RETURN
35605DRUM SUB-ASSY, REAR CLUTCH W/2ND SUN GEAR
35606PISTON SUB-ASSY, REAR CLUTCH
35606BRING (FOR REAR CLUTCH PISTON INNER)
35606CRING, O (FOR DIRECT CLUTCH PISTON)
35610CRING, SHAFT SNAP (FOR FRONT CLUTCH PISTON RETURN SPRING)
35610DRING, HOLE SNAP (FOR FRONT MULTIPLE DISC CLUTCH)
35631HUB, CLUTCH(FOR MULTIPLE DISC CLUTCH)
35631BBEARING, THRUST(FOR FRONT CLUTCH HUB)
35631CRACE, THRUST BEARING(FOR FRONT CLUTCH HUB FRONT)
35631DRACE, THRUST BEARING(FOR FRONT CLUTCH HUB REAR)
35633DISC, CLUTCH (FOR FRONT CLUTCH)
35634DPLATE, REAR CLUTCH
35650FRING, SHAFT SNAP
35650GRING, SHAFT SNAP (FOR REAR CLUTCH PISTON RETURN SPRING)
35652BRING (FOR REAR CLUTCH PISTON INNER)
35653RING, REAR CLUTCH OIL SEAL, OUTER
35654HUB, REAR CLUTCH
35654ARING, HOLE SNAP (FOR REAR CLUTCH HUB)
35675FLANGE, REAR CLUTCH
35677CDISC, REAR CLUTCH
35701SHAFT SUB-ASSY, INPUT
35701BBEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT REAR)
35701CRACE, THRUST BEARING (FOR INPUT SHAFT REAR)
30 parts on this diagram · 3 diagrams in section
