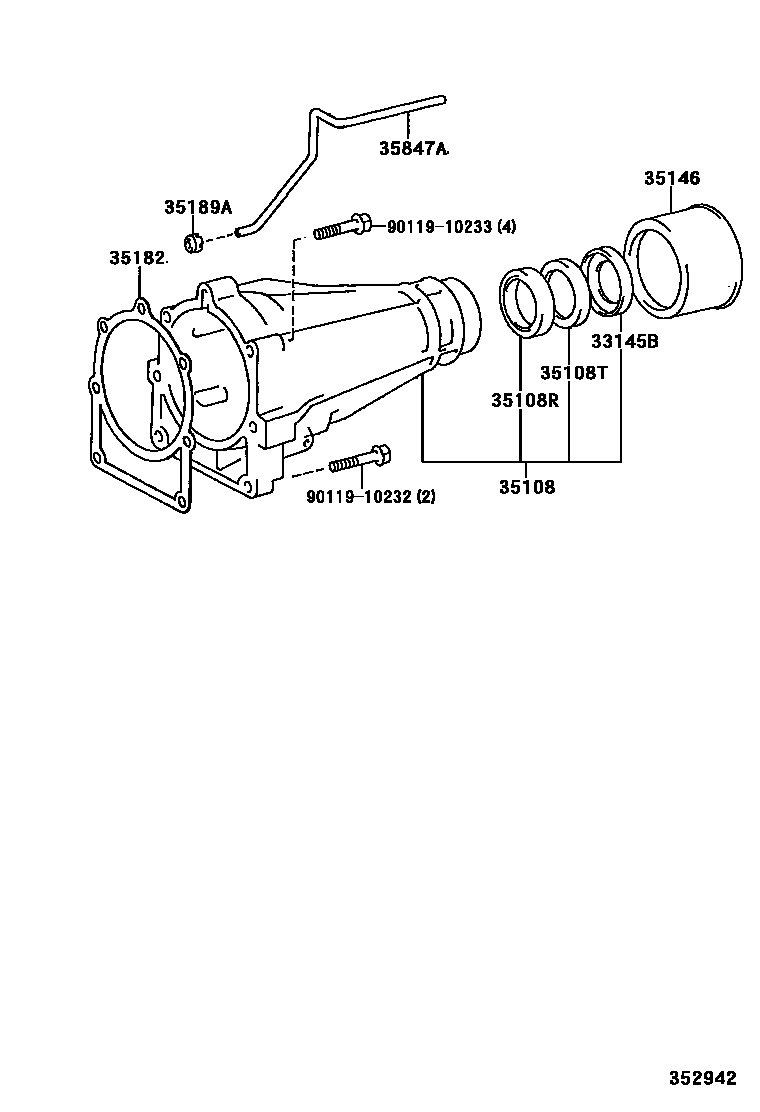

EXTENSION HOUSING (ATM)

0001 1A42DE 0002 1A650E 0003 1A340E,A343E

33145BRETAINER, EXTENSION HOUSING DUST SEAL

main33145-30010iGX110200106-200404

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-22090iGX110200106-200404

main35108-30190iJZX110..4FC200106-200404

main35180-30040iJZX110..5FC200106-200404

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38032iGX110200106-200404

main90311-40001iJZX110..ATM200106-200404

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iGX110200106-200404

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30020iGX110,JZX110..ATM200106-200404

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iGX110,JZX110..4FC200106-200404

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iGX110,JZX110..4FC200106-200404

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iGX110,JZX110..4FC200106-200404

9011910232

main90119-10232

9011910233

main90119-10233

10 parts on this diagram · 3 diagrams in section
