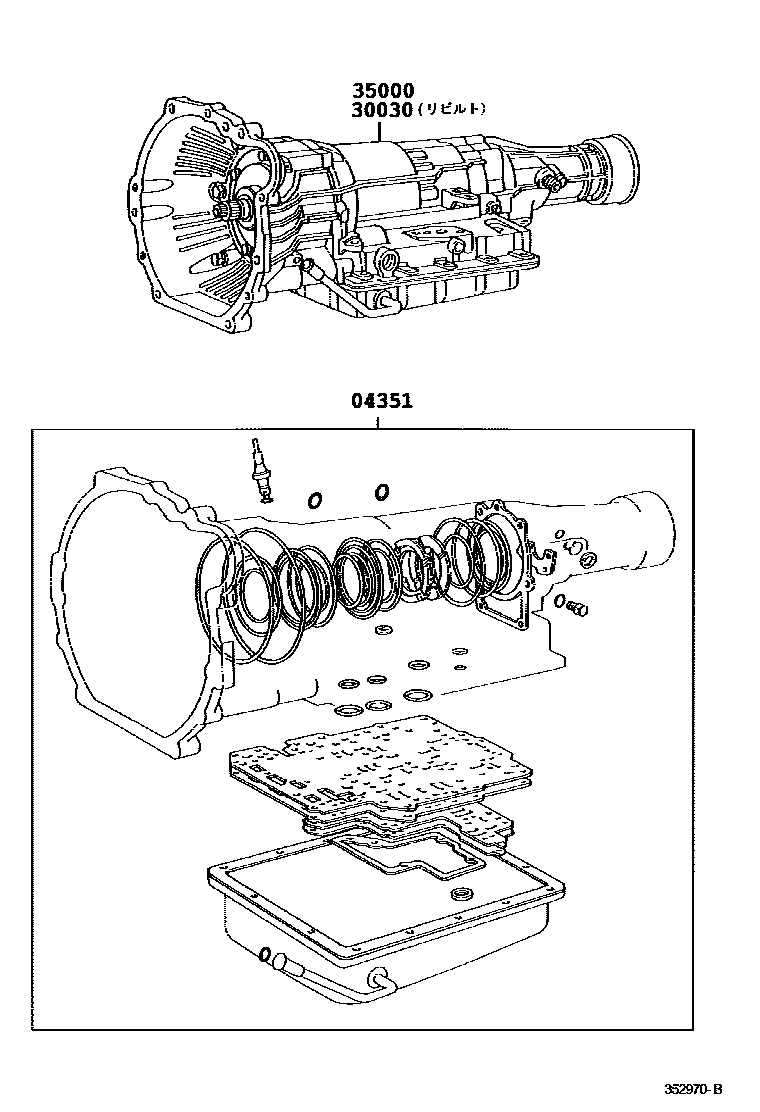

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1A42DE 0002 1A340H 0003 1A340E,A343E 0004 1A650E

04351GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL

main04351-22150iJZX110..4FC200106-200210

main04351-22151iJZX110..4FC200210-200311

main04351-22160iGX115200106-200210

main04351-22161iGX115200210-200311

main04351-22180iJZX110..5FC200106-200210

main04351-22181iJZX110..5FC200210-200404

main04351-23010iGX110200106-200404

30030TRANSMISSION ASSY, REBUILT

main30030-2C370iJZX110..5FC200106-200404

main30030-2C380iJZX110..4FC200106-200311

main30030-2C400iGX110200106-200404

35000TRANSMISSION ASSY, AUTOMATIC

main35000-2C370iJZX110..5FC200106-200404

main35000-2C380iJZX110..4FC200106-200404

main35000-2C400iGX110200106-200404

3 parts on this diagram · 4 diagrams in section
