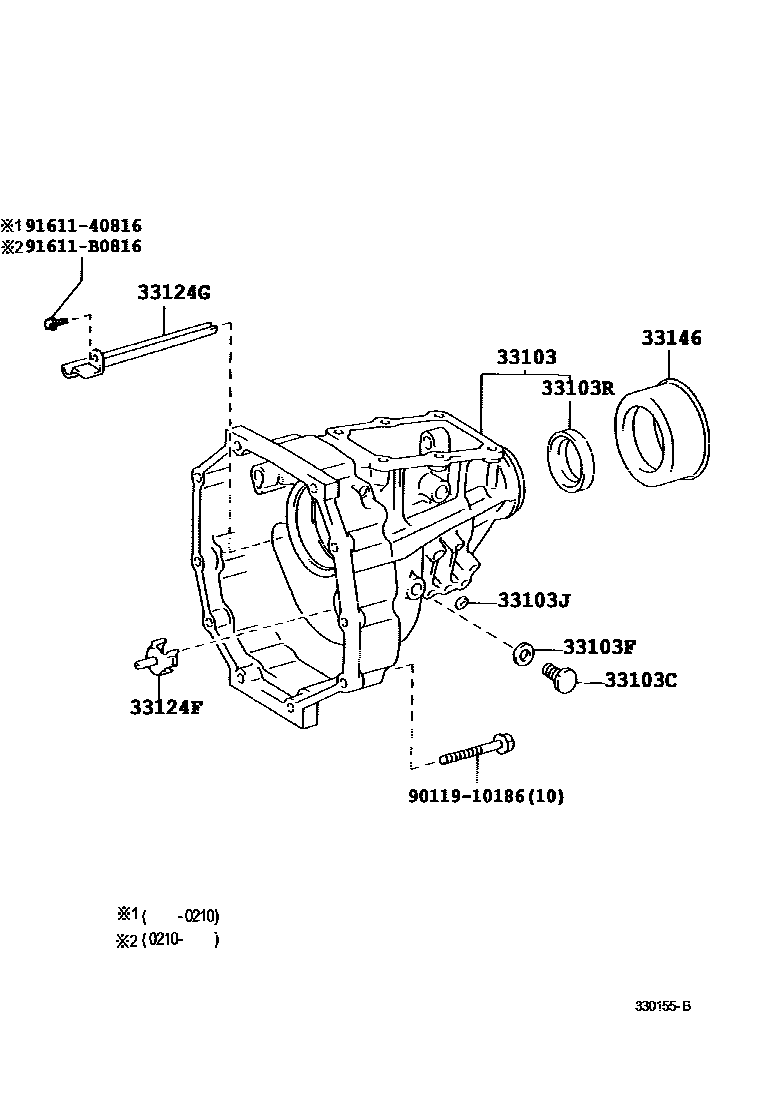

EXTENSION HOUSING (MTM)
33103HOUSING SUB-ASSY, EXTENSION(MTM)
33103CPLUG, NO.1(FOR EXTENSION HOUSING)
33103FGASKET(FOR EXTENSION HOUSING PLUG NO.1)
33103JPLUG, TIGHT(FOR EXTENSION HOUSING)
33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)
9011910186
main90119-10186
9161140816
main91611-40816
91611B0816
main91611-B0816
11 parts on this diagram · 1 diagram in section
