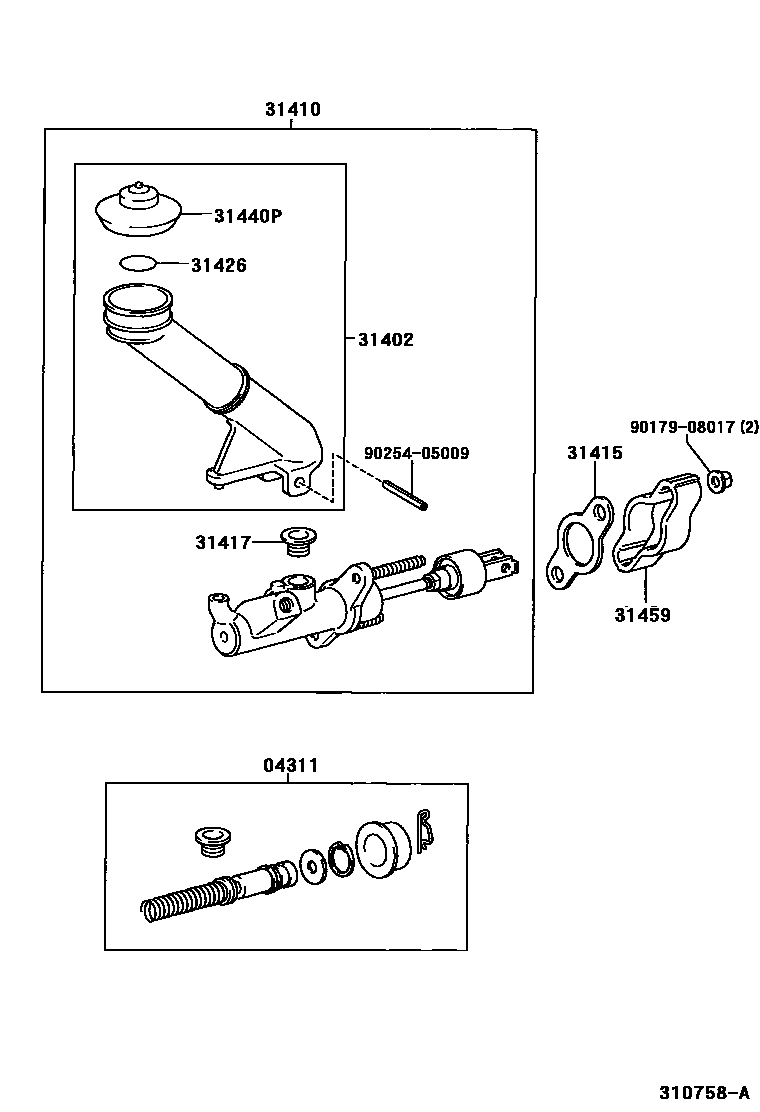

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110i200106-200404

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-53010i200106-200404

31410CYLINDER ASSY, CLUTCH MASTER

main31410-22330i200106-200404

31415GASKET, CLUTCH MASTER CYLINDER

main31415-10010i200106-200404

31417GROMMET, CLUTCH RESERVOIR

main31417-35010i200106-200404

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-22020i200106-200404

31440PCAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main47230-20040i200106-200404

31459BRACKET, CLUTCH MASTER CYLINDER

main31459-22020i200106-200404

9017908017

9025405009

10 parts on this diagram · 1 diagram in section
