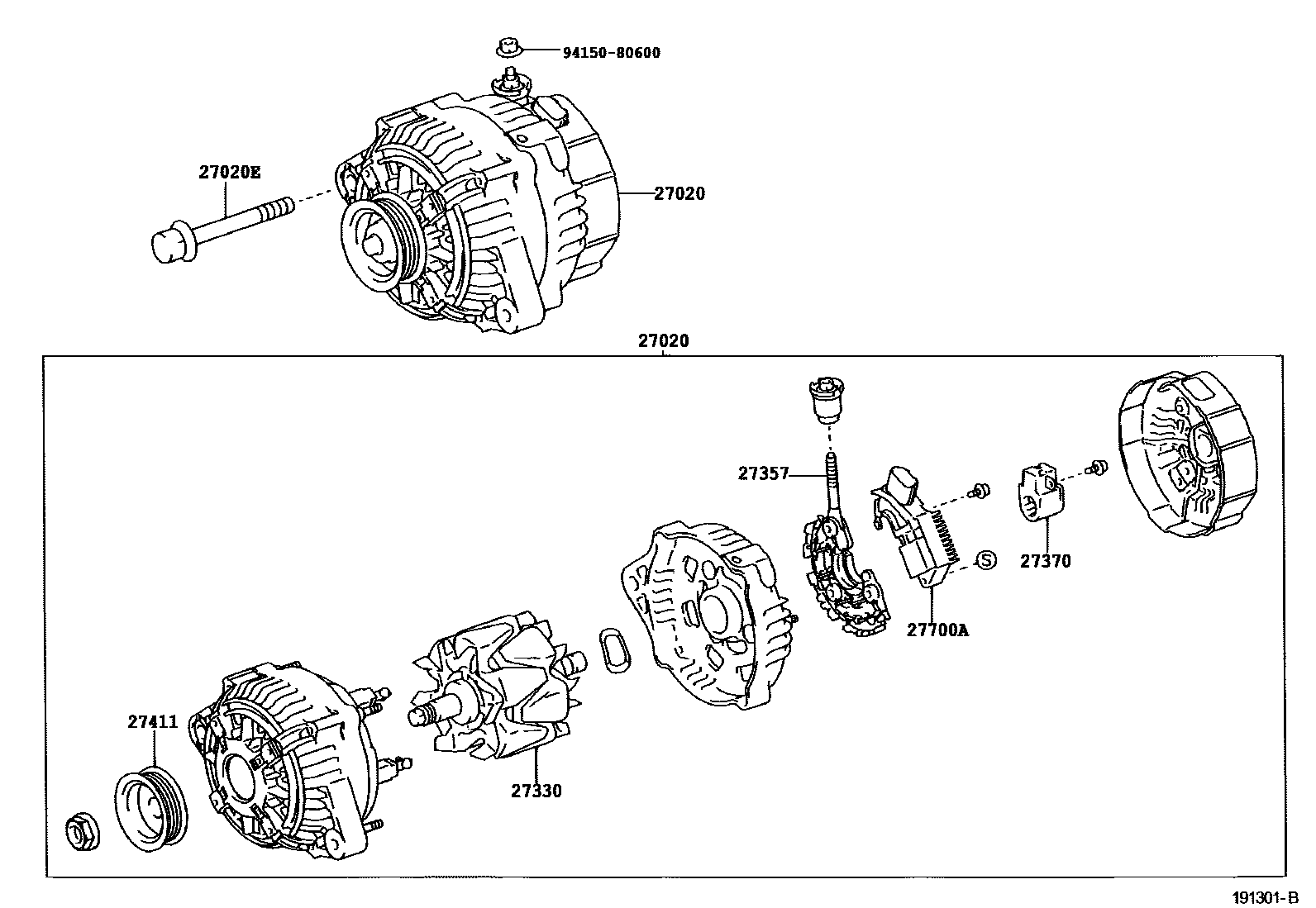

ALTERNATOR

0001 112V 80A 0002 112V 100A 0003 112V 130A

27020ALTERNATOR ASSY

main27060-46300i1JZGTE..JZX110..5F200106-200404

main27060-46320i1JZ#..JZX110..ATM200106-200404

main27060-70510i1GFE..GX11#200106-200404

27020EBOLT(FOR ALTERNATOR)

main90105-10499i1GFE..GX11#200106-200404

main91512-61050i1JZ#..JZX110200106-200404

27330ROTOR ASSY, ALTERNATOR

main27330-20130i1JZ#..JZX110..ATM200106-200404

main27330-62180i1JZGTE..JZX110..5F200106-200404

main27330-70470i1GFE..GX11#200106-200404

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-22050i1GFE..GX11#200106-200404

main27357-46310i1JZGTE..JZX110..5F200106-200404

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-20130i1JZ#..JZX110..ATM200106-200404

main27370-75060i1GFE..GX11#;1JZGTE..JZX110..5F200106-200404

27411PULLEY, ALTERNATOR

main27411-46080i1JZ#..JZX110200106-200404

main27411-70330i1GFE..GX11#200106-200404

27700AREGULATOR ASSY, GENERATOR

main27700-46050i1GFE..GX11#200106-200404

main27700-46060i1JZGTE..JZX110..5F200106-200404

9415080600

main94150-80600

8 parts on this diagram · 3 diagrams in section
