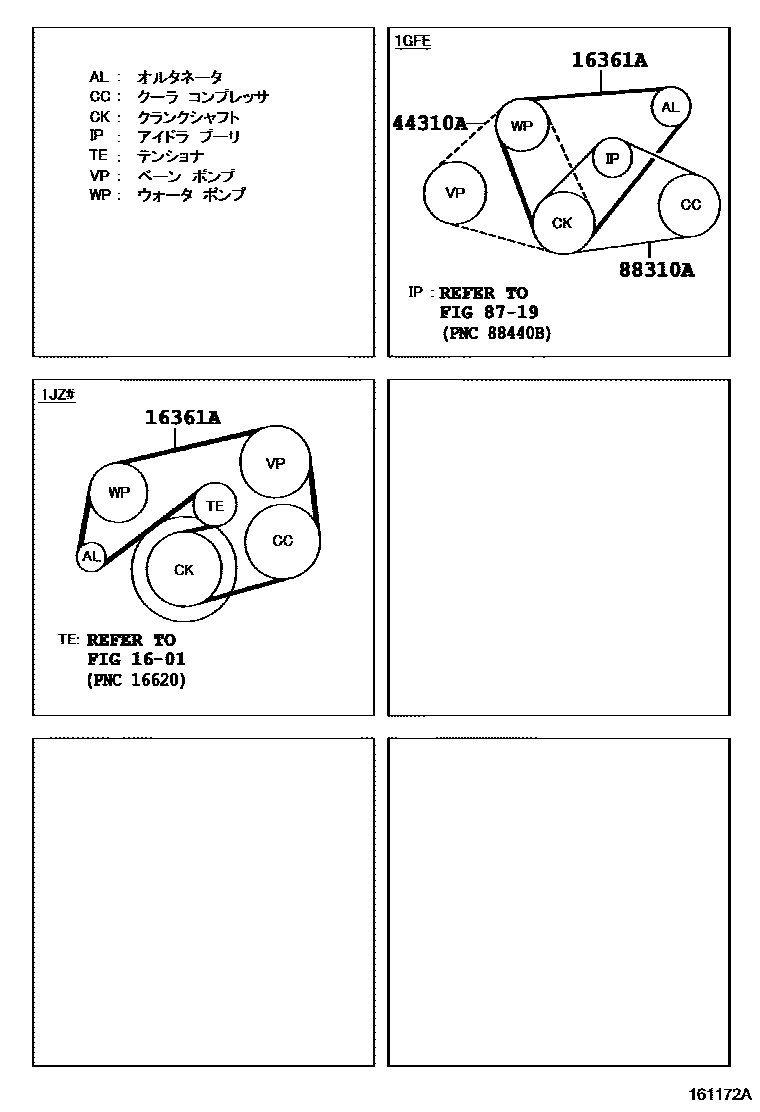

V-BELT

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02310i1JZGTE..JZX110200106-200404

main90916-02471i1GFE..GX11#200106-200404

main90916-02514i1JZFSE..JZX110200106-200404

main99364-81070i1GFE..GX11#200106-200111

44310ABELT, V(FOR VANE PUMP)

main99363-00890iGX11#200106-200404

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99364-90880iGX11#200106-200404

5 parts on this diagram · 1 diagram in section
