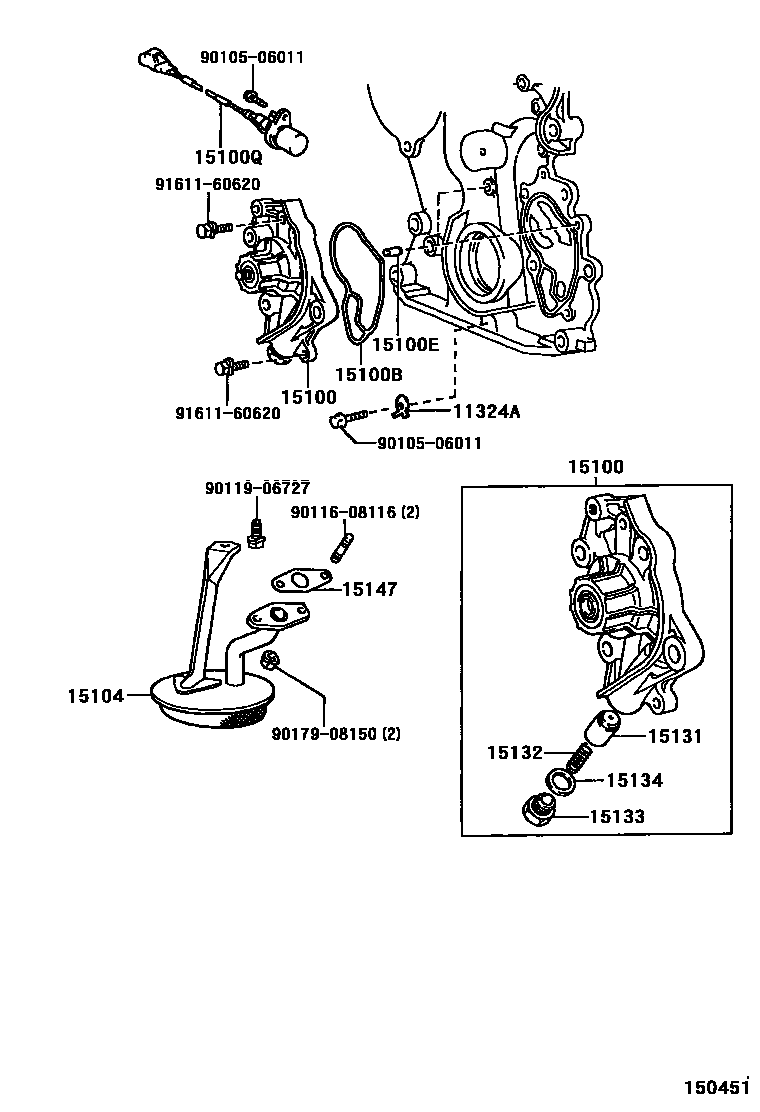

ENGINE OIL PUMP

0001 1 0002 1 0003 1

11324APLATE, TIMING BELT

main11324-46010i1JZGTE..JZX110200106-200404

main11324-46030i1JZFSE..JZX110200106-200404

main11324-70020i1GFE..GX11#200106-200404

15100PUMP ASSY, OIL

main15100-46030i1JZGTE..JZX110200106-200404

main15100-46111i1JZFSE..JZX110200106-200404

main15100-70050i1GFE..GX11#200106-200404

15100BRING, O(FOR OIL PUMP)

main15188-70060i1GFE..GX11#200106-200404

main96721-24022i1JZ#..JZX110200106-200404

main96721-24031i1JZ#..JZX110200106-200404

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010×2i1GFE..GX11#200106-200404

15100QSENSOR, CRANK POSITION

main90919-05023i1GFE..GX11#; 1JZGTE..JZX110200106-200404

15104STRAINER SUB-ASSY, OIL

main15104-46070i1JZ#..JZX110200106-200404

main15104-70070i1GFE..GX115200106-200404

main15104-70080i1GFE..GX110200106-200404

15131VALVE, OIL PUMP RELIEF

main15131-17010i1JZFSE..JZX110200106-200404

main15131-24010i1GFE..GX11#200106-200404

main15131-46030i1JZGTE..JZX110200106-200404

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1GFE..GX11#200106-200404

main15132-46030i1JZGTE..JZX110200106-200404

main15132-46060i1JZFSE..JZX110200106-200404

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1JZFSE..JZX110200106-200404

main15133-20010i1GFE..GX11#200106-200404

main15133-46030i1JZGTE..JZX110200106-200404

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67010i1GFE..GX11#200106-200404

main15134-67020i1JZFSE..JZX110200106-200404

15147GASKET, OIL STRAINER

main15147-46010i1JZ#..JZX110200106-200404

main15147-70030i1GFE..GX11#200106-200404

9010506011

main90105-06011

9011608116

main90116-08116

9011906727

main90119-06727

9017908150

main90179-08150

9161160620

main91611-60620

16 parts on this diagram · 3 diagrams in section
