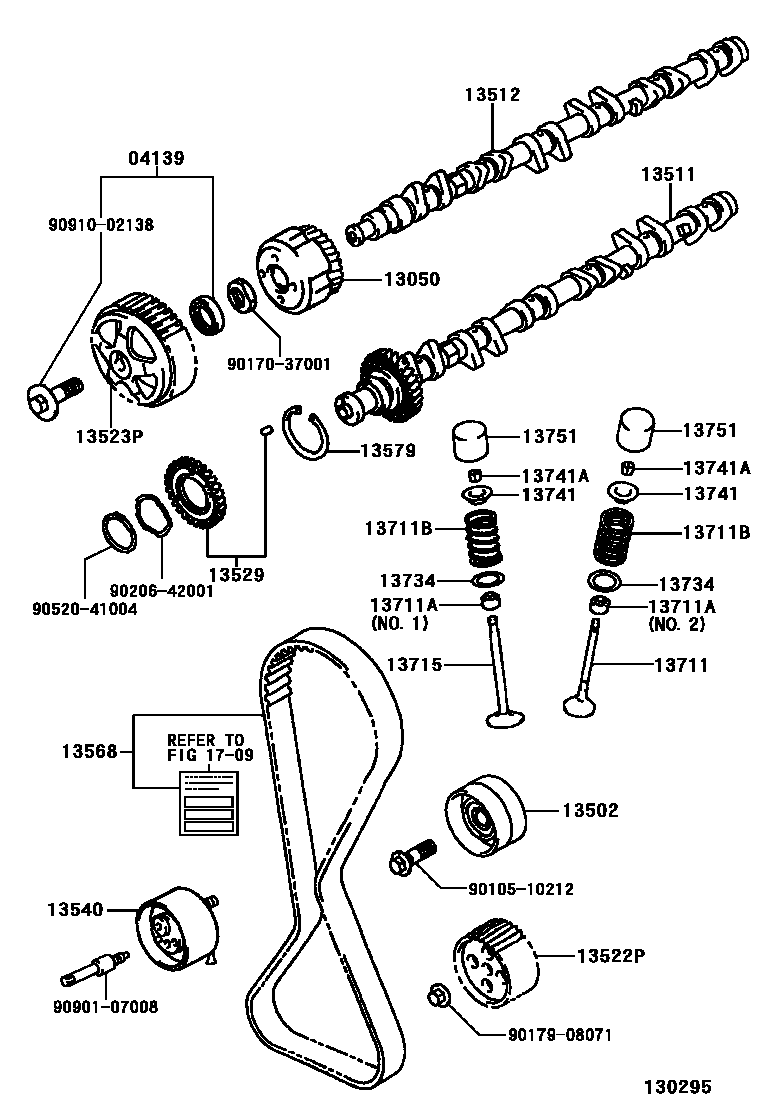

CAMSHAFT & VALVE
04139BOLT KIT, CAMSHAFT TIMING PULLEY
13050GEAR ASSY, CAMSHAFT TIMING
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13511CAMSHAFT
13512CAMSHAFT, NO.2
13522PPULLEY, PUMP DRIVE SHAFT
13523PPULLEY, CAMSHAFT TIMING
13529GEAR, CAMSHAFT SUB
13568BELT, TIMING
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
13715VALVE, EXHAUST
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13751LIFTER, VALVE
sub13751-21020
sub13751-21030
sub13751-21040
sub13751-21050
sub13751-21060
sub13751-21070
sub13751-21080
sub13751-21090
sub13751-21100
sub13751-21110
sub13751-21120
sub13751-21130
sub13751-21140
sub13751-21150
sub13751-21160
sub13751-21170
sub13751-21180
sub13751-21190
sub13751-21200
sub13751-21210
sub13751-21220
sub13751-21230
sub13751-21240
sub13751-21250
sub13751-21260
sub13751-21270
sub13751-21280
sub13751-21290
sub13751-21300
sub13751-21310
sub13751-21320
sub13751-21330
sub13751-21340
sub13751-21350
sub13751-21360
sub13751-46030
sub13751-46040
sub13751-46050
sub13751-46060
sub13751-46070
sub13751-46080
sub13751-46090
sub13751-46100
sub13751-46110
sub13751-46120
sub13751-46130
sub13751-46140
sub13751-46150
sub13751-46160
sub13751-46170
sub13751-46180
sub13751-46190
sub13751-46200
sub13751-46210
sub13751-46220
sub13751-46230
sub13751-46240
sub13751-46250
sub13751-46260
sub13751-46270
sub13751-46280
sub13751-46290
sub13751-46300
sub13751-46310
sub13751-46320
sub13751-46330
sub13751-46340
sub13751-46350
sub13751-46360
sub13751-46370
1709
9010510212
main90105-10212
9017037001
main90170-37001
9017908071
main90179-08071
9020642001
main90206-42001
9052041004
main90520-41004
9090107008
main90901-07008
9091002138
main90910-02138
27 parts on this diagram · 3 diagrams in section
