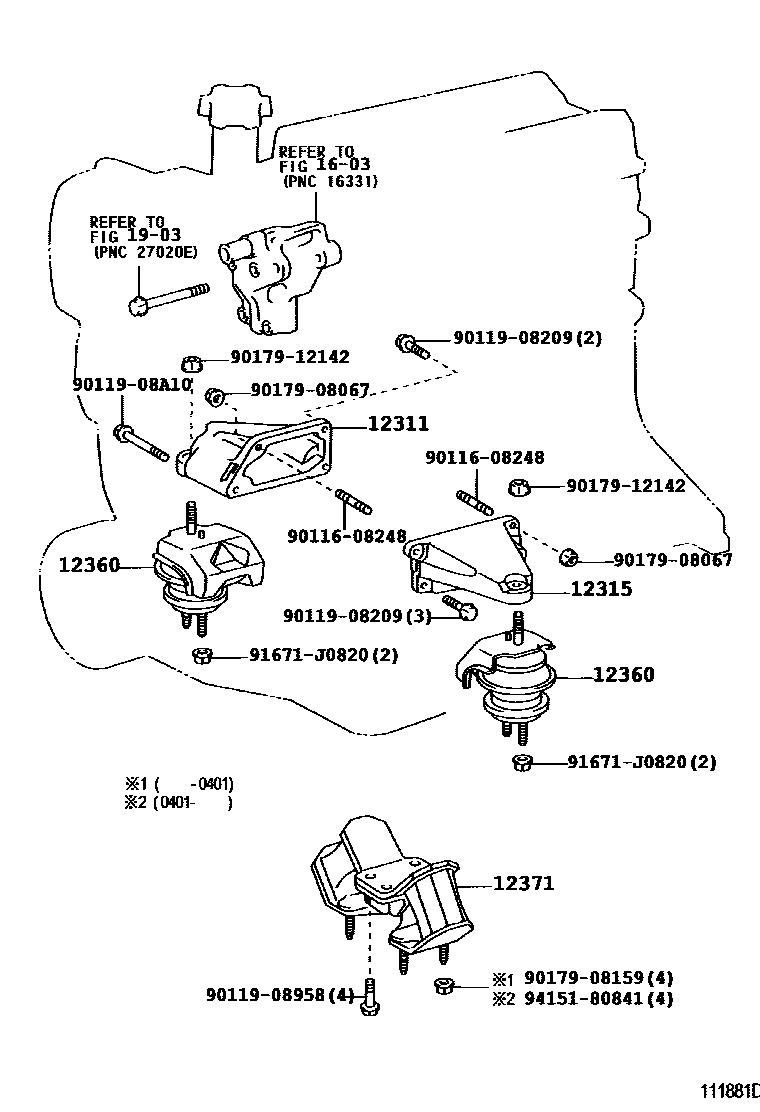

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46140i1JZ#..JZX110200106-200404

main12311-70140i1GFE..GX115200106-200404

main12311-70150i1GFE..GX110200106-200404

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46120i1JZ#..JZX110200106-200404

main12315-70120i1GFE..GX115200106-200404

main12315-70130i1GFE..GX110200106-200404

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-46080i1GFE..GX115200106-200404

main12360-46200×2i1JZGTE..JZX110200106-200404

main12360-46210×2i1JZFSE..JZX110200106-200404

main12360-70040×2i1GFE..GX110200106-200404

main12380-46030i1GFE..GX115200106-200404

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46050i1GFE..GX110200106-200404

main12371-46130i1GFE..GX115200106-200111

main12371-46210i1JZ#..JZX110..ATM200106-200404

main12371-46220i1JZGTE..JZX110..5F200106-200404

main12371-46240i1GFE..GX115200111-200404

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1903ALTERNATOR

→ Go to FIG 19-03

9011608248

main90116-08248

9011908209

main90119-08209

9011908958

main90119-08958

9011908A10

main90119-08A10

9017908067

main90179-08067

9017908159

main90179-08159

9017912142

main90179-12142

91671J0820

main91671-J0820

9415180841

main94151-80841

15 parts on this diagram · 3 diagrams in section
