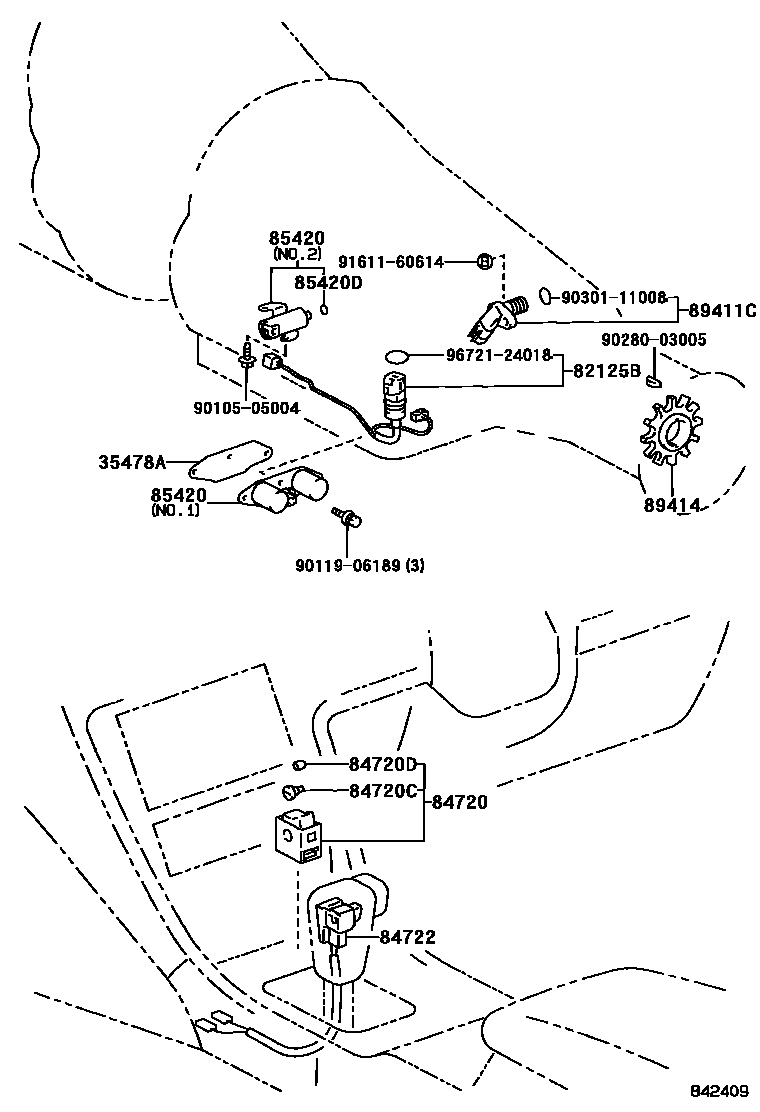

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

35478AGASKET, SHIFT CONTROL SOLENOID

main35478-30010iGX100..ATM199609-199808

82125BWIRE, TRANSMISSION

main82125-22230iJZX100..EXC,EXCG,ROU,SLT199609-200106

main82125-22240iJZX105199609-199808

main82125-22250iGX100199808-200106

main82125-22260iGX105199808-200106

main82125-22270iJZX105199808-200106

main82125-24070iJZX100..ROUG199609-200106

main82125-24090iJZX101199609-199808

main82125-28010iGX100..ATM199609-199808

main82125-30460iJZX100..ROUS199808-200106

main82125-40050iJZX101199808-200106

84720SWITCH ASSY, PATTERN SELECT

main84720-22180iGX100,JZX100..ATM..(EXC,EXCG,ROU,SLT)199609-199808

main84720-22190iJZX105;JZX100..ROUG199609-199808

main84720-22200iJZX101199609-199808

main84720-22210iGX100,JZX100..ROU,ROUS199808-200106

main84720-22220iJZX100..ROUG199808-200106

84720CBULB(FOR PATTERN SELECT SWITCH)

main84999-10710iGX100,JZX10#..ATM199609-199808

main90010-01034iGX100,JZX100..ROU,ROUG,ROUS199808-200106

84720DCAP, PATTERN SELECT SWITCH

main84998-10670iGX10#,JZX10#..EXC,EXCG,SLT199808-200106

84722SWITCH, TRANSMISSION CONTROL

main84722-22170-E0iGX105,JZX105199609-200106

ORCHID BROWN,TRIM4#

main84722-22170-G0iGX105,JZX105199609-200106

DK.SAGE,TRIM6#

main84722-22180iGX100,JZX100..ROU,ROUG,ROUS199609-200106

main84722-22190-E0iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SLT)199609-200106

ORCHID BROWN,TRIM4#

main84722-22190-G0iGX100,JZX100,101,LX100..ATM..(EXC,EXCG,SC,SLT)199609-200106

DK.SAGE,TRIM6#

85420SOLENOID ASSY, TRANSMISSION

main85420-22130×2iGX100199808-200106

main85420-22140iGX105,JZX100,105..EXC,EXCG,ROUG,SLT199808-200106

main85420-22150iGX105,JZX100,105..EXC,EXCG,ROUG,SLT199808-200106

main85420-22160iGX105,JZX100,105..EXC,EXCG,ROUG,SLT199808-200106

main85420-22170iGX105,JZX100,105..EXC,EXCG,ROUG,SLT199808-200106

main85420-24010iJZX100,105199609-199808

NO.1,NIPPONDENSO

main85420-24020iJZX100,105199609-199808

main85420-24030iJZX100,105199609-199808

NO.2,NIPPONDENSO

main85420-24040iJZX100,105199609-199808

main85420-30050iGX100..ATM199609-199808

main85420-30070iGX100..ATM199609-199808

main85420-30160iLX100199609-199908

main85420-30220iJZX105199609-199808

main85420-30240iJZX100..ROUS199808-200106

main85420-30250iJZX100..ROUS199808-200106

main85420-30260iJZX100..ROUS199808-200106

main85420-30270iJZX100..ROUS199808-200106

main85420-50020×2iJZX101199609-200106

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004×2iGX100..ATM; JZX100,101; JZX105199609-199808

main90301-11001iLX100199609-199908

main90301-23001iLX100199609-199908

89411CSENSOR, SPEED

main89411-50010iGX100..ATM199609-200106

89414ROTOR, SENSOR

main89414-22020iGX100199812-200106

main89414-22030iGX105,JZX105199808-200106

main89414-22040iGX100199808-199812

main89414-30040iJZX100,101199609-200106

9010505004

main90105-05004

9011906189

main90119-06189

9028003005

main90280-03005

9030111008

main90301-11008

9161160614

main91611-60614

9672124018

main96721-24018

16 parts on this diagram · 8 diagrams in section
