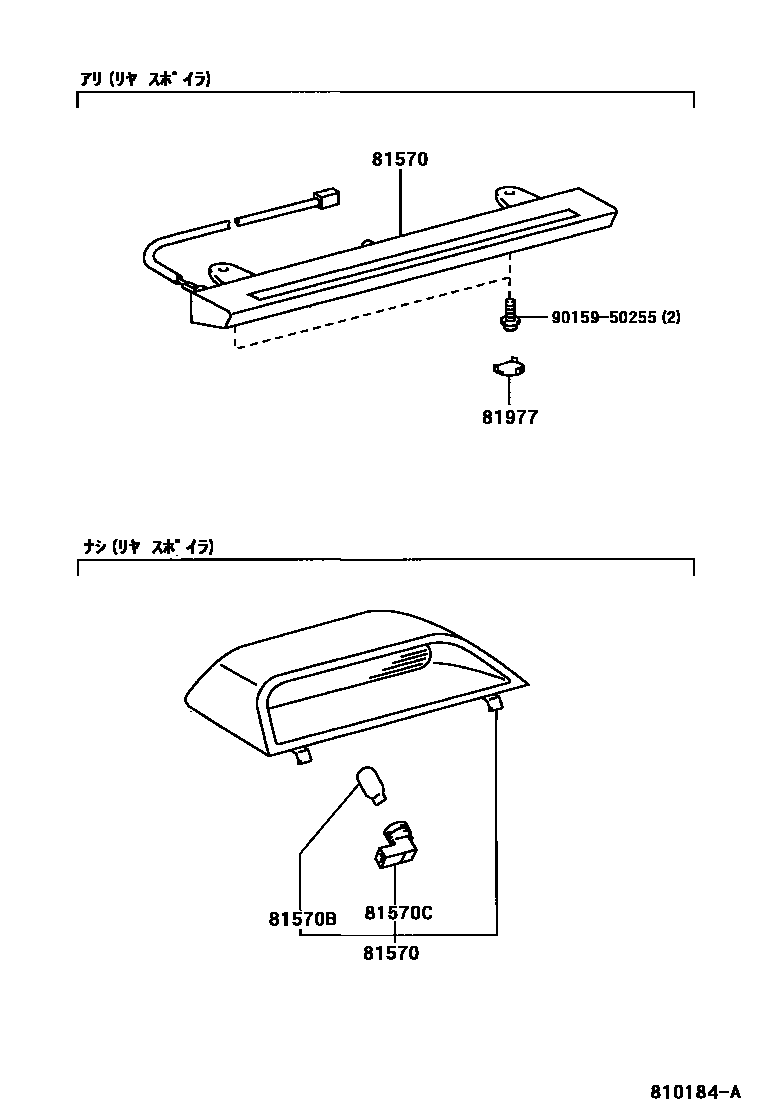

CENTER STOP LAMP

81570LAMP ASSY, CENTER STOP

main81570-22130-B0iJZX100..ROU,ROUG199609-199808

DK.BLUE GRAY,TRIM1#

main81570-22130-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

BLACK,TRIM2#

main81570-22130-E0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

ORCHID BROWN,TRIM4#

main81570-22130-G0iGX10#,JZX10#,LX100..EXC,EXCG,SC,SLT199609-200106

DK.SAGE,TRIM6#

main81570-22140-B0iJZX100..ROU,ROUG199609-199808

main81570-22140-C0iGX100,JZX100..ROU,ROUG,ROUS199808-200106

main81570-22140-E0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

main81570-22140-G0iGX10#,JZX10#,LX100..EXC,EXCG,SLT199609-200106

main81570-22160iGX100..ATM..SLT199708-199709

81570BBULB (FOR CENTER STOP LAMP)

main90981-11039iGX100,JZX10#,LX100199609-199808

main90981-11059iGX10#,JZX10#,LX100199808-200106

81570CSOCKET, CENTER STOP LAMP

main90075-99005iGX10#,JZX10#,LX100199609-200106

81977COVER, CENTER STOP LAMP

main81977-22040×2iGX100..ATM..SLT199708-199709

9015950255

main90159-50255

5 parts on this diagram · 1 diagram in section
