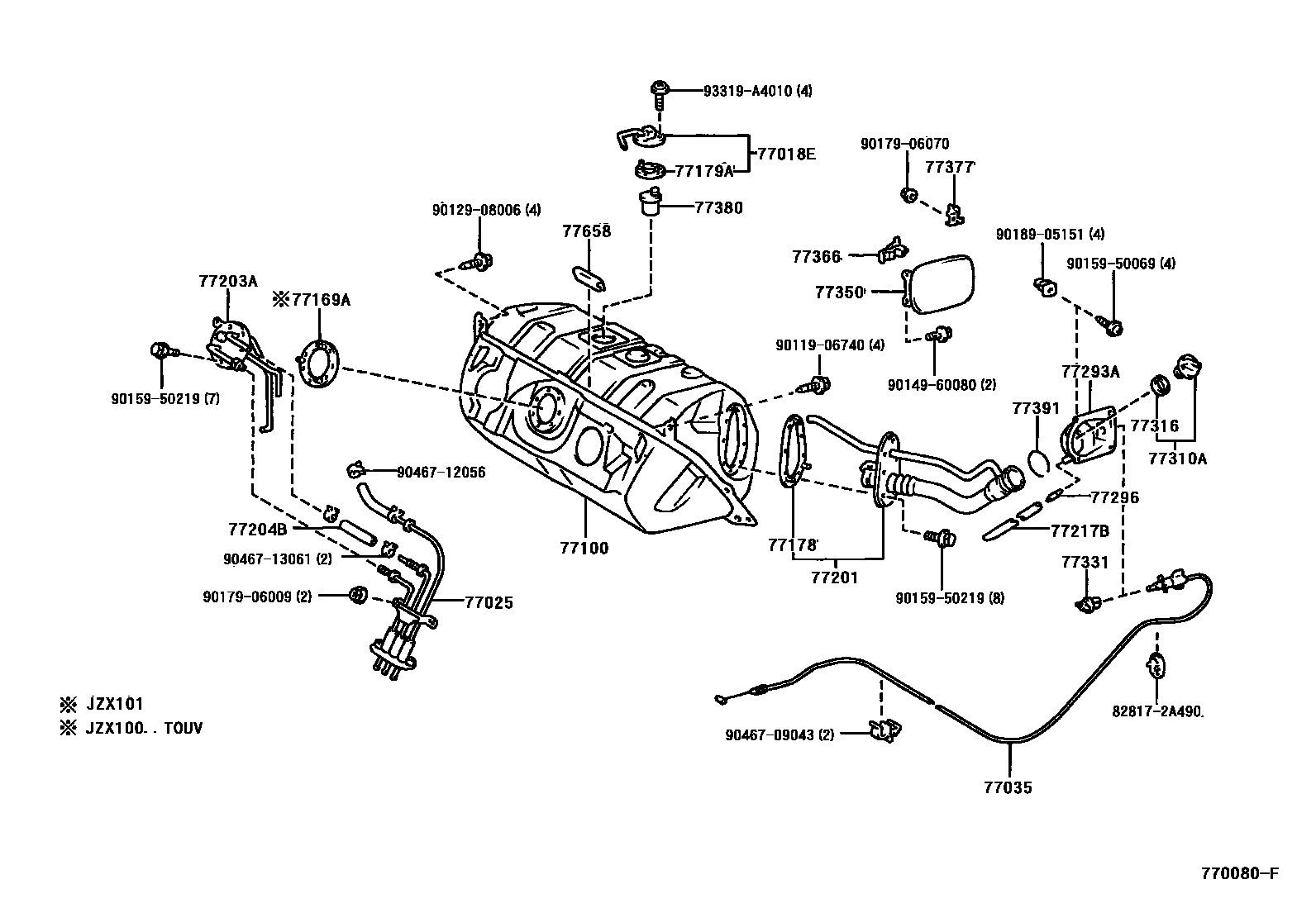

FUEL TANK & TUBE
77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77025TUBE SUB-ASSY, FUEL MAIN & RETURN, REAR
77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77100TANK ASSY, FUEL
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77204BHOSE, FUEL(FOR FUEL RETURN)
77217BHOSE, FUEL TANK INLET
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77296PLATE, FUEL TUBE GROMMET SUPPORT
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77331BRACKET, FUEL LID LOCK CONTROL
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77377RETAINER, FUEL FILLER OPENING LID LOCK
77380VALVE ASSY, FUEL CUT OFF
77391RING, FUEL INLET BOX
77658MOULDING, FUEL TANK EDGE
828172A490PROTECTOR, WIRING HARNESS, NO.1
main82817-2A490
9011906740
main90119-06740
9012908006
main90129-08006
9014960080
main90149-60080
9015950069
main90159-50069
9015950219
main90159-50219
9017906009
main90179-06009
9017906070
main90179-06070
9018905151
main90189-05151
9046709043
main90467-09043
9046712056
main90467-12056
9046713061
main90467-13061
93319A4010
main93319-A4010
35 parts on this diagram · 7 diagrams in section
