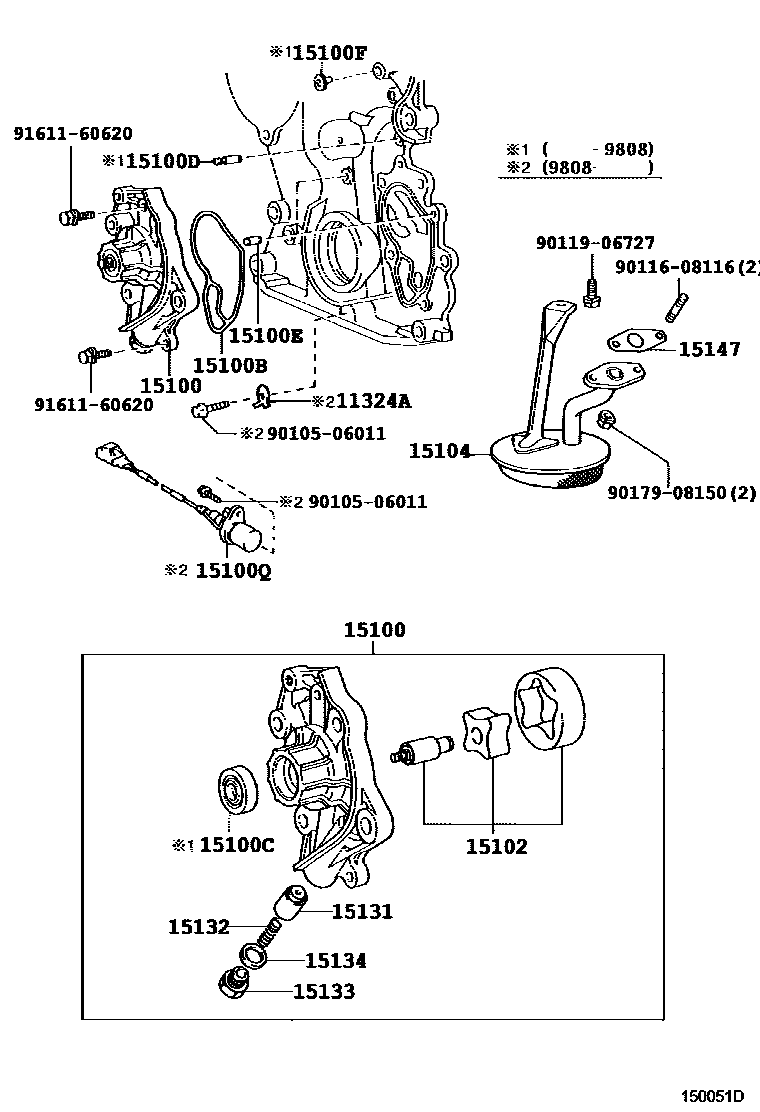

ENGINE OIL PUMP

0001 1 0002 1 0003 1 0004 1

11324APLATE, TIMING BELT

main11324-46010i1JZGTE..JZX100199609-200106

main11324-46030i1JZGE,2JZGE..JZX10#199609-200106

main11324-70020i1GFE..GX10#199808-200106

15100PUMP ASSY, OIL

main15100-46030i1JZGTE..JZX100199609-200106

main15100-46090i1JZGE,2JZGE..JZX100,101199609-200105

main15100-46091i1JZGE,2JZGE..JZX100,101200105-200106

main15100-46100i1JZGE..JZX105199609-200106

main15100-70030i1GFE..GX100199609-199808

main15100-70050i1GFE..GX10#199808-200106

15100BRING, O(FOR OIL PUMP)

main15188-70010i1GFE..GX100199609-199808

main15188-70060i1GFE..GX10#199808-200106

main96721-24022i1JZ#,2JZGE..JZX10#199609-200106

N0.1

main96721-24031i1JZ#,2JZGE..JZX10#199609-200106

15100CSEAL(FOR OIL PUMP)

main90029-21005i1GFE..GX100199609-199808

15100DPIN(FOR OIL PUMP SET)

main15182-70010i1GFE..GX100199609-199808

15100EPIN, STRAIGHT (FOR OIL PUMP SET)

main15181-70010×2i1GFE..GX10#199609-200106

15100FBUSH (FOR OIL PUMP)

main90029-38302i1GFE..GX100199609-199808

15100QSENSOR, CRANK POSITION

main90919-05023i1JZ#,2JZGE..JZX10#199609-200106

15102ROTOR SET, OIL PUMP

main15102-70011i1GFE..GX100199609-199808

main15102-70050i1GFE..GX10#199808-200106

15104STRAINER SUB-ASSY, OIL

main15104-46050i1JZGE..JZX105199609-199710

main15104-46051i1JZGE..JZX105199710-200106

main15104-46060i1JZ#,2JZGE..JZX100,101199609-200106

main15104-54150i2LTE..LX100199609-199908

main15104-70040i1GFE..GX100199609-200106

main15104-70070i1GFE..GX105199808-200106

15131VALVE, OIL PUMP RELIEF

main15131-24010i1GFE..GX10#199609-200106

main15131-46030i1JZGTE..JZX100199609-200106

main15131-46060i1JZGE,2JZGE..JZX10#199609-200106

main15131-54010i2LTE..LX100199609-199908

15132SPRING, OIL PUMP RELIEF VALVE

main15132-40010i1GFE..GX10#199609-200106

main15132-46030i1JZGTE..JZX100199609-200106

main15132-46060i1JZGE,2JZGE..JZX10#199609-200106

main15132-54010i2LTE..LX100199609-199908

15133PLUG, OIL PUMP RELIEF VALVE

main15133-17010i1JZGE,2JZGE..JZX10#199609-200106

main15133-20010i1GFE..GX10#199609-200106

main15133-46030i1JZGTE..JZX100199609-200106

main15133-54010i2LTE..LX100199609-199908

15134GASKET, OIL PUMP RELIEF VALVE

main15134-67010i1GFE..GX10#199808-200106

main15134-67020i1JZGE,2JZGE..JZX10#199609-200106

main15134-70030i1GFE..GX100199609-199808

15147GASKET, OIL STRAINER

main15147-46010i1JZ#,2JZGE..JZX100,101199609-200106

main15147-46030i1JZGE..JZX105199609-200106

main15147-70021i1GFE..GX100199609-199808

main15147-70030i1GFE..GX10#199808-200106

9010506011

main90105-06011

9011608116

main90116-08116

9011906727

main90119-06727

9017908150

main90179-08150

9161160620

main91611-60620

20 parts on this diagram · 4 diagrams in section
