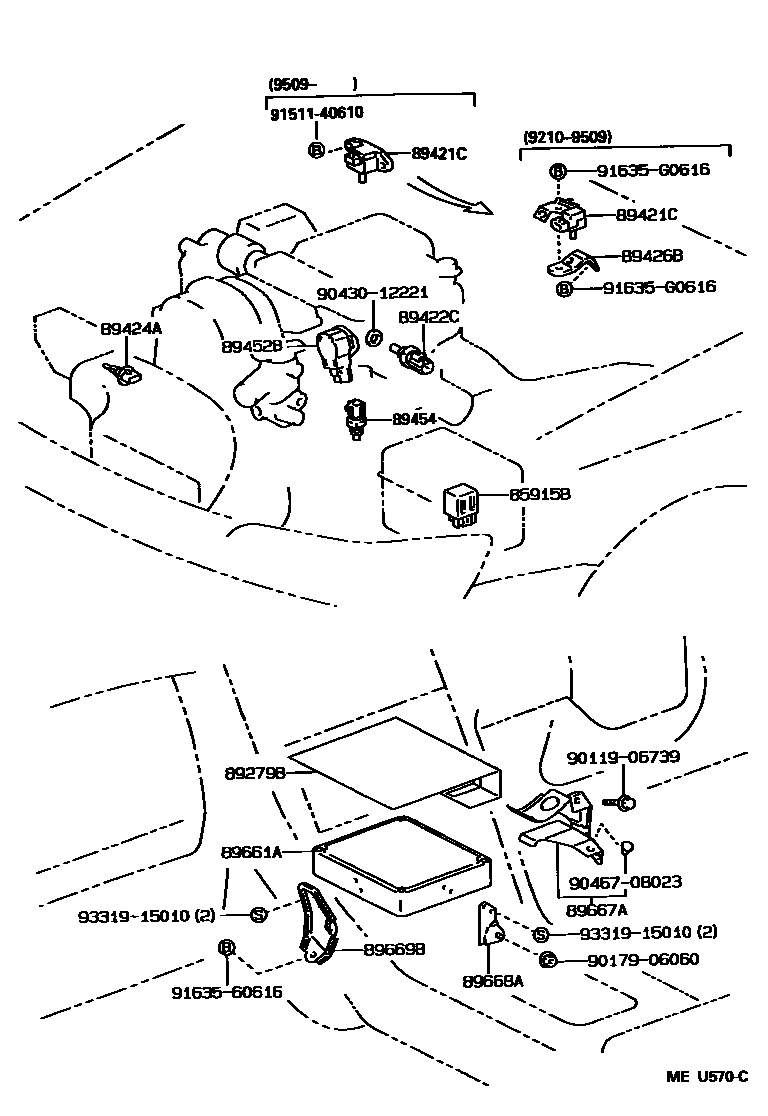

ELECTRONIC CONTROLED DIESEL (ECD)

85915BRELAY, MAIN (FOR DIESEL TURBO)

main85915-30050×2iLX90199210-199609

89279BCOVER, DIESEL ENGINE CONTROL COMPUTOR

main89279-22020iLX90199210-199609

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89420-22220iLX90199210-199509

main89421-60030iLX90199509-199609

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-35010iLX90199210-199609

89424ASENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)

main89424-12010iLX90199210-199609

89426BBRACKET, VACUUM SENSOR

main89426-22190iLX90199210-199509

89452BSENSOR, THROTTLE POSITION

main89452-12040iLX90199210-199401

main89452-22090iLX90199401-199405

main89452-28090iLX90199405-199609

89454SENSOR, FUEL TEMPERATURE

main89454-60010iLX90199509-199609

89661ACOMPUTER, ENGINE CONTROL

main89661-22430iLX90..MTM199210-199305

main89661-22431iLX90..MTM199305-199409

main89661-22440iLX90..ATM199210-199305

main89661-22441iLX90..ATM199305-199409

main89661-22560iLX90..MTM199409-199509

main89661-22570iLX90..ATM199409-199509

main89661-22690iLX90..MTM199509-199609

main89661-22700iLX90..ATM199509-199609

main89661-22710iLX90..ATM199509-199609

89667ABRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-22110iLX90199210-199609

89668ABRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-22160iLX90199210-199609

89669BBRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-22190iLX90199210-199609

9011906739

main90119-06739

9017906060

main90179-06060

9043012221

main90430-12221

9046708023

main90467-08023

9151140610

main91511-40610

9163560616

main91635-60616

91635G0616

main91635-G0616

9331915010

main93319-15010

20 parts on this diagram · 1 diagram in section
