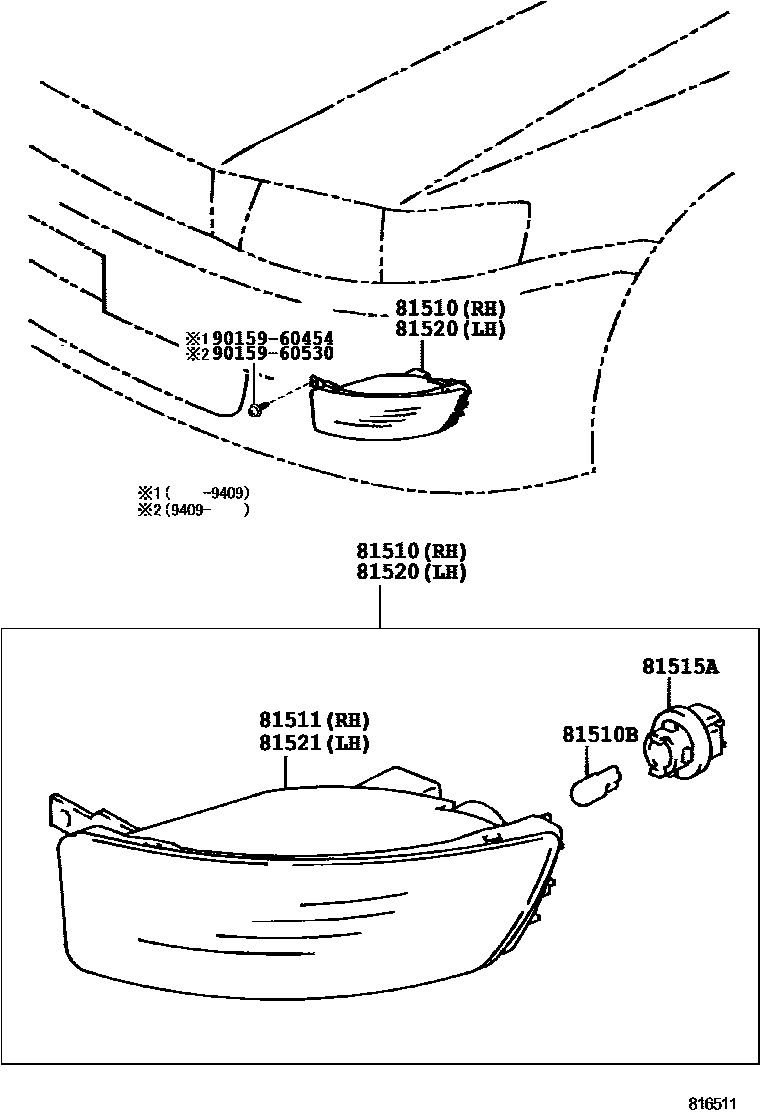

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-22380iGX90,JZX9#,LX90,SX90199210-199409

main81510-22400iGX90,JZX9#,LX90,SX90199409-199609

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-13043iGX90,JZX9#,LX90,SX90199210-199609

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-22380iGX90,JZX9#,LX90,SX90199210-199409

main81511-22400iGX90,JZX9#,LX90,SX90199409-199609

81515APLUG ASSY, FRONT TURN SIGNAL LAMP

main90075-99080iGX90,JZX9#,LX90,SX90199210-199609

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-22380iGX90,JZX9#,LX90,SX90199210-199409

main81520-22400iGX90,JZX9#,LX90,SX90199409-199609

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-22380iGX90,JZX9#,LX90,SX90199210-199409

main81521-22400iGX90,JZX9#,LX90,SX90199409-199609

9015960454

main90159-60454

9015960530

main90159-60530

8 parts on this diagram · 1 diagram in section
