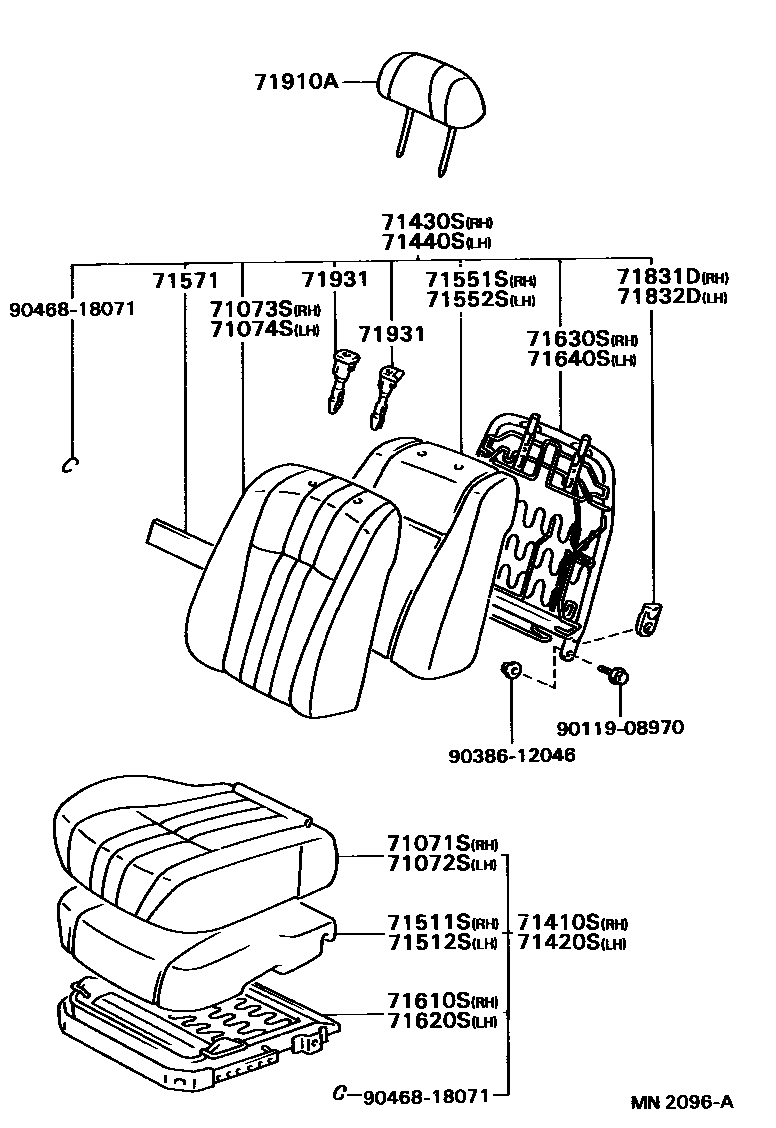

FRONT SEAT & SEAT TRACK

0001 1 0002 1 0003 1����� �-� 0004 1���- �-�

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-2A660-E2iJZX9#..SLTG199210-199310

main71071-2A661-E2iJZX90,91..SLTG199310-199311

main71071-2A662-E2iJZX90,91..SLTG199311-199409

main71071-2A663-E0iJZX90,91..SLTG199409-199609

main71071-2A670-G1iJZX90..TOUS,TOUV199210-199310

JADE,TRIM6#

main71071-2A670-J1iJZX90..TOUS,TOUV199210-199310

GRAYISH BLUE,TRIM8#

main71071-2A671-G1iJZX90..TOUS,TOUV199310-199409

JADE,TRIM6#

main71071-2A671-J1iJZX90..TOUS,TOUV199310-199409

DK. BLUE,TRIM8#

main71071-2A672-G0iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

main71071-2A672-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

main71071-2A700-E0iLX90,SX90..SC199210-199409

BEIGE,TRIM4#

main71071-2A700-J0iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

main71071-2A701-E0iLX90,SX90..SC199409-199609

SABLE,TRIM4#

main71071-2A710-E0iGX90,LX90,SX90..SLT,SUF199210-199409

BEIGE,TRIM4#

main71071-2A710-G0iGX90,LX90,SX90..SLT,SUF199210-199409

JADE,TRIM6#

main71071-2A710-J0iGX90,LX90,SX90..SLT,SUF199210-199409

GRAYISH BLUE,TRIM8#

main71071-2A711-E1iGX90,LX90,SX90..SLT,SUF199409-199609

SABLE,TRIM4#

main71071-2A711-G1iGX90,LX90,SX90..SLT,SUF199409-199609

JADE,TRIM6#

main71071-2A720-E0iJZX90,91..SLT,SLTG199210-199409

BEIGE,TRIM4#

main71071-2A720-G0iJZX90,91..SLT,SLTG199210-199409

JADE,TRIM6#

main71071-2A720-J0iJZX90,91..SLT,SLTG199210-199409

GRAYISH BLUE,TRIM8#

main71071-2A721-E2iJZX90,91..SLTG199409-199609

SABLE,TRIM4#

main71071-2A721-G2iJZX90..SLT199504

main71071-2A730-E0iJZX93..SLTG199310-199409

BEIGE,TRIM4#

main71071-2A730-G0iJZX93..SLTG199310-199409

JADE,TRIM6#

main71071-2A731-E1iJZX93..SLTG199409-199609

SABLE,TRIM4#

main71071-2A731-G1iJZX93..SLTG199409-199609

JADE,TRIM6#

main71071-2A740-E0iJZX93..SLT199310-199409

BEIGE,TRIM4#

main71071-2A740-G0iJZX93..SLT199310-199409

JADE,TRIM6#

main71071-2A741-E2iJZX93..SLT199409-199609

SABLE,TRIM4#

main71071-2A741-G2iJZX93..SLT199409-199609

JADE,TRIM6#

main71071-2A840-E0iJZX90..SLT199409-199609

SABLE,TRIM4#

main71071-2A840-G0iJZX90..SLT199409-199609

JADE,TRIM6#

main71071-2A860-E0iGX90..ATM199512-199605

main71071-2A860-G0iGX90..ATM199604-199609

main71071-2A890-E0iJZX90..SLT199512-199605

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-2A200-E2iJZX9#..SLTG199210-199310

main71072-2A201-E2iJZX90,91..SLTG199310-199311

main71072-2A202-E2iJZX90,91..SLTG199311-199409

main71072-2A203-E0iJZX90,91..SLTG199409-199609

main71072-2A210-G1iJZX90..TOUS,TOUV199210-199310

JADE,TRIM6#

main71072-2A210-J1iJZX90..TOUS,TOUV199210-199310

GRAYISH BLUE,TRIM8#

main71072-2A211-G1iJZX90..TOUS,TOUV199310-199409

JADE,TRIM6#

main71072-2A211-J1iJZX90..TOUS,TOUV199310-199409

DK. BLUE,TRIM8#

main71072-2A212-G0iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

main71072-2A212-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

main71072-2A250-E0iLX90,SX90..SC199210-199409

BEIGE,TRIM4#

main71072-2A250-J0iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

main71072-2A251-E0iLX90,SX90..SC199409-199609

SABLE,TRIM4#

main71072-2A260-E0iGX90,LX90,SX90..SLT,SUF199210-199409

BEIGE,TRIM4#

main71072-2A260-G0iGX90,LX90,SX90..SLT,SUF199210-199409

JADE,TRIM6#

main71072-2A260-J0iGX90,LX90,SX90..SLT,SUF199210-199409

GRAYISH BLUE,TRIM8#

main71072-2A261-E1iGX90,JZX90,LX90,SX90..SLT,SUF199409-199609

SABLE,TRIM4#

main71072-2A261-G1iGX90,JZX90,LX90,SX90..SLT,SUF199409-199609

JADE,TRIM6#

main71072-2A270-E0iJZX90,91..SLT,SLTG199210-199409

BEIGE,TRIM4#

main71072-2A270-G0iJZX90,91..SLT,SLTG199210-199409

JADE,TRIM6#

main71072-2A270-J0iJZX90,91..SLT,SLTG199210-199409

GRAYISH BLUE,TRIM8#

main71072-2A271-E2iJZX90..SLT199504

main71072-2A271-G2iJZX90,91..SLTG199409-199609

JADE,TRIM6#

main71072-2A280-E0iJZX91199210-199409

main71072-2A280-G0iJZX91199210-199409

main71072-2A280-J0iJZX91199210-199409

main71072-2A290-E0iJZX93..SLTG199310-199409

BEIGE,TRIM4#

main71072-2A290-G0iJZX93..SLTG199310-199409

JADE,TRIM6#

main71072-2A291-E1iJZX93..SLTG199409-199609

SABLE,TRIM4#

main71072-2A291-G1iJZX93..SLTG199409-199609

JADE,TRIM6#

main71072-2A300-E0iJZX93..SLT199310-199409

BEIGE,TRIM4#

main71072-2A300-G0iJZX93..SLT199310-199409

JADE,TRIM6#

main71072-2A301-E1iJZX93..SLT199409-199609

SABLE,TRIM4#

main71072-2A301-G1iJZX93..SLT199409-199609

JADE,TRIM6#

main71072-2A360-E0iGX90..ATM199604-199609

main71072-2A360-G0iGX90..ATM199604-199609

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-2C070-E2iJZX9#..SLTG199210-199310

main71073-2C071-E2iJZX90,91..SLTG199310-199311

main71073-2C072-E2iJZX90,91..SLTG199311-199409

main71073-2C073-E0iJZX90,91..SLTG199409-199609

main71073-2C080-G1iJZX90..TOUS,TOUV199210-199310

JADE,TRIM6#

main71073-2C080-J1iJZX90..TOUS,TOUV199210-199310

GRAYISH BLUE,TRIM8#

main71073-2C081-G1iJZX90..TOUS,TOUV199310-199409

JADE,TRIM6#

main71073-2C081-J1iJZX90..TOUS,TOUV199310-199409

DK. BLUE,TRIM8#

main71073-2C082-G0iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

main71073-2C082-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

main71073-2C120-E0iGX90..ATM199512-199605

main71073-2C120-G0iGX90..ATM199604-199609

main71073-2C130-E0iLX90,SX90..SC199210-199609

BEIGE,TRIM4#

main71073-2C130-J0iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

main71073-2C140-E0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

BEIGE,TRIM4#

main71073-2C140-G0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

JADE,TRIM6#

main71073-2C140-J0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

GRAYISH BLUE,TRIM8#

main71073-2C141-E1iGX90,LX90,SX90..MTM199409-199609

SABLE,TRIM4#

main71073-2C141-G1iGX90,LX90,SX90..MTM199409-199609

JADE,TRIM6#

main71073-2C150-E0iGX90,JZX93,LX90,SX90..ATM..(SLT,SUF)199210-199409

BEIGE,TRIM4#

main71073-2C150-G0iGX90,JZX93,LX90,SX90..ATM..(SLT,SUF)199210-199409

JADE,TRIM6#

main71073-2C150-J0iGX90,LX90,SX90..ATM..(SLT,SUF)199210-199409

GRAYISH BLUE,TRIM8#

main71073-2C151-E1iGX90,JZX93,LX90,SX90..ATM..(SLT,SUF)199409-199609

SABLE,TRIM4#

main71073-2C151-G1iGX90,JZX93,LX90,SX90..ATM..(SLT,SUF)199409-199609

JADE,TRIM6#

main71073-2C160-E0iJZX90,91..SLT,SLTG199210-199409

BEIGE,TRIM4#

main71073-2C160-G0iJZX90,91..SLT,SLTG199210-199409

JADE,TRIM6#

main71073-2C160-J0iJZX90,91..SLT,SLTG199210-199409

GRAYISH BLUE,TRIM8#

main71073-2C161-E2iJZX90..SLT199504

main71073-2C161-G2iJZX9#..SLTG199409-199609

JADE,TRIM6#

main71073-2C240-E0iJZX90..SLT199409-199609

SABLE,TRIM4#

main71073-2C240-G0iJZX90..SLT199409-199609

JADE,TRIM6#

main71073-2C260-E0iJZX90..SLT199512-199605

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-2A330-E2iJZX90,91..SLTG199210-199311

main71074-2A331-E2iJZX90,91..SLTG199311-199409

main71074-2A332-E0iJZX90,91..SLTG199409-199609

main71074-2A340-G1iJZX90..TOUS,TOUV199210-199409

JADE,TRIM6#

main71074-2A340-J1iJZX90..TOUS,TOUV199210-199409

GRAYISH BLUE,TRIM8#

main71074-2A341-G0iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

main71074-2A341-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

main71074-2A370-E0iLX90,SX90..SC199210-199609

BEIGE,TRIM4#

main71074-2A370-J0iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

main71074-2A380-E0iGX90,JZX93,LX90,SX90..SLT,SUF199210-199409

BEIGE,TRIM4#

main71074-2A380-G0iGX90,JZX93,LX90,SX90..SLT,SUF199210-199409

JADE,TRIM6#

main71074-2A380-J0iGX90,LX90,SX90..SLT,SUF199210-199409

GRAYISH BLUE,TRIM8#

main71074-2A381-E1iGX90,JZX90,93,LX90,SX90..SLT,SUF199409-199609

SABLE,TRIM4#

main71074-2A381-G1iGX90,JZX90,93,LX90,SX90..SLT,SUF199409-199609

JADE,TRIM6#

main71074-2A390-E0iJZX93..SLTG;JZX90,91..SLT,SLTG199210-199409

BEIGE,TRIM4#

main71074-2A390-G0iJZX93..SLTG;JZX90,91..SLT,SLTG199210-199409

JADE,TRIM6#

main71074-2A390-J0iJZX90,91..SLT,SLTG199210-199409

GRAYISH BLUE,TRIM8#

main71074-2A391-E2iJZX90..SLT199504

main71074-2A391-G2iJZX90..SLT199504

main71074-2A430-E0iJZX91199210-199409

main71074-2A430-G0iJZX91199210-199409

main71074-2A430-J0iJZX91199210-199409

main71074-2A460-E0iGX90,JZX90..ATM..SLT199512-199605

main71074-2A460-G0iGX90..ATM199604-199609

71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71410-2C010-E2iJZX9#..SLTG199210-199310

main71410-2C011-E2iJZX90,91..SLTG199310-199311

main71410-2C012-E2iJZX90,91..SLTG199311-199409

main71410-2C013-E0iJZX90,91..SLTG199409-199609

main71410-2C020-G1iJZX90..TOUS,TOUV199210-199310

***,JADE,TRIM6#

main71410-2C020-J1iJZX90..TOUS,TOUV199210-199310

***,GRAYISH BLUE,TRIM8#

main71410-2C021-G1iJZX90..TOUS,TOUV199310-199409

***,JADE,TRIM6#

main71410-2C021-J1iJZX90..TOUS,TOUV199310-199409

***,DK. BLUE,TRIM8#

main71410-2C022-G0iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

main71410-2C022-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

main71410-2C060-E0iLX90,SX90..SC199210-199409

BEIGE,TRIM4#

main71410-2C060-J0iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

main71410-2C061-E0iLX90,SX90..SC199409-199609

SABLE,TRIM4#

main71410-2C090-E0iGX90,LX90,SX90..SLT,SUF199210-199409

***,BEIGE,TRIM4#

main71410-2C090-G0iGX90,LX90,SX90..SLT,SUF199210-199409

***,JADE,TRIM6#

main71410-2C090-J0iGX90,LX90,SX90..SLT,SUF199210-199409

***,GRAYISH BLUE,TRIM8#

main71410-2C091-E1iGX90,LX90,SX90..SLT,SUF199409-199609

***,SABLE,TRIM4#

main71410-2C091-G1iGX90,LX90,SX90..SLT,SUF199409-199609

***,JADE,TRIM6#

main71410-2C100-E0iJZX90,91..SLT,SLTG199210-199409

BEIGE,TRIM4#

main71410-2C100-G0iJZX90,91..SLT,SLTG199210-199409

JADE,TRIM6#

main71410-2C100-J0iJZX90,91..SLT,SLTG199210-199409

GRAYISH BLUE,TRIM8#

main71410-2C101-E3iJZX90,91..SLTG199409-199609

***,SABLE,TRIM4#

main71410-2C101-G3iJZX90..SLT199504

main71410-2C110-E0iJZX93..SLTG199310-199409

BEIGE,TRIM4#

main71410-2C110-G0iJZX93..SLTG199310-199409

JADE,TRIM6#

main71410-2C111-E1iJZX93..SLTG199409-199609

***,SABLE,TRIM4#

main71410-2C111-G1iJZX93..SLTG199409-199609

***,JADE,TRIM6#

main71410-2C120-E0iJZX93..SLT199310-199409

BEIGE,TRIM4#

main71410-2C120-G0iJZX93..SLT199310-199409

JADE,TRIM6#

main71410-2C121-E1iJZX93..SLT199409-199609

***,SABLE,TRIM4#

main71410-2C121-G1iJZX93..SLT199409-199609

***,JADE,TRIM6#

main71410-2C220-E0iJZX90..SLT199409-199609

***,SABLE,TRIM4#

main71410-2C220-G0iJZX90..SLT199409-199609

***,JADE,TRIM6#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-2A390-E2iJZX9#..SLTG199210-199310

main71420-2A391-E2iJZX90,91..SLTG199310-199311

main71420-2A392-E2iJZX90,91..SLTG199311-199409

main71420-2A393-E0iJZX90,91..SLTG199409-199609

main71420-2A400-G1iJZX90..TOUS,TOUV199210-199310

***,JADE,TRIM6#

main71420-2A400-J1iJZX90..TOUS,TOUV199210-199310

***,GRAYISH BLUE,TRIM8#

main71420-2A401-G1iJZX90..TOUS,TOUV199310-199409

***,JADE,TRIM6#

main71420-2A401-J1iJZX90..TOUS,TOUV199310-199409

***,DK. BLUE,TRIM8#

main71420-2A402-G0iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

main71420-2A402-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

main71420-2A450-E0iLX90,SX90..SC199210-199409

BEIGE,TRIM4#

main71420-2A450-J0iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

main71420-2A451-E0iLX90,SX90..SC199409-199609

SABLE,TRIM4#

main71420-2A490-E0iGX90,LX90,SX90..SLT,SUF199210-199409

***,BEIGE,TRIM4#

main71420-2A490-G0iGX90,LX90,SX90..SLT,SUF199210-199409

***,JADE,TRIM6#

main71420-2A490-J0iGX90,LX90,SX90..SLT,SUF199210-199409

***,GRAYISH BLUE,TRIM8#

main71420-2A491-E1iGX90,JZX90,LX90,SX90..SLT,SUF199409-199609

***,SABLE,TRIM4#

main71420-2A491-G1iGX90,JZX90,LX90,SX90..SLT,SUF199409-199609

***,JADE,TRIM6#

main71420-2A500-E0iJZX90,91..SLT,SLTG199210-199409

BEIGE,TRIM4#

main71420-2A500-G0iJZX90,91..SLT,SLTG199210-199409

JADE,TRIM6#

main71420-2A500-J0iJZX90,91..SLT,SLTG199210-199409

GRAYISH BLUE,TRIM8#

main71420-2A501-E2iJZX90,91..SLTG199409-199609

***,SABLE,TRIM4#

main71420-2A501-G2iJZX90,91..SLTG199409-199609

***,JADE,TRIM6#

main71420-2A510-E0iJZX91199210-199409

main71420-2A510-G0iJZX91199210-199409

main71420-2A510-J0iJZX91199210-199409

main71420-2A520-E0iJZX93..SLTG199310-199409

BEIGE,TRIM4#

main71420-2A520-G0iJZX93..SLTG199310-199409

JADE,TRIM6#

main71420-2A521-E1iJZX93..SLTG199409-199609

***,SABLE,TRIM4#

main71420-2A521-G1iJZX93..SLTG199409-199609

***,JADE,TRIM6#

main71420-2A530-E0iJZX93..SLT199310-199409

BEIGE,TRIM4#

main71420-2A530-G0iJZX93..SLT199310-199409

JADE,TRIM6#

main71420-2A531-E1iJZX93..SLT199409-199609

***,SABLE,TRIM4#

main71420-2A531-G1iJZX93..SLT199409-199609

***,JADE,TRIM6#

71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)

main71430-2C350-E2iJZX9#..SLTG199210-199310

main71430-2C351-E2iJZX90,91..SLTG199310-199311

main71430-2C352-E2iJZX90,91..SLTG199311-199409

main71430-2C353-E0iJZX90,91..SLTG199409-199609

main71430-2C360-G1iJZX90..TOUS,TOUV199210-199310

***,JADE,TRIM6#

main71430-2C360-J1iJZX90..TOUS,TOUV199210-199310

***,GRAYISH BLUE,TRIM8#

main71430-2C361-G1iJZX90..TOUS,TOUV199310-199409

***,JADE,TRIM6#

main71430-2C361-J1iJZX90..TOUS,TOUV199310-199409

***,DK. BLUE,TRIM8#

main71430-2C362-G0iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

main71430-2C362-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

main71430-2C410-E0iLX90,SX90..SC199210-199609

BEIGE,TRIM4#

main71430-2C410-J0iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

main71430-2C440-E0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

***,BEIGE,TRIM4#

main71430-2C440-G0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

***,JADE,TRIM6#

main71430-2C440-J0iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

***,GRAYISH BLUE,TRIM8#

main71430-2C441-E1iGX90,LX90,SX90..MTM199409-199609

***,SABLE,TRIM4#

main71430-2C441-G1iGX90,LX90,SX90..MTM199409-199609

***,JADE,TRIM6#

main71430-2C450-E0iGX90,JZX93,LX90,SX90..ATM..(SLT,SUF)199210-199409

***,BEIGE,TRIM4#

main71430-2C450-G0iGX90,JZX93,LX90,SX90..ATM..(SLT,SUF)199210-199409

***,JADE,TRIM6#

main71430-2C450-J0iGX90,LX90,SX90..ATM..(SLT,SUF)199210-199409

***,GRAYISH BLUE,TRIM8#

main71430-2C451-E1iGX90,JZX93,LX90,SX90..ATM..(SLT,SUF)199409-199609

***,SABLE,TRIM4#

main71430-2C451-G1iGX90,JZX93,LX90,SX90..ATM..(SLT,SUF)199409-199609

***,JADE,TRIM6#

main71430-2C460-E0iJZX90,91..SLTG199210-199409

***,BEIGE,TRIM4#

main71430-2C460-G0iJZX90,91..SLTG199210-199409

***,JADE,TRIM6#

main71430-2C460-J0iJZX90,91..SLTG199210-199409

***,GRAYISH BLUE,TRIM8#

main71430-2C461-E2iJZX90..SLT199504

main71430-2C461-G2iJZX90..SLT199504

main71430-2C590-E0iJZX90..SLT;JZX93..SLTG199210-199409

***,BEIGE,TRIM4#

main71430-2C590-G0iJZX90..SLT;JZX93..SLTG199210-199409

***,JADE,TRIM6#

main71430-2C590-J0iJZX90..SLT199210-199409

***,GRAYISH BLUE,TRIM8#

main71430-2C591-E2iJZX93..SLTG199409-199609

***,SABLE,TRIM4#

main71430-2C591-G2iJZX93..SLTG199409-199609

***,JADE,TRIM6#

main71430-2C660-E0iJZX90..SLT199409-199609

***,SABLE,TRIM4#

main71430-2C660-G0iJZX90..SLT199409-199609

***,JADE,TRIM6#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-2C200-E2iJZX90,91..SLTG199210-199311

main71440-2C201-E2iJZX90,91..SLTG199311-199409

main71440-2C202-E0iJZX90,91..SLTG199409-199609

main71440-2C210-G1iJZX90..TOUS,TOUV199210-199409

***,JADE,TRIM6#

main71440-2C210-J1iJZX90..TOUS,TOUV199210-199409

***,GRAYISH BLUE,TRIM8#

main71440-2C211-G0iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

main71440-2C211-J0iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

main71440-2C260-E0iLX90,SX90..SC199210-199609

BEIGE,TRIM4#

main71440-2C260-J0iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

main71440-2C300-E0iGX90,JZX93,LX90,SX90..SLT,SUF199210-199409

***,BEIGE,TRIM4#

main71440-2C300-G0iGX90,JZX93,LX90,SX90..SLT,SUF199210-199409

***,JADE,TRIM6#

main71440-2C300-J0iGX90,LX90,SX90..SLT,SUF199210-199409

***,GRAYISH BLUE,TRIM8#

main71440-2C301-E1iGX90,JZX90,93,LX90,SX90..SLT,SUF199409-199609

***,SABLE,TRIM4#

main71440-2C301-G1iGX90,JZX90,93,LX90,SX90..SLT,SUF199409-199609

***,JADE,TRIM6#

main71440-2C310-E0iJZX90,91..SLTG199210-199409

***,BEIGE,TRIM4#

main71440-2C310-G0iJZX90,91..SLTG199210-199409

***,JADE,TRIM6#

main71440-2C310-J0iJZX90,91..SLTG199210-199409

***,GRAYISH BLUE,TRIM8#

main71440-2C311-E2iJZX90,91..SLTG199409-199609

***,SABLE,TRIM4#

main71440-2C311-G2iJZX90,91..SLTG199409-199609

***,JADE,TRIM6#

main71440-2C320-E0iJZX91199210-199409

main71440-2C320-G0iJZX91199210-199409

main71440-2C320-J0iJZX91199210-199409

main71440-2C430-E0iJZX90..SLT;JZX93..SLTG199210-199409

***,BEIGE,TRIM4#

main71440-2C430-G0iJZX90..SLT;JZX93..SLTG199210-199409

***,JADE,TRIM6#

main71440-2C430-J0iJZX90..SLT199210-199409

***,GRAYISH BLUE,TRIM8#

main71440-2C431-E2iJZX93..SLTG199409-199609

***,SABLE,TRIM4#

main71440-2C431-G2iJZX93..SLTG199409-199609

***,JADE,TRIM6#

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71511-22500iJZX90,91..SLTG; JZX90..TOUS,TOUV199210-199609

main71511-22520iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199609

main71511-22530iLX90,SX90..SC199210-199609

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-22120iJZX90,91..SLTG; JZX90..TOUS,TOUV199210-199609

main71512-22140iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199609

main71512-22150iLX90,SX90..SC199210-199609

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71551-22450iJZX90,91..SLTG199210-199609

main71551-22470iJZX90..TOUS,TOUV199210-199609

main71551-22500iGX90,LX90,SX90..MTM..(SLT,SUF)199210-199609

main71551-22510iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199210-199409

main71551-22511iGX90,JZX9#,LX90,SX90..ATM..(SLT,SLTG,SUF)199409-199609

main71551-22520iLX90,SX90..SC199210-199609

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71551-22460iJZX90,91..SLTG199210-199609

main71551-22470iJZX90..TOUS,TOUV199210-199609

main71551-22500iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF199210-199609

main71551-22520iLX90,SX90..SC199210-199609

71571PAD, FRONT SEATBACK SILENCER, A

main71571-22200×2iLX90,SX90..SC199210-199609

71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71610-22360iGX90,LX90,SX90;JZX90..TOUS,TOUV199210-199609

main71610-22400iJZX90,91..SLT,SLTG199210-199609

main71610-22410iJZX93..SLTG199409-199609

main71610-22420iJZX93..SLT199409-199609

71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71620-22170iGX90,JZX90,91,LX90,SX90199210-199609

main71620-22180iJZX90,91..SLTG199409-199609

main71620-22190iJZX93199409-199609

71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71630-22580iLX90,SX90..SC199210-199609

main71630-22590iJZX90..TOUS,TOUV;GX90,LX90,SX90..MTM..(SLT,SUF)199210-199409

main71630-22591iGX90,LX90,SX90..MTM199409-199609

main71630-22600iGX90,JZX93,LX90,SX90..ATM..(SLT,SUF)199210-199409

main71630-22601iGX90,JZX93,LX90,SX90..ATM..(SLT,SUF)199409-199609

main71630-22620iJZX93..SLTG;JZX90,91..SLT,SLTG199210-199409

main71630-22621iJZX93..SLTG;JZX90,91..SLT,SLTG199409-199609

main71630-22690iJZX90..TOUS,TOUV199409-199609

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-22430iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199409

main71640-22431iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199409-199609

main71640-22440iJZX90..SLTG; JZX91199210-199409

main71640-22441iJZX90,91..SLTG199409-199609

main71640-22450iLX90,SX90..SC199210-199609

71831DCOVER, FRONT SEAT HINGE, RH

main71831-22050iJZX90..TOUS,TOUV;GX90,JZX93,LX90,SX90..SC,SLT,SUF199210-199609

71832DCOVER, FRONT SEAT HINGE, LH

main71831-22050iGX90,JZX9#,LX90,SX90199210-199609

71910AHEADREST ASSY, FRONT SEAT

main71910-22840-E0×2iJZX90,91..SLTG199210-199311

main71910-22841-E0×2iJZX90,91..SLTG199311-199409

main71910-22842-E0×2iJZX90,91..SLTG199409-199609

main71910-22850-G0×2iJZX90..TOUS,TOUV199210-199409

JADE,TRIM6#

main71910-22850-J0×2iJZX90..TOUS,TOUV199210-199409

GRAYISH BLUE,TRIM8#

main71910-22851-G0×2iJZX90..TOUS,TOUV199409-199609

JADE,TRIM6#

main71910-22851-J1×2iJZX90..TOUS,TOUV199409-199609

GRAYISH BLUE,TRIM8#

main71910-22880-E0×2iLX90,SX90..SC199210-199609

BEIGE,TRIM4#

main71910-22880-J0×2iLX90,SX90..SC199210-199409

GRAYISH BLUE,TRIM8#

main71910-22890-E0×2iGX90,JZX93,LX90,SX90..SLT,SUF199210-199409

BEIGE,TRIM4#

main71910-22890-G0×2iGX90,JZX93,LX90,SX90..SLT,SUF199210-199409

JADE,TRIM6#

main71910-22890-J1×2iGX90,LX90,SX90..SLT,SUF199210-199409

GRAYISH BLUE,TRIM8#

main71910-22891-E1×2iGX90,JZX90,93,LX90,SX90..SLT,SUF199409-199609

BEIGE,TRIM4#

main71910-22891-G1×2iGX90,JZX90,93,LX90,SX90..SLT,SUF199409-199609

JADE,TRIM6#

main71910-2A010-E0×2iJZX93..SLTG;JZX90,91..SLT,SLTG199210-199409

BEIGE,TRIM4#

main71910-2A010-G0×2iJZX93..SLTG;JZX90,91..SLT,SLTG199210-199409

JADE,TRIM6#

main71910-2A010-J0×2iJZX90,91..SLT,SLTG199210-199409

GRAYISH BLUE,TRIM8#

main71910-2A011-E1×2iJZX90..SLT199504

main71910-2A011-G1×2iJZX90..SLT199504

main71910-2A030-E0iGX90,JZX90..ATM..SLT199512-199605

main71910-2A030-G0iGX90..ATM199604-199609

71931SUPPORT, FRONT SEAT HEADREST

main71930-10070-E7×2iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main71930-10070-G3×2iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

main71930-10070-J2×2iGX90,JZX90,91,LX90,SX90199210-199409

main71931-10020-E7×2iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main71931-10020-G2×2iGX90,JZX9#,LX90,SX90..SLT,SLTG,SUF,TOUS,TOUV199210-199609

main71931-10020-J2×2iGX90,JZX90,91,LX90,SX90199210-199409

9011908970

main90119-08970

9038612046

main90386-12046

9046818071

main90468-18071

24 parts on this diagram · 4 diagrams in section
