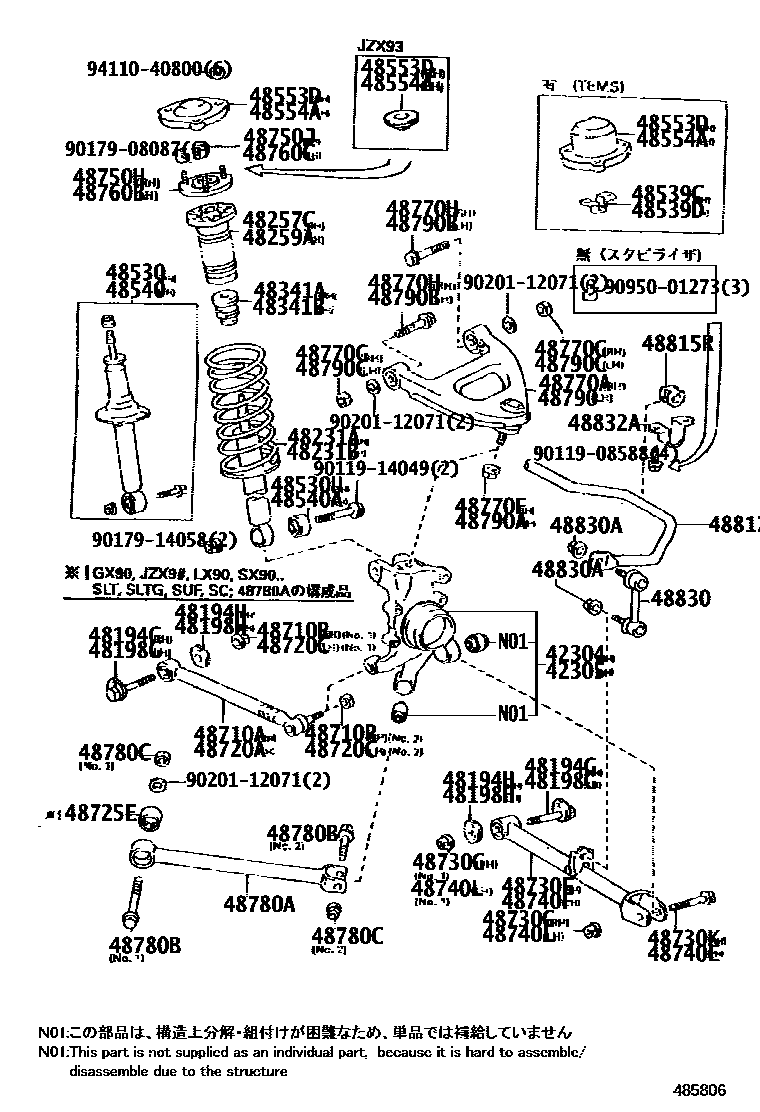

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-22021iGX90,SX90;LX90..MTM; JZX93;JZX90,91..SLTG,TOUV199210-199507

main42304-22031iGX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS199210-199507

main42304-30040iGX90,SX90;LX90..MTM; JZX90,LX90..ATM..(SC,SLT,SUF,TOUS); JZX93;JZX90,91..SLTG,TOUV199507-199609

main42304-30050iGX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS199507-199609

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-22021iGX90,SX90;LX90..MTM; JZX93;JZX90,91..SLTG,TOUV199210-199507

main42305-22031iGX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS199210-199507

main42305-30040iGX90,SX90;LX90..MTM; JZX90,LX90..ATM..(SC,SLT,SUF,TOUS); JZX93;JZX90,91..SLTG,TOUV199507-199609

main42305-30050iGX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS199507-199609

48194GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-22030×2iGX90,JZX9#,LX90,SX90199210-199609

48194HCAM, REAR SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-22020×2iGX90,JZX9#,LX90,SX90199210-199609

48198GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-22030×2iGX90,JZX9#,LX90,SX90199210-199609

48198HCAM, CAMBER ADJUST, NO.2

main48198-22020×2iGX90,JZX9#,LX90,SX90199210-199609

48231ASPRING, COIL, REAR RH

main48231-2A210iGX90,JZX90..SLT,SLTG199210-199409

main48231-2A250iJZX90,LX90,SX90..SC,SUF,TOUS199210-199609

main48231-2A270iJZX90..TOUV199210-199609

main48231-2A290iJZX91,93199210-199409

48231BSPRING, COIL, REAR LH

main48231-2A210iGX90,JZX90..SLT,SLTG199210-199409

main48231-2A250iJZX90,LX90,SX90..SC,SUF,TOUS199210-199609

main48231-2A270iJZX90..TOUV199210-199609

main48231-2A290iJZX91,93199210-199409

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-22070iGX90,JZX9#,LX90,SX90199210-199409

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-22070iGX90,JZX9#,LX90,SX90199210-199409

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-22120iGX90,JZX9#,LX90,SX90199210-199609

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-22120iGX90,JZX9#,LX90,SX90199210-199609

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-29245iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main48530-29255iJZX90..TOUV199210-199501

main48530-29265iJZX91199210-199409

main48530-29275iJZX90..TOUS199210-199501

main48530-29465iJZX91199409-199609

48530UBUSH(FOR REAR SHOCK ABSORBER RH)

main90389-14044iGX90,JZX9#,LX90,SX90199210-199609

48539CBRACKET, ACTUATOR SUPPORT, REAR RH

main48539-22020iJZX91199210-199609

48539DBRACKET, ACTUATOR SUPPORT, REAR LH

main48539-22020iJZX91199210-199609

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-29245iGX90,JZX90,93,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main48530-29255iJZX90..TOUV199210-199501

main48530-29265iJZX91199210-199409

main48530-29275iJZX90..TOUS199210-199501

main48530-29465iJZX91199409-199609

48540ABUSH(FOR REAR SHOCK ABSORBER LH)

main90389-14044iGX90,JZX9#,LX90,SX90199210-199609

48553DCAP, REAR SHOCK ABSORBER, RH

main48553-22050iJZX91199210-199609

main48553-22070iGX90,JZX90,LX90,SX90199210-199609

main48680-22050iJZX93199310-199609

48554ACAP, REAR SHOCK ABSORBER, LH

main48553-22050iJZX91199210-199609

main48553-22070iGX90,JZX90,LX90,SX90199210-199609

main48680-22050iJZX93199310-199609

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-22300iGX90,JZX9#,LX90,SX90199210-199609

48710RNUT(FOR REAR SUSPENSION ARM NO.1 RH)

main90179-12027iGX90,JZX9#,LX90,SX90199210-199609

main90179-12127iGX90,JZX9#,LX90,SX90199210-199609

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-22300iGX90,JZX9#,LX90,SX90199210-199609

48720CNUT(FOR REAR SUSPENSION ARM NO.1 LH)

main90179-12027iGX90,JZX9#,LX90,SX90199210-199409

main90179-12127iGX90,JZX9#,LX90,SX90199210-199409

48725EBUSH, REAR STRUT ROD

main48725-22150×2iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-22041iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main48730-22051iJZX90..TOUS,TOUV199210-199506

main48730-30070iJZX90..TOUS,TOUV199506-199609

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-12121iGX90,JZX9#,LX90,SX90199210-199609

main90179-12127iGX90,JZX9#,LX90,SX90199210-199609

48730KBOLT(FOR REAR SUSPENSION ARM NO.2 RH)

main90119-12260iGX90,JZX9#,LX90,SX90199210-199609

48740EBOLT(FOR REAR SUSPENSION ARM NO.2 LH)

main90119-12260iGX90,JZX9#,LX90,SX90199210-199609

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48730-22041iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main48730-22051iJZX90..TOUS,TOUV199210-199506

main48730-30070iJZX90..TOUS,TOUV199506-199609

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-12121iGX90,JZX9#,LX90,SX90199210-199609

main90179-12127iGX90,JZX9#,LX90,SX90199210-199609

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48755-22020iGX90,JZX90,91,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main48755-22030iJZX90..TOUS,TOUV199210-199609

main48755-22040iJZX93199310-199609

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90179-12140iGX90,JZX9#,LX90,SX90199607-199609

main94187-11200iGX90,JZX9#,LX90,SX90199210-199606

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48755-22020iGX90,JZX90,91,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main48755-22030iJZX90..TOUS,TOUV199210-199609

main48755-22040iJZX93199310-199609

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90179-12140iGX90,JZX9#,LX90,SX90199607-199609

main94187-11200iGX90,JZX9#,LX90,SX90199210-199606

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-22030iGX90,SX90;LX90..MTM; JZX90,LX90..ATM..(SC,SLT,SUF,TOUS); JZX93;JZX90,91..SLTG,TOUV199210-199409

main48770-22040iGX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS199210-199409

48770ENUT, NO.1(FOR REAR UPPER CONTROL ARM RH)

main90179-14015iGX90,JZX9#,LX90,SX90199210-199609

48770GNUT, NO.2(FOR REAR UPPER CONTROL ARM RH)

main90170-12035×2iGX90,JZX9#,LX90,SX90199210-199606

main90170-12042×2iGX90,JZX9#,LX90,SX90199607-199609

48770HBOLT(FOR REAR UPPER CONTROL ARM RH)

main90105-12253×2iGX90,JZX9#,LX90,SX90199210-199606

main90105-12290×2iGX90,JZX9#,LX90,SX90199607-199609

48780AROD ASSY, STRUT, REAR

main48780-22030×2iGX90,JZX9#,LX90,SX90..SC,SLT,SLTG,SUF199210-199609

main48780-22040×2iJZX90..TOUS,TOUV199210-199609

48780BBOLT(FOR STRUT ROD)

main90105-12252×2iGX90,JZX9#,LX90,SX90199210-199606

main90105-12289×2iGX90,JZX9#,LX90,SX90199607-199609

main90119-14035×2iGX90,JZX9#,LX90,SX90199210-199609

48780CNUT(FOR STRUT ROD)

main90170-12035×2iGX90,JZX9#,LX90,SX90199210-199606

main90170-12042×2iGX90,JZX9#,LX90,SX90199607-199609

main90179-14058×2iGX90,JZX9#,LX90,SX90199210-199609

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-22030iGX90,SX90;LX90..MTM; JZX90,LX90..ATM..(SC,SLT,SUF,TOUS); JZX93;JZX90,91..SLTG,TOUV199210-199409

main48790-22040iGX90,JZX90,LX90,SX90..SC,SLT,SUF,TOUS199210-199409

48790ANUT, NO.1(FOR REAR UPPER CONTROL ARM LH)

main90179-14015iGX90,JZX9#,LX90,SX90199210-199609

48790BBOLT(FOR REAR UPPER CONTROL ARM LH)

main90105-12253×2iGX90,JZX9#,LX90,SX90199210-199606

main90105-12290×2iGX90,JZX9#,LX90,SX90199607-199609

48790CNUT, NO.2(FOR REAR UPPER CONTROL ARM LH)

main90170-12035×2iGX90,JZX9#,LX90,SX90199210-199606

main90170-12042×2iGX90,JZX9#,LX90,SX90199607-199609

48812BAR, STABILIZER, REAR

main48812-22270iJZX90..TOUS,TOUV199210-199609

48815RBUSH, STABILIZER(FOR REAR)

main48815-22140×2iJZX90..TOUS,TOUV199210-199609

48830LINK ASSY, REAR STABILIZER

main48830-22040×2iJZX90..TOUS,TOUV199210-199509

main48830-22041×2iJZX90..TOUS,TOUV199509-199609

48830ANUT(FOR REAR STABILIZER LINK)

main90179-12052×4iJZX90..TOUS,TOUV199210-199609

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48824-14060×2iJZX90..TOUS,TOUV199210-199609

9011908588

main90119-08588

9011914049

main90119-14049

9017908087

main90179-08087

9017914058

main90179-14058

9020112071

main90201-12071

9095001273

main90950-01273

9411040800

main94110-40800

58 parts on this diagram · 1 diagram in section
