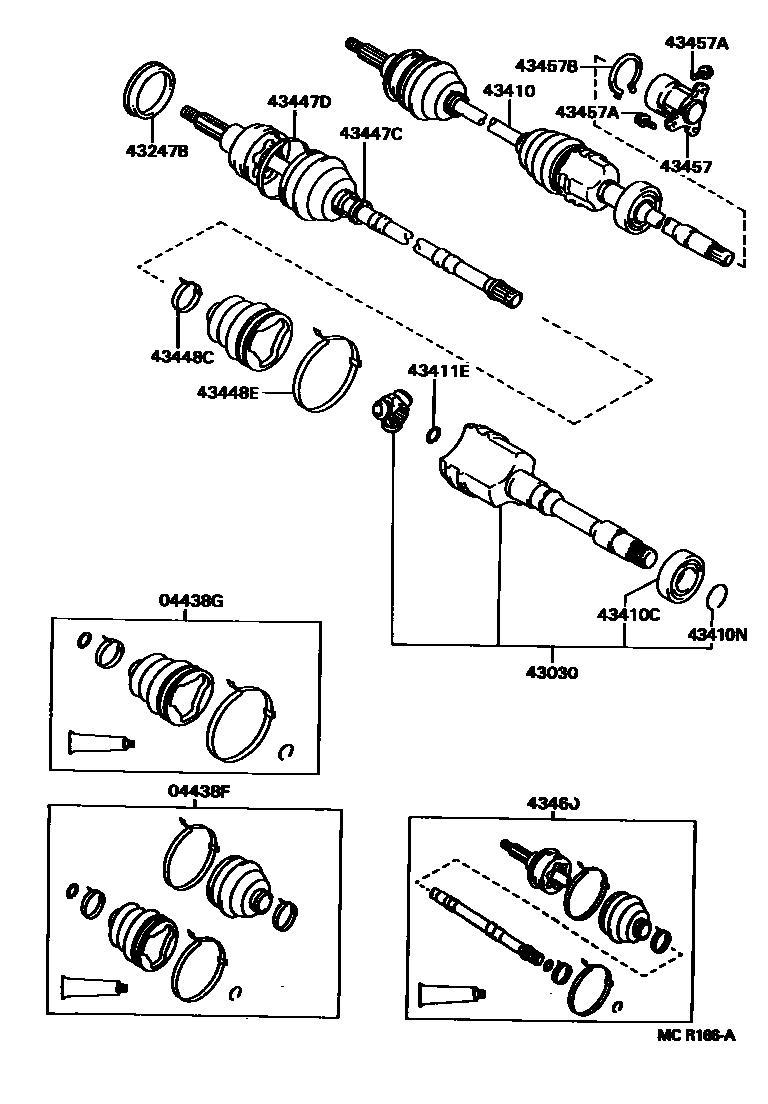

FRONT DRIVE SHAFT

0001 1RH 0002 1LH

04438FBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH

main04438-22010iJZX93199310-199609

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-10070iJZX93199310-199609

sub04438-30050

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-22010iJZX93199310-199609

43247BDEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2

main43247-12010iJZX93199310-199609

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-22010iJZX93199310-199609

sub43410-22011

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90369-36001iJZX93199310-199609

sub90363-36001

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iJZX93199310-199609

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main90520-20065iJZX93199310-199609

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22030iJZX93199310-199609

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-22040iJZX93199310-199609

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01804iJZX93199310-199609

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main90949-01803iJZX93199310-199609

43457BRACKET, DRIVE SHAFT BEARING

main43044-22010iJZX93199310-199609

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-10392×3iJZX93199310-199609

main90901-19023iJZX93199310-199609

sub90901-19060

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90520-65002iJZX93199310-199609

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-29425iJZX93199310-199609

sub43470-80322

16 parts on this diagram · 2 diagrams in section
