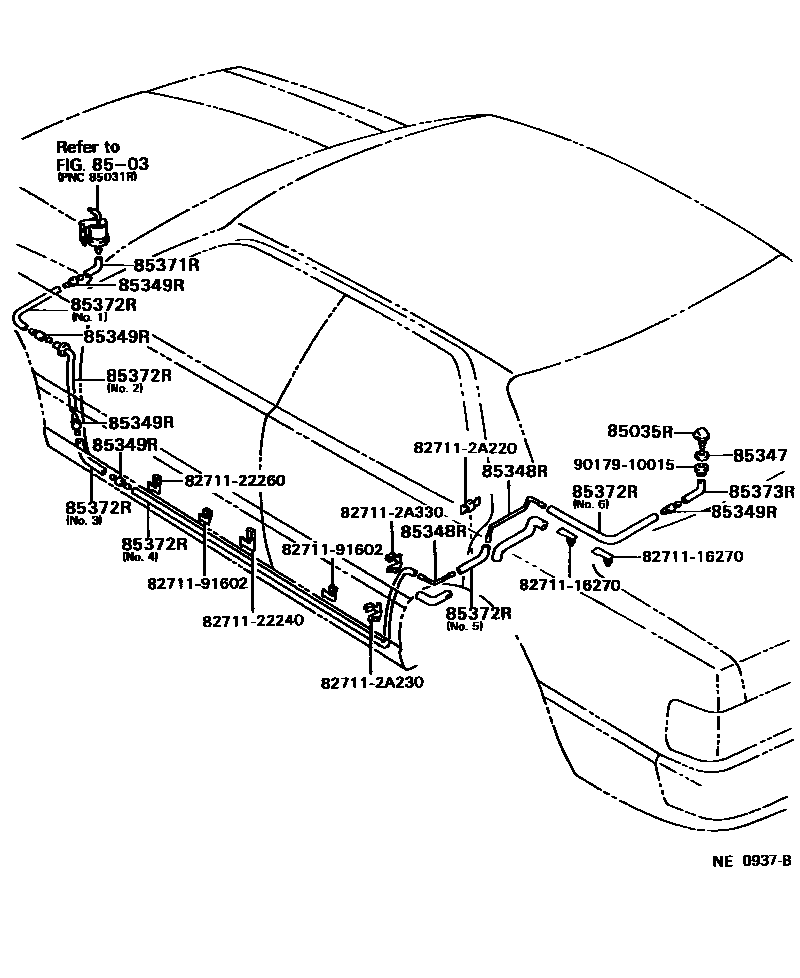

REAR WASHER

8503

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-22240iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

sub85035-12370

85347PACKING, REAR WASHER

main85347-12010iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

main85347-12010iLX80,SX80..SCM..(HTWC,TD)199111-199210

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-22240iLX80,SX80..SCM..(HTWC,TD)199111-199210

main85349-22240iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

ROOF SIDE INNER

main85355-22260iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

REAR WHEEL HOUSE

main85355-22260iLX80,SX80..SCM..(HTWC,TD)199111-199210

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-89122iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

main85349-89122iLX80,SX80..SCM..(HTWC,TD)199111-199210

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

main90099-33299iLX80,SX80..SCM..(HTWC,TD)199111-199210

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

main90099-33080iLX80,SX80..SCM..(HTWC,TD)199111-199210

main90099-33639iLX80,SX80..SCM..(HTWC,TD)199111-199210

sub90099-33589

main90099-33639iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

sub90099-33589

main90446-07001iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

main90446-07001iLX80,SX80..SCM..(HTWC,TD)199111-199210

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iGX81,JZX81,MX83..GT,SLT,SLTG198808-199210

8271116270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16270

8271122240WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22240

8271122260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22260

827112A220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A220

827112A230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A230

827112A330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A330

8271191602WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-91602

9017910015

main90179-10015

16 parts on this diagram · 1 diagram in section
