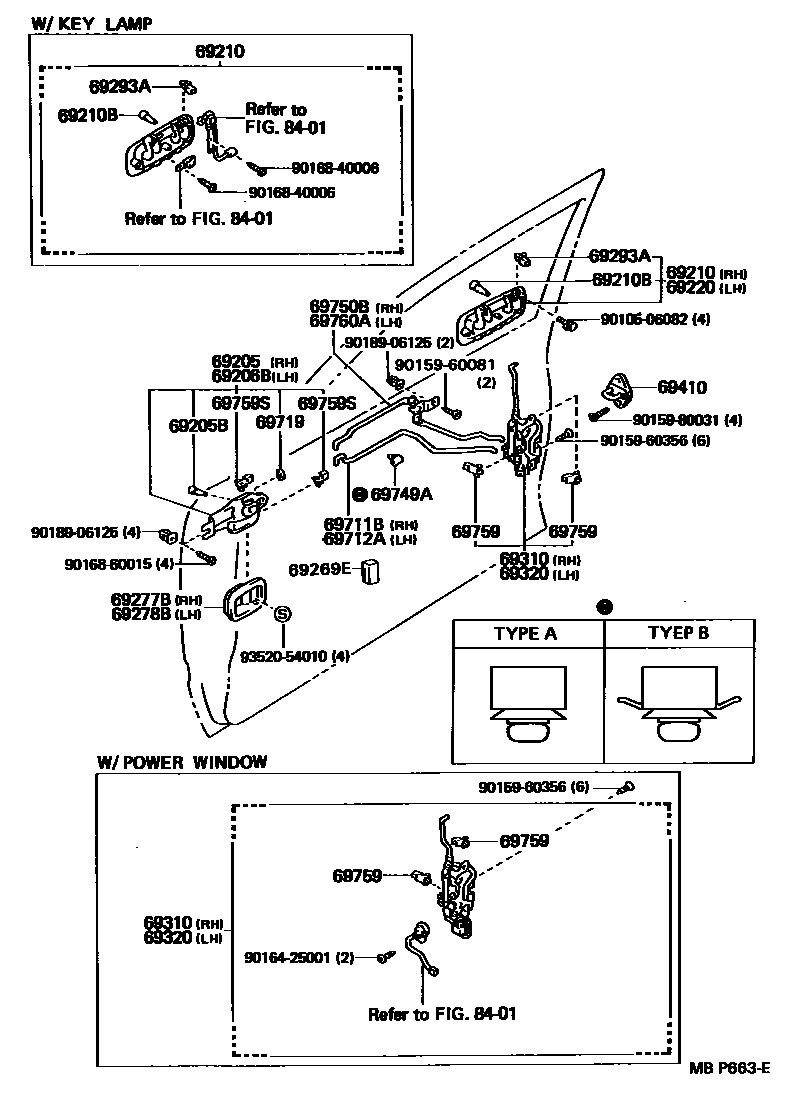

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-22040-02iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

NEW MAROON,TRIM3#

main69205-22040-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main69205-22040-06iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

SABLE,TRIM4#

main69205-22050-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199012

NEW MAROON,TRIM3#

sub69205-22060

main69205-22050-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199012

MEDIUM GRAY,TRIM1#

sub69205-22060

main69205-22050-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199012

SABLE,TRIM4#

sub69205-22060

main69205-22060-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199012-199210

NEW MAROON,TRIM3#

sub69205-22060

main69205-22060-03iGX81,JZX81,LX80,MX83,SX80,YX80199012-199210

MEDIUM GRAY,TRIM1#

sub69205-22060

main69205-22060-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199012-199210

SABLE,TRIM4#

sub69205-22060

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04018iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

OD=8.5

main90541-04018iGX81,LX80,MX83,SX80,YX80198808-199008

main90541-04020iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-22040-02iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

NEW MAROON,TRIM3#

main69206-22040-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main69206-22040-06iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

SABLE,TRIM4#

main69206-22050-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199012

NEW MAROON,TRIM3#

sub69206-22060

main69206-22050-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199012

MEDIUM GRAY,TRIM1#

sub69206-22060

main69206-22050-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199012

SABLE,TRIM4#

sub69206-22060

main69206-22060-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199012-199210

NEW MAROON,TRIM3#

sub69206-22060

main69206-22060-03iGX81,JZX81,LX80,MX83,SX80,YX80199012-199210

MEDIUM GRAY,TRIM1#

sub69206-22060

main69206-22060-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199012-199210

SABLE,TRIM4#

sub69206-22060

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-22120iGX81,LX80,SX80,YX80..KYO,SCM,SDX198808-199210

main69210-22130iGX81,JZX81..GT,SLT198808-199210

main69210-22150-18iLX80..SCM..TD199007-199008

main69210-22160-01iJZX81,MX83..SLTG199008-199210

BLACK M,24S

sub69210-22150

main69210-22160-03iGX81..SLT198910-199008

sub69210-22150

main69210-22160-03iGX81,MX83..SLTG198808-199008

GRAY MICA M.,170

sub69210-22150

main69210-22160-04iGX81..SLT198910-199008

sub69210-22150

main69210-22160-04iGX81,MX83..SLTG198903-199008

BLUE MICA,8E3

sub69210-22150

main69210-22160-06iJZX81,MX83..SLTG199008-199210

BEIGE M,4J1

sub69210-22150

main69210-22160-07iJZX81,MX83..SLTG199008-199210

DARK GRAYISH GREEN M,6L8

sub69210-22150

main69210-22160-08iGX81..4FC..SLT..HTWC199004-199008

sub69210-22150

main69210-22160-08iGX81..SLT198910-199008

sub69210-22150

main69210-22160-08iGX81..SLT..HTWC199109-199110

sub69210-22150

main69210-22160-08iGX81,JZX81,MX83..SLTG198908-199210

WHITE PEARL MICA,049 ,27N

sub69210-22150

main69210-22160-08iJZX81..SLT199105-199210

sub69210-22150

main69210-22160-08iGX81..4FC..SLT..HTWC199112-199210

sub69210-22150

main69210-22160-08iJZX81..SLT199205-199210

sub69210-22150

main69210-22160-08iGX81..SPC198808-198908

WHITE PEARL MICA,049 ,23K

sub69210-22150

main69210-22160-13iGX81,MX83..SLTG198908-199008

GREENISH SILVER M.,174

sub69210-22150

main69210-22160-13iGX81..SLT198910-199008

sub69210-22150

main69210-22160-18iGX81,JZX81,MX83..SLTG198808-199210

SUPER WHITE 4,050

sub69210-22150

main69210-22160-18iGX81..4FC..SLT..HTWC199205-199210

sub69210-22150

main69210-22160-18iGX81..4FC..SLT..HTWC199112-199210

sub69210-22150

main69210-22160-18iLX80,SX80..SCM..(HTWC,TD)199111-199210

sub69210-22150

main69210-22160-18iGX81..SLT..HTWC198910-199210

sub69210-22150

main69210-22160-23iGX81..SLT198910-199008

sub69210-22150

main69210-22160-23iGX81,JZX81,MX83..SLTG198908-199210

DARK BLUEISH GRAY,183

sub69210-22150

main69210-22160-24iJZX81,MX83..SLTG199008-199210

BLUE M,869

sub69210-22150

main69210-22160-43iJZX81,MX83..SLTG199008-199210

BLUISH GRAY M,182

sub69210-22150

main69210-22160-53iJZX81,MX83..SLTG199008-199210

DARK MAUVE MICA,3K1

sub69210-22150

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-22110iGX81,JZX81,LX80,SX80,YX80..GT,KYO,SCM,SDX,SLT198808-199210

main69220-22150-01iJZX81,MX83..SLTG199008-199210

BLACK M,24S

main69220-22150-03iGX81,MX83..SLTG198808-199008

GRAY MICA M.,170

main69220-22150-03iGX81..SLT198910-199008

main69220-22150-04iGX81..SLT198910-199008

main69220-22150-04iGX81,MX83..SLTG198903-199008

BLUE MICA,8E3

main69220-22150-06iJZX81,MX83..SLTG199008-199210

BEIGE M,4J1

main69220-22150-07iJZX81,MX83..SLTG199008-199210

DARK GRAYISH GREEN M,6L8

main69220-22150-08iGX81..4FC..SLT..HTWC199004-199008

main69220-22150-08iGX81..SPC198808-198908

WHITE PEARL MICA,049 ,23K

main69220-22150-08iGX81..SLT198910-199008

main69220-22150-08iGX81..SLT..HTWC199109-199110

main69220-22150-08iGX81,JZX81,MX83..SLTG198908-199210

WHITE PEARL MICA,049 ,27N

main69220-22150-08iJZX81..SLT199105-199210

main69220-22150-08iGX81..4FC..SLT..HTWC199112-199210

main69220-22150-08iJZX81..SLT199205-199210

main69220-22150-13iGX81,MX83..SLTG198908-199008

GREENISH SILVER M.,174

main69220-22150-13iGX81..SLT198910-199008

main69220-22150-18iGX81..4FC..SLT..HTWC199205-199210

main69220-22150-18iLX80..SCM..TD199007-199008

main69220-22150-18iGX81..4FC..SLT..HTWC199112-199210

main69220-22150-18iGX81,JZX81,MX83..SLTG198808-199210

SUPER WHITE 4,050

main69220-22150-18iLX80,SX80..SCM..(HTWC,TD)199111-199210

main69220-22150-18iGX81..SLT..HTWC198910-199210

main69220-22150-23iGX81,JZX81,MX83..SLTG198908-199210

DARK BLUEISH GRAY,183

main69220-22150-23iGX81..SLT198910-199008

main69220-22150-24iJZX81,MX83..SLTG199008-199210

BLUE M,869

main69220-22150-43iJZX81,MX83..SLTG199008-199210

BLUISH GRAY M,182

main69220-22150-53iJZX81,MX83..SLTG199008-199210

DARK MAUVE MICA,3K1

69269ESEAL, FRONT DOOR INSIDE HANDLE

main69269-22050iGX81,JZX81,LX80,MX83,SX80,YX80198912-199210

69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH

main69277-22060-02iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

NEW MAROON,TRIM3#

sub69277-22060

main69277-22060-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub69277-22060

main69277-22060-06iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

SABLE,TRIM4#

sub69277-22060

main69277-22070-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

NEW MAROON,TRIM3#

sub69277-22070

main69277-22070-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

sub69277-22070

main69277-22070-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

SABLE,TRIM4#

sub69277-22070

69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH

main69278-22020-02iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

NEW MAROON,TRIM3#

sub69278-22020

main69278-22020-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

sub69278-22020

main69278-22020-06iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

SABLE,TRIM4#

sub69278-22020

main69278-22030-02iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

NEW MAROON,TRIM3#

sub69278-22030

main69278-22030-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

MEDIUM GRAY,TRIM1#

sub69278-22030

main69278-22030-06iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

SABLE,TRIM4#

sub69278-22030

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main69293-12060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69310LOCK ASSY, FRONT DOOR, RH

main69030-23010iGX81,JZX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG199008-199210

main69030-91601iGX81,LX80,MX83,SX80..GT,SCM,SDX,SLT,SLTG198808-199008

main69310-23010iLX80,SX80,YX80..KYO199008-199210

main69310-91601iLX80,SX80,YX80..KYO198808-199008

69320LOCK ASSY, FRONT DOOR, LH

main69040-23010iGX81,LX80,SX80..SCM,SDX199008-199210

main69040-23020iGX81,JZX81,MX83..GT,SLT,SLTG199008-199210

main69040-23020iLX80,SX80..SCM..(HTWC,TD)199111-199210

main69040-91601iGX81,LX80,SX80..SCM,SDX198808-199008

main69040-91602iGX81,MX83..GT,SLT,SLTG198808-199008

main69320-23010iLX80,SX80,YX80..KYO199008-199210

main69320-91601iLX80,SX80,YX80..KYO198808-199008

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-20070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH

main69711-23010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main69711-91601iGX81,LX80,MX83,SX80,YX80198808-199008

69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH

main69712-23010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main69712-91601iGX81,LX80,MX83,SX80,YX80198808-199008

69719CUSHION, DOOR LOCK CONTROL

main69719-22010iGX81,LX80,MX83,SX80,YX80198808-199008

69749ACLAMP, FRONT DOOR LOCK LINK, NO.1

main69749-20030iGX81,LX80,MX83,SX80,YX80198808-199008

main69749-20030iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main69749-50010iGX81,JZX81,LX80,MX83,SX80,YX80199009-199210

69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-23010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main69750-91601iGX81,LX80,MX83,SX80,YX80198808-199008

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-22080iGX81..GT,SLT,SLTG198908-199008

main69759-22080iMX83198908-199008

main69759-22090iMX83198908-199008

main69759-22090iMX83198908-199008

main69759-24050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

GREEN

main69759-24060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

GRAY

69759SSNAP, FRONT DOOR INSIDE HANDLE

main69759-14050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

main69759-24070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199210

69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH

main69760-23010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199210

main69760-91604iGX81,LX80,MX83,SX80,YX80198808-199008

8401

9010506082

main90105-06082

9015960081

main90159-60081

9015960356

main90159-60356

9015980031

main90159-80031

9016425001

main90164-25001

9016840006

main90168-40006

9016860015

main90168-60015

9018906125

main90189-06125

9352054010

main93520-54010

31 parts on this diagram · 1 diagram in section
