V-BELT

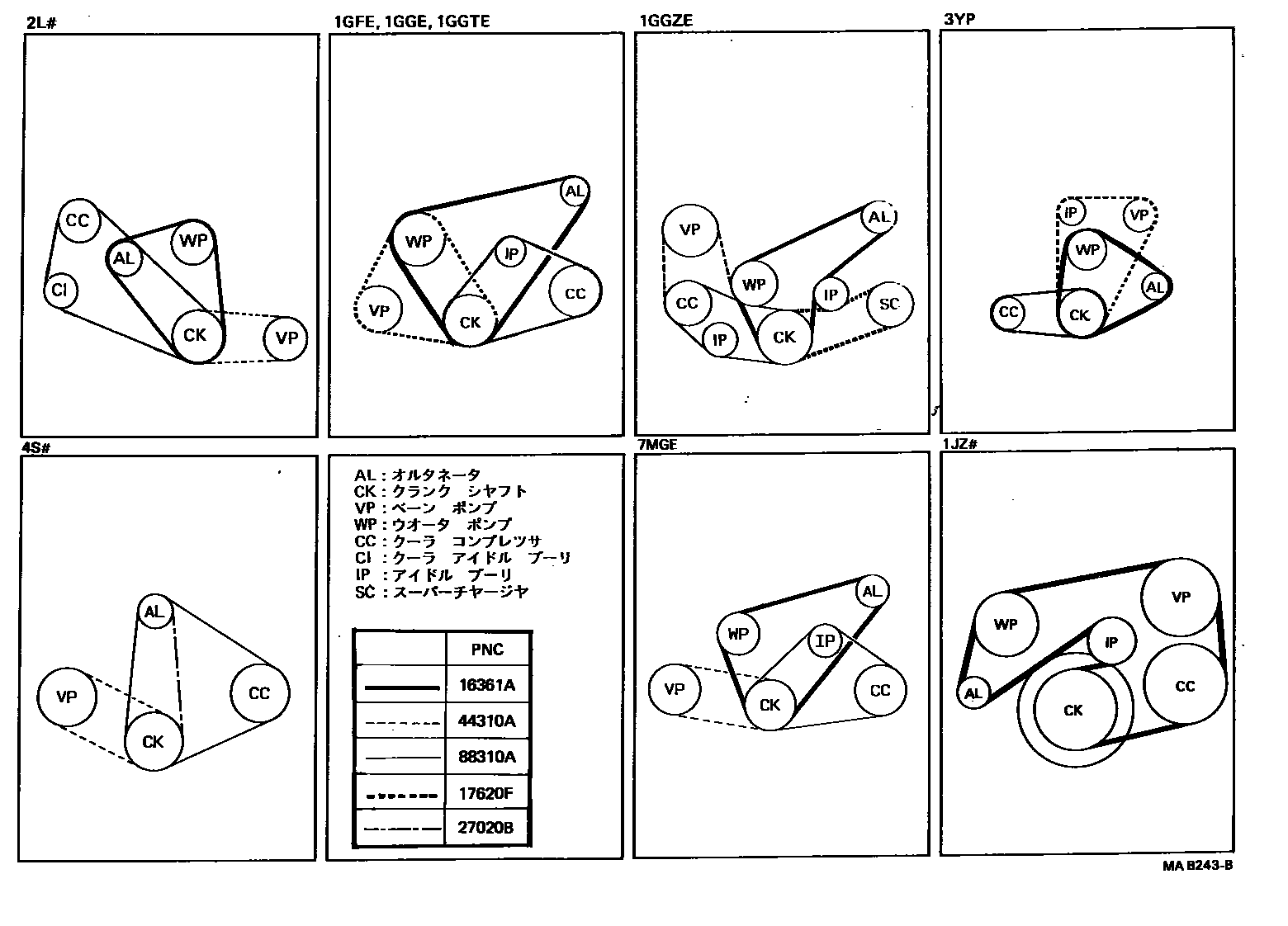

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02146i198808-199008

main90916-02209i198808-199210

main90916-02211i198808-199210

main90916-02305i199110-199210

main90916-02306i199008-199110

main90916-02308i199008-199210

main99364-01080i198808-199101

main99364-21080i199101-199210

main99364-51160i198808-199210

main99364-51170i198808-199008

main99364-51200i198808-199008

main99365-01290i198908-199110

main99365-21290i199110-199210

main99365-50820i198808-199011

main99365-70820i199011-199210

17620FBELT, V(FOR SUPERCHARGER)

main90916-02147i198808-199008

27020BBELT, V(FOR ALTERNATOR)

main90916-02216i198808-198909

main90916-02219i198808-198909

main90916-02293i198909-199206

main90916-02295i198909-199206

main90916-02355i199206-199210

main90916-02356i199206-199210

main90916-02357i199206-199210

main90916-02358i199206-199210

44310ABELT, V(FOR VANE PUMP)

main90916-02200i198908-199210

main90916-02229i198808-199008

main99332-00830i198808-199210

main99332-01055i198808-199012

main99332-11055i199012-199210

main99363-00750i198808-199210

main99363-00890i199008-199210

main99363-00900i198808-199008

main99363-00950i198808-199210

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02221i198808-199008

main90916-02223i198808-199008

main90916-02348i199102-199210

main90916-02349i199102-199210

main99322-00880i198808-199210

main99322-01220i198808-199210

main99322-01230i199008-199210

main99364-00920i198903-199008

main99364-00970i198908-199008

main99364-20970i199102-199210

main99364-70970i199102-199210

main99365-21110i199102-199210

main99365-51110i199102-199210

main99365-71110i199102-199210

5 parts on this diagram · 1 diagram in section
